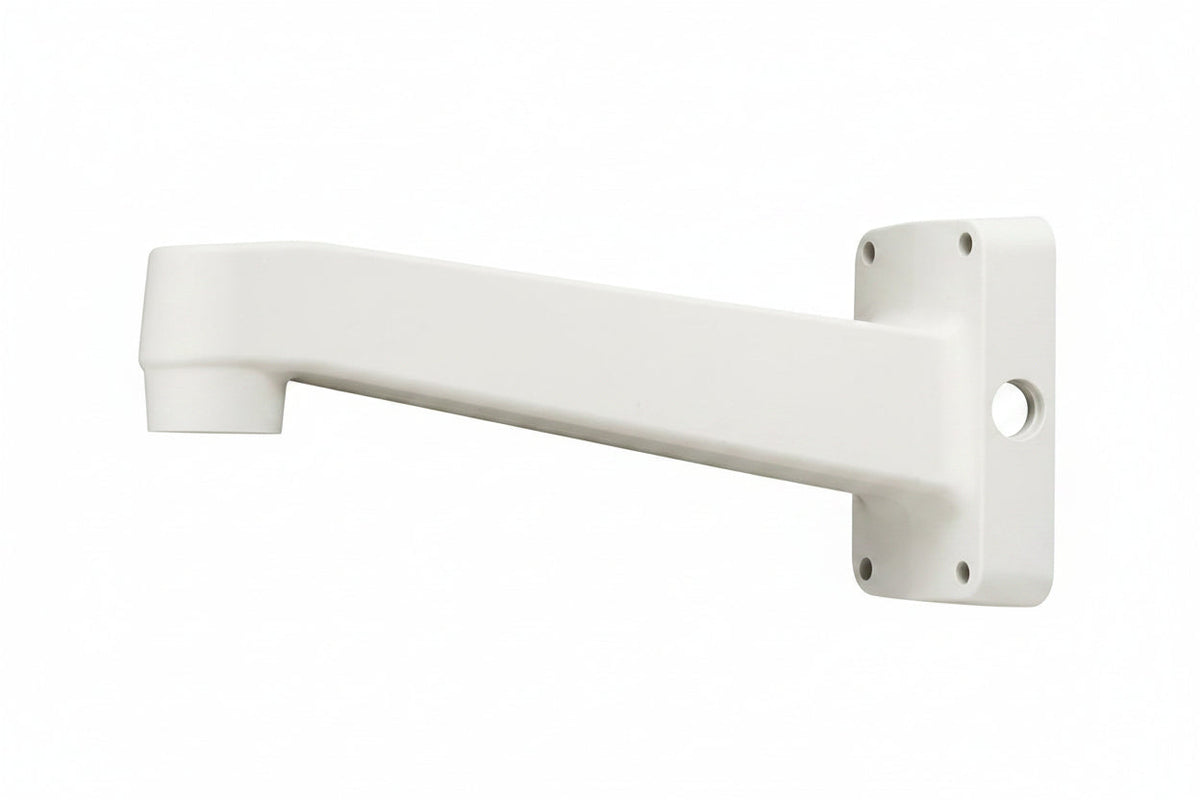

Hanwha SBP-390WM2 Long Wall-Mount Arm for Select SBP, PNM and HCM Series Cameras, 4.5"W 7.2"H 16.4"D, White

The Hanwha SBP-390WM2 is a long aluminum wall-mount arm with conduit access, built to hold network cameras from the compatible SBP, PNM and HCM series. It suits installers who need to mount a camera on a wall and route cabling through the arm. It can also be used on a pole or corner with compatible accessories, and it is NDAA compliant.

Key features

• The arm is made of aluminum and weighs 3.95 lb.
• It can be installed directly on a wall using M10 anchor bolts (nuts).
• Conduit access lets cabling run through the mount.
• It is rated for operation from -50°C to 60°C and 0 to 100% humidity.
• Pole and corner mounting is possible with compatible accessories.

Specifications

Brand: Hanwha

Model: SBP-390WM2

Product type: Wall mount

Device supported: Network camera

Compatibility: SBP-329HM

Material: Aluminum

Color: White

Width: 4.50″

Height: 7.20″

Depth: 16.40″

Weight: 3.95 lb

Mount screw size: PF 1 1/2″

Operating temperature: -50°C to 60°C

Operating humidity: 0 to 100%

NDAA compliant: Yes

Country of origin: VN

Installation notes

Confirm the wall surface can carry the arm and camera before drilling, and use the specified M10 anchor bolts. Plan the cable path through the conduit access ahead of time so the run is clean and the camera connections are protected.
