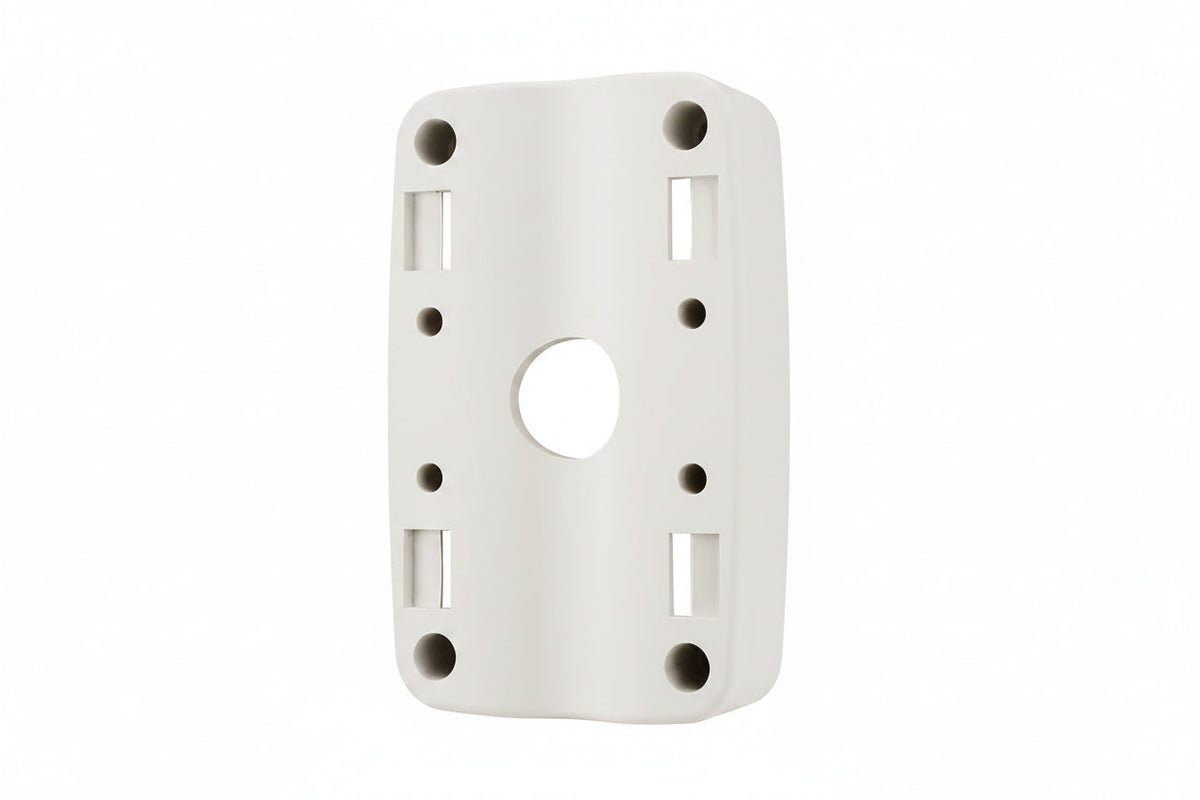

Hanwha SBP-300PM1 Pole Mount Base for XNV-6120R, Ivory

The Hanwha SBP-300PM1 is an ivory aluminum pole mount base made for the Hanwha XNV-6120R network IR dome camera. It lets installers put that camera on a pole, and it suits commercial and residential jobs where a wall isn't the right mounting surface. The aluminum build weighs 760g (1.68 lbs) and measures 185 x 115 x 40 mm.

Key features

• Mounts a network camera on a pole.
• Made for the Hanwha XNV-6120R network IR dome camera.
• Aluminum construction.
• Ivory finish.
• Compact footprint of 185(W) x 115(D) x 40(H) mm (7.28″ x 4.53″ x 1.57″).
• Works with Hanwha wall mounts SBP-300WM, SBP-300WM1 and SBP-390WM2.

Specifications

Brand: Hanwha

Model: SBP-300PM1

Product Type: Mount Base

Application/Usage: Pole

Device Supported: Network Camera

Material: Aluminum

Color: Ivory

Width: 7.28″

Height: 4.53″

Depth: 1.57″

Weight: 1.65 lb

Compatibility: Hanwha Techwin XNV-6120R Network IR Dome Camera; Hanwha Techwin Wall Mount SBP-300WM, SBP-300WM1, SBP-390WM2

Country of Origin: VN

Installation notes

Confirm the pole is sturdy enough to carry the mount and camera before drilling or clamping anything. Plan the cable route from the camera through the base ahead of time so the cabling stays protected from the weather.
