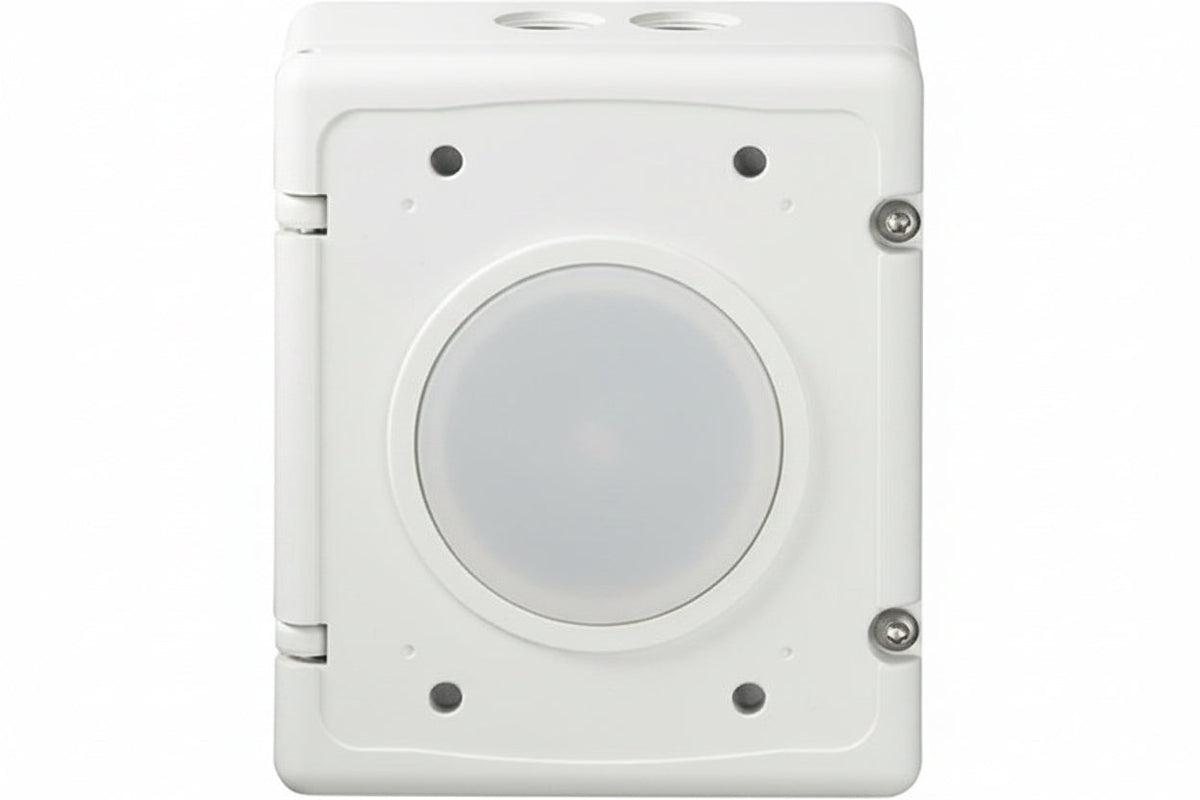

Hanwha SBP-300NB Installation Box for Select PTZ and Bullet Cameras, White

The Hanwha SBP-300NB is an ivory installation box that gives a Hanwha camera mount a protected place for its connections. Built from steel, aluminum and silicon with IP66 protection, it suits installers and businesses placing cameras where weather exposure is a concern. It is NDAA compliant and easy to locate, and it can be mounted at varying heights.

Key features

• Rated IP66 for protection against dust and water.
• Can be mounted at varying heights and is easy to locate.
• Finished in ivory to blend with the look of the surrounding space.
• Made from steel, aluminum and silicon.
• Measures 185 x 221 x 94.3mm (W x H x D).

Specifications

Brand: Hanwha

Model: SBP-300NB

Product Type: Installation box

Color: Ivory

Material: Steel, Aluminum, Silicon

Dimensions (W x H x D): 185 x 221 x 94.3mm

Height: 8.70″

Depth: 3.71″

Ingress Protection: IP66

Compatibility: Samsung Techwin network cameras: SBP-300WM, SBP-300WM1, SBP-300KM, SBP-300PM

NDAA Compliant: Yes

TAA Compliant: No

Country of Origin: CN

Installation notes

Confirm the mounting location and height before drilling, and check that the box and its mount model match the compatibility list. Seal any cable entries carefully so the IP66 protection is not compromised.
