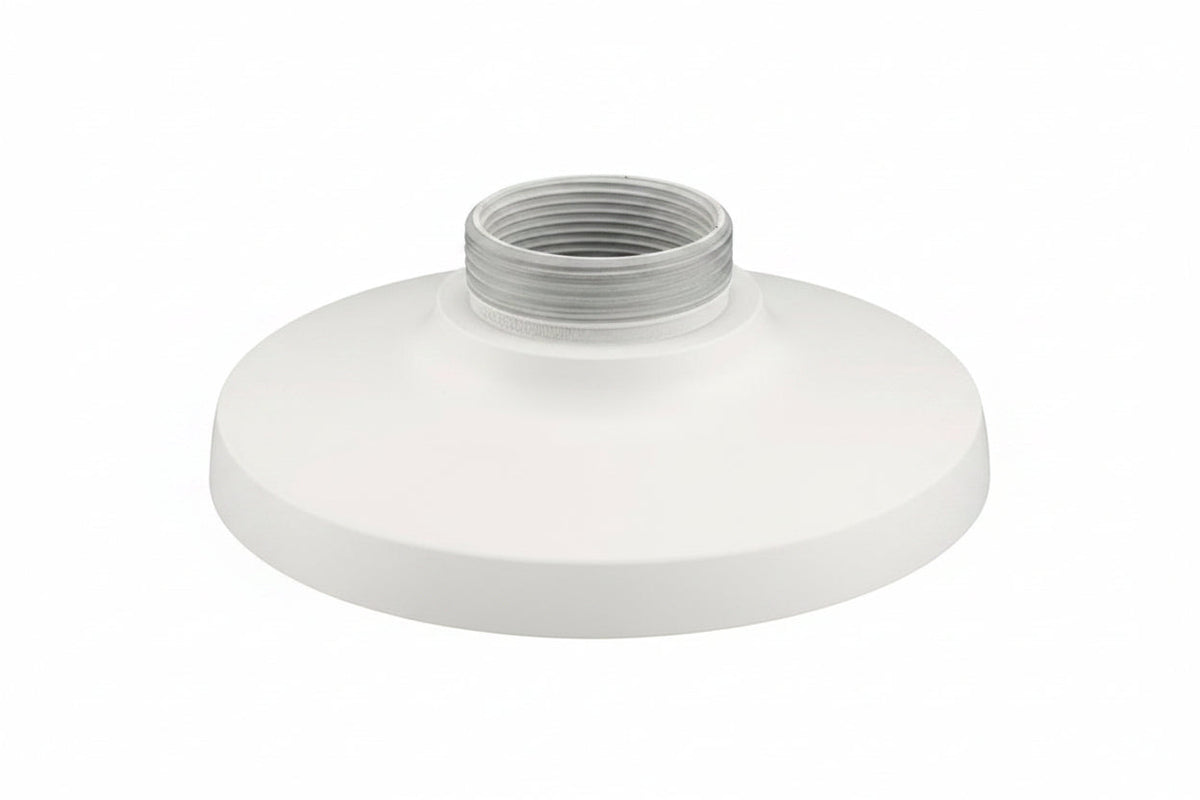

Hanwha SBP-300HMW7 Mounting Adapter for Select QND and XNV Series Cameras, White

The Hanwha SBP-300HMW7 is a white aluminum hanging mount adapter that lets you install compatible Hanwha cameras on a Wall Mount Adapter (SBP-300WMW1) or Ceiling Mount Adaptor (SBP-300CMW). It suits installers and businesses fitting select QND and XNV series cameras. It weighs just 145g and is rated for -50°C to 60°C and 0 to 100% humidity.

Key features

• Aluminum construction keeps the adapter light at 145g.
• Connects cameras to the SBP-300WMW1 wall mount adapter or the SBP-300CMW ceiling mount adaptor.
• Uses a PF 1 1/2″ male mount thread.
• Operates from -50°C to 60°C.
• Handles 0 to 100% operating humidity.
• White finish.

Specifications

Model: SBP-300HMW7

Brand: Hanwha

Product type: Mounting Adapter

Device supported: Camera Mount

Color: White

Material: Aluminum

Mount thread size: PF 1 1/2″ Male

Weight: 145g (0.32 lb)

Operating temperature: -50°C to 60°C

Operating humidity: 0 to 100%

NDAA compliant: Yes

Country of origin: CN

Compatibility: XNV-6011W, QND-8010R, QND-8020R, QND-8030R, QND-6012R, QND-6022R, QND-6032R; mounts SBP-300WM, SBP-300WM1, SBP-300CM, SBP-300LM

Installation notes

Confirm your camera model and mount are on the compatibility list before you order, then secure the adapter to the wall or ceiling mount before attaching the camera. Make sure the threaded connection is fully seated and the cable path is clear before final placement.
