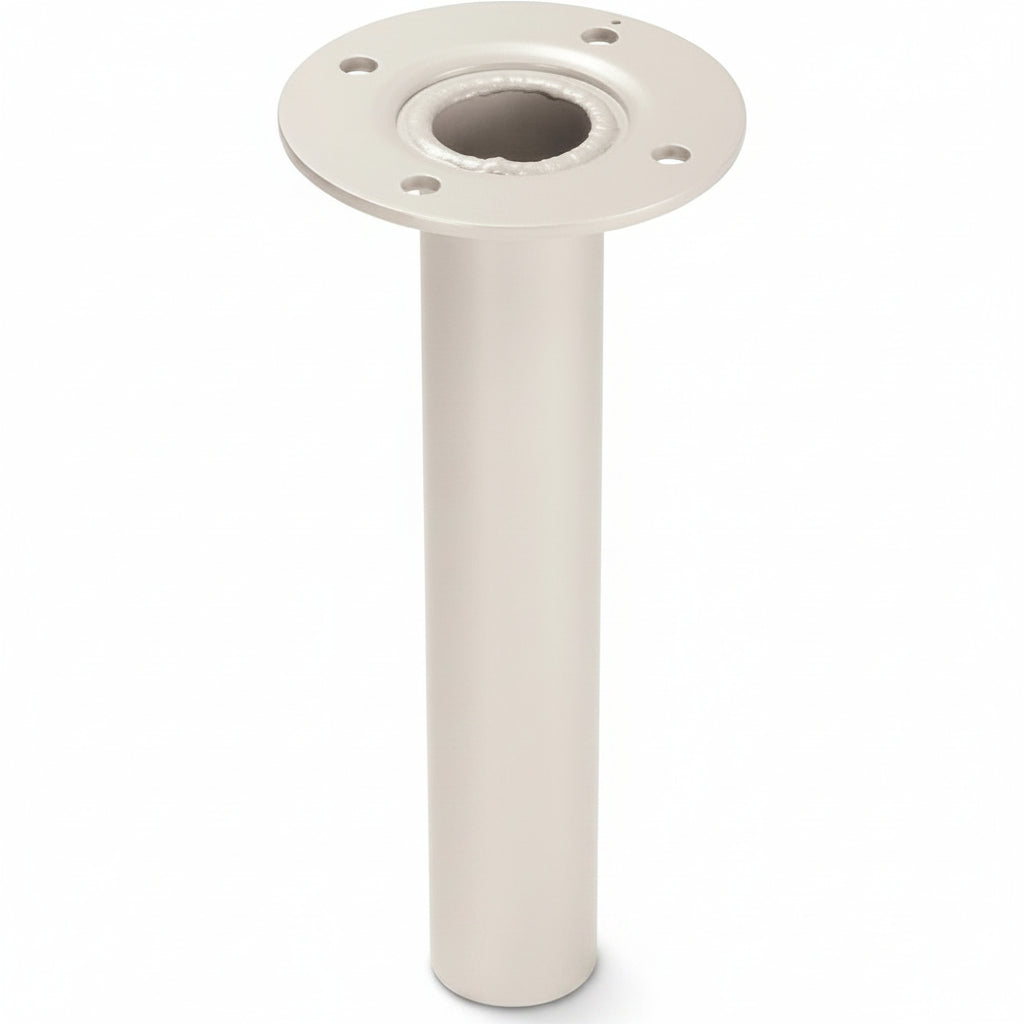

Hanwha SBP-300CM Pendant Mount, White

The Hanwha SBP-300CM is a white aluminum pendant mount pipe that suspends a surveillance camera from a ceiling or hanging mount. It suits installers and businesses fitting network or analog dome cameras, and it also works with outdoor PTZ cameras. It is NDAA compliant and made of aluminum and SECC, with a 12.00″ length.

Key features

• Works with dome cameras, both network and analog types.
• Can be used with a hanging mount and with outdoor PTZ cameras.
• Built from aluminum and SECC.
• Uses a PF 1 1/2″ mount screw size.
• Listed as compatible with the Samsung SBP-37 1.5-inch coupling adapter and the SBP-300HM1 hanging mount adapter.

Specifications

Brand: Hanwha

Model: SBP-300CM

Product Type: Mounting Pipe

Device Supported: Surveillance Camera

Color: White

Material: Aluminum

Diameter: 5.10″

Length: 12.00″

Mount Screw Size: PF 1 1/2″

NDAA Compliant: Yes

Country of Origin: CN

Compatibility: Samsung SBP-37 1.5-Inch Coupling Adapter; Samsung SBP-300HM1 Hanging Mount Adapter; Samsung PTZ cameras SCP-3430H, SCP-2430H, SCP-3250H, SCP-2250H, SCP-3120VH, SNP-3120VH, SCC-C7437, SCC-C7439, SCC-C7453, SCC-C7455

Installation notes

Fasten the mount to a structural ceiling member or a rated anchor point, and confirm the pipe thread engages fully before hanging the camera. Route and seal the camera cabling through the pipe, leaving enough slack for service and commissioning.
