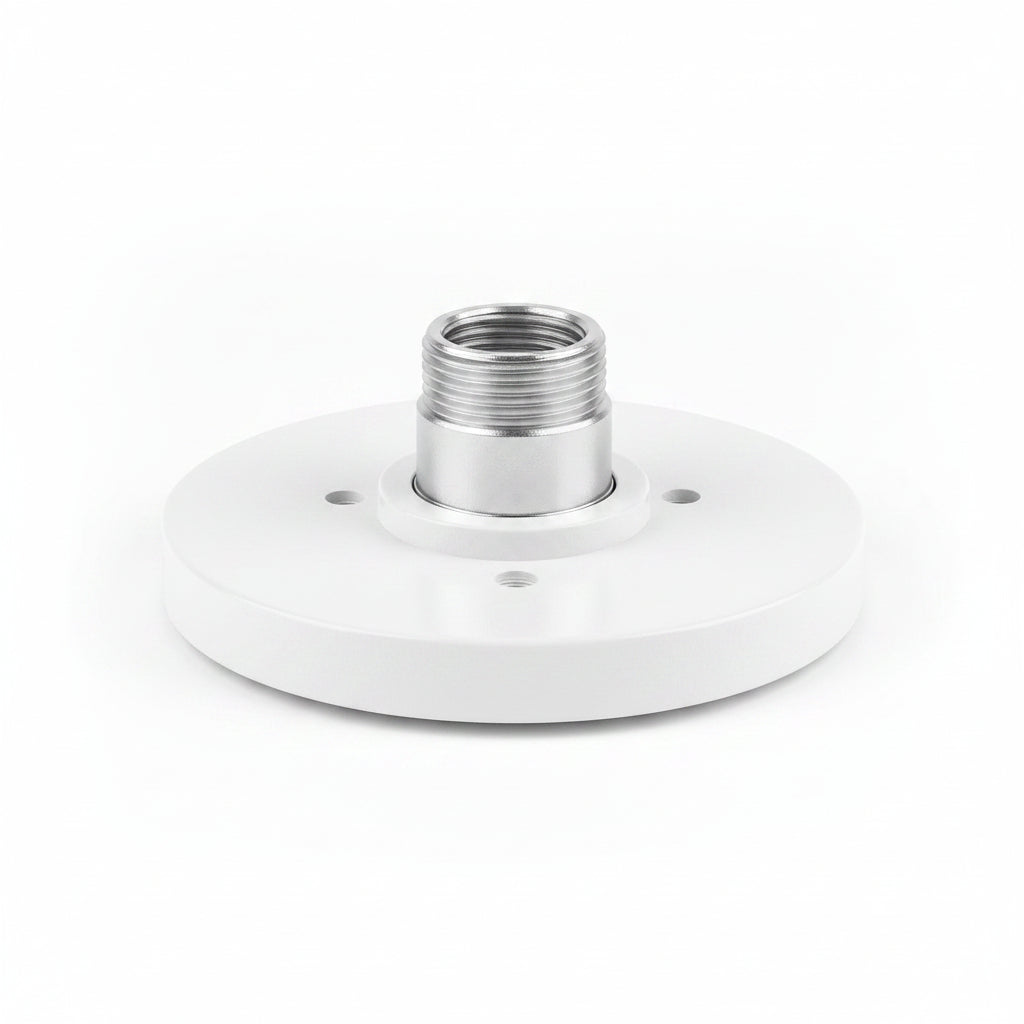

Hanwha SBP-180HMW1 Pendant Cap Compatible with XNV-8082R / 8093R

The Hanwha SBP-180HMW1 is a white aluminum pendant cap for Hanwha security cameras, listed here as compatible with the XNV-8082R and XNV-8093R. It suits installers who need to suspend one of these cameras from a pendant pipe, and it works as a replacement for the SBP-187HMW. The metal construction and standard pipe thread make it a straightforward part to specify.

Key features

• Listed as compatible with the Hanwha XNV-8082R and XNV-8093R cameras.
• Uses a PF 1-1/2″ male mount thread for connecting to the pendant pipe.
• Secures with TR20 mount screws.
• Made of aluminum with a white finish.
• Replaces the SBP-187HMW.

Specifications

Brand: Hanwha

Model: SBP-180HMW1

Product type: Security Camera Pendant Cap

Mount thread size: PF 1-1/2″ Male

Mount screw size: TR20

Material: Aluminum

Color: White

Vendor name: Hanwha Vision

Country of origin: VN

Installation notes

Have a TR20 driver on hand for the mount screws, and confirm the pendant pipe matches the PF 1-1/2″ thread before you hang the camera. Check that the cap is fully seated and tight before you let go of the camera's weight.
