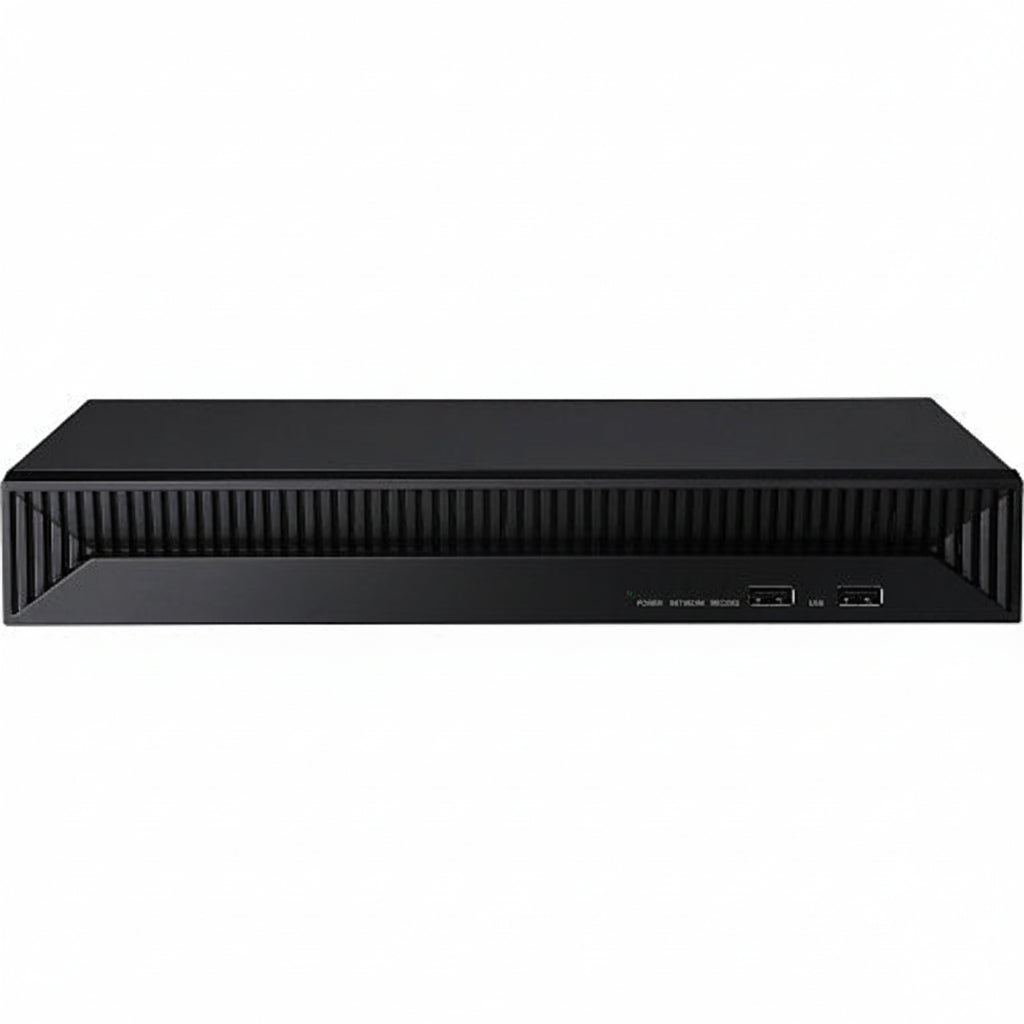

Hanwha QRN-830S 8-Channel PoE NVR, 65W, No HDD

The Hanwha QRN-830S is an 8-channel PoE network video recorder that records and manages IP camera footage for small commercial and residential systems. It powers cameras directly from its built-in PoE ports, so a small system can run without a separate switch. It supports up to 8MP cameras and 80 Mbps of recording bandwidth. The QRN830S ships without a hard drive, so you add your own.

Key features

• Records up to 8 channels, with cameras up to 8MP supported.
• Handles H.265, H.264 and MJPEG video codecs.
• Records network camera streams at up to 80 Mbps.
• Has 8 PoE ports (LAN, 10/100) and 1 PoE port (WAN, 1Gbps) for plug-and-play camera connections.
• Takes one SATA drive, up to 6TB.
• Supports ARB and P2P service with QR code connection.

Specifications

Model: QRN-830S

Brand: Hanwha Vision

Product Type: Video Surveillance Station

Number of Channels: 8

Maximum Resolution: 3264 x 2448

Maximum Frame Rate: 60fps

Bandwidth: 80Mbps

Video Formats: MJPEG

Recording Formats: H.264

Storage Capacity: 6TB

Hard Drive Capacity: 6TB

Connectivity Technology: Wired

Ethernet: Yes

HDMI: Yes

Remote Management: Yes

Power Consumption: 65W

Width: 11.80″

Height: 1.90″

Depth: 9.40″

Country of Origin: VN

Installation notes

Install a compatible SATA hard drive before commissioning, since the recorder does not include one. Run each camera directly to a PoE port with quality cabling, and leave airflow around the unit in a ventilated rack or shelf location.
