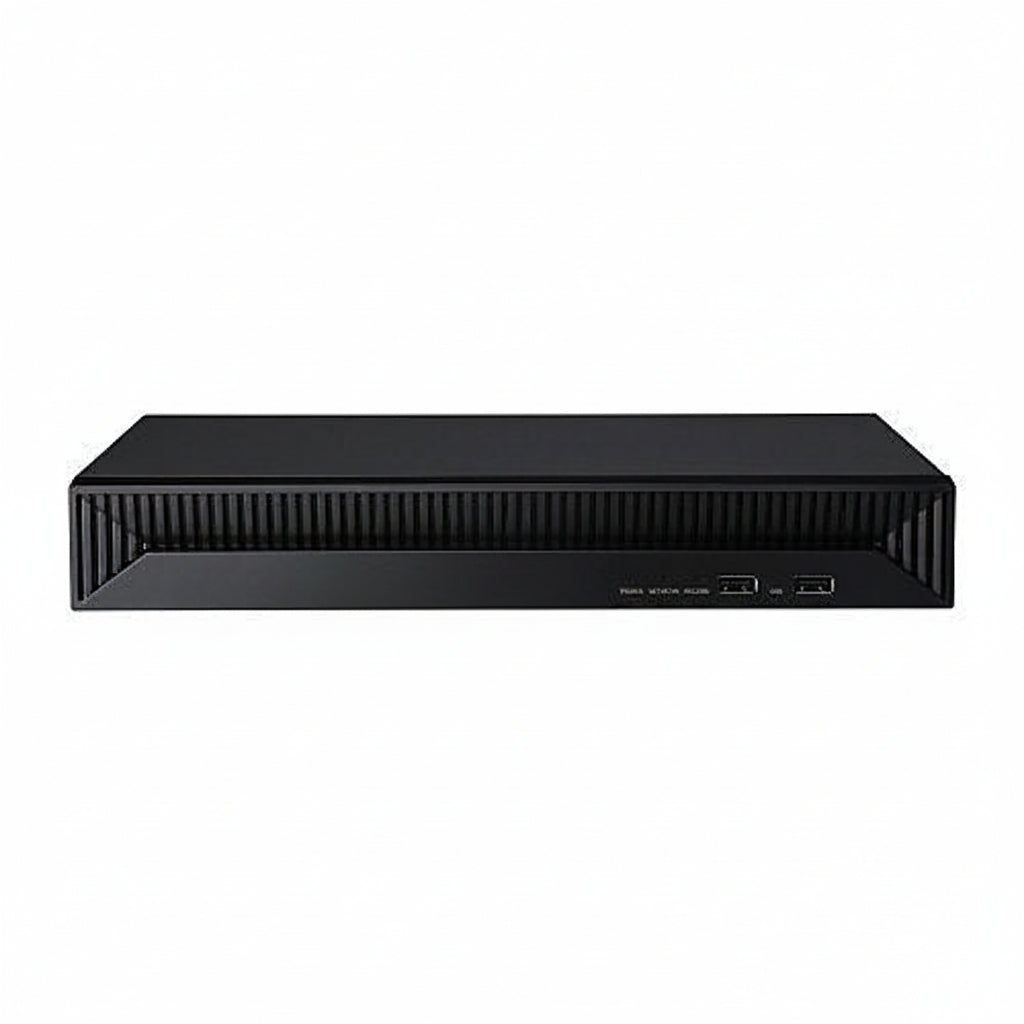

Hanwha QRN-830S-2TB 8-Channel PoE NVR, 65W, 2TB HDD

The Hanwha QRN-830S-2TB is an 8-channel network video recorder with built-in PoE ports and a 2TB hard drive, so cameras can plug straight into the recorder without a separate switch. It suits installers and small businesses setting up an 8-camera system. It records up to 8MP cameras at 80 Mbps and supports P2P connection by QR code for remote viewing.

Key features

• Supports up to 8 cameras at up to 8MP resolution.
• Records in H.265, H.264 and MJPEG codecs.
• Handles 80 Mbps of network camera recording.
• Eight PoE ports (10/100) for plug-and-play camera connection, plus a 1Gbps PoE WAN port.
• Has one SATA bay that accepts a drive up to 6TB.
• Supports ARB and P2P service with QR code connection.

Specifications

Brand: Hanwha

Model: QRN-830S-2TB

Product Model: QRN-830S

Product Type: Video Surveillance Station

Number of Channels: 8

Hard Drive Capacity: 2TB

Storage Capacity: 2TB

Maximum Resolution: 3264 x 2448

Maximum Frame Rate: 60fps

Bandwidth: 80Mbps

Video Formats: H.264

Recording Formats: Full HD

Connectivity Technology: Wired

Ethernet: Yes

HDMI: Yes

Remote Management: Yes

Power Consumption: 65W

Width: 11.80″

Height: 1.90″

Depth: 9.40″

Country of Origin: VN

Installation notes

Place the recorder in a ventilated spot with room around it for airflow, and leave space behind it for the network and HDMI cabling. Connect each camera to a PoE port with a properly terminated Ethernet run, then confirm every camera is detected and recording before leaving the site.
