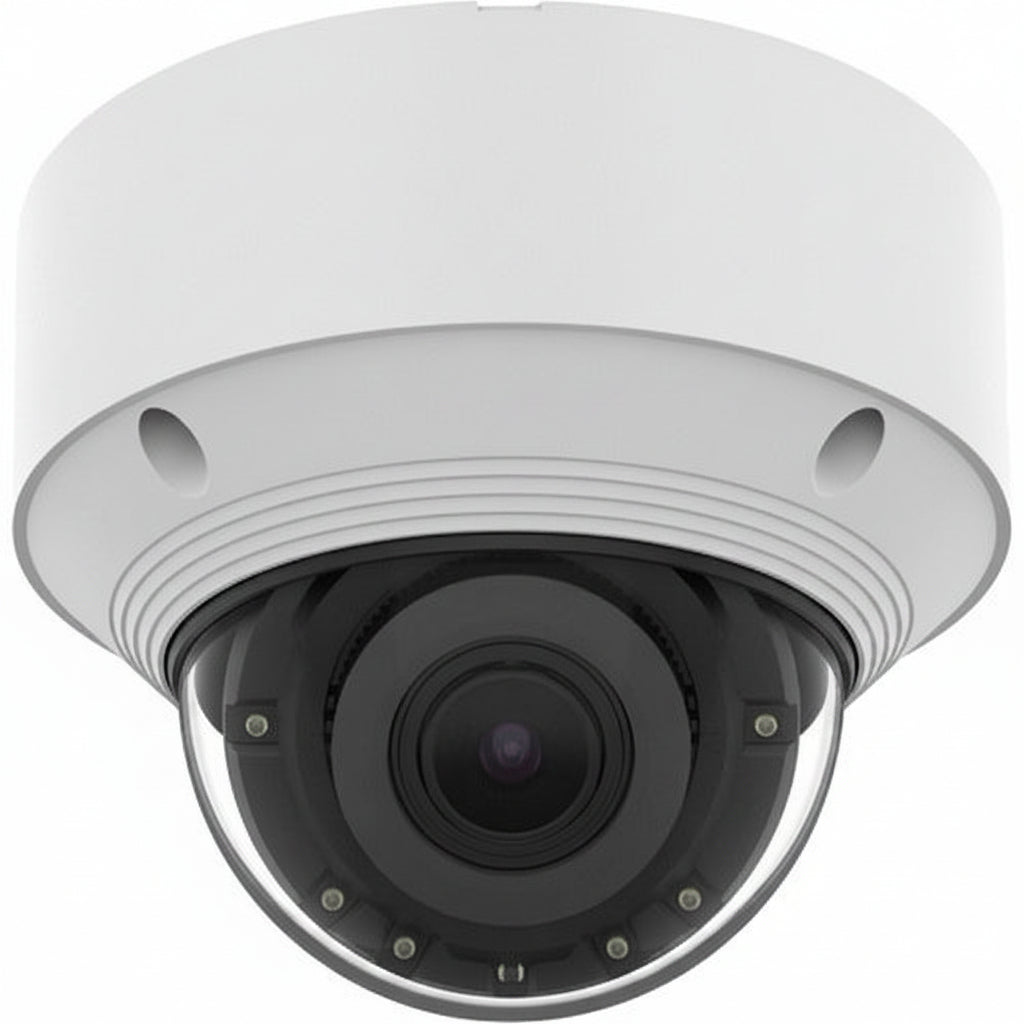

Hanwha QNV-C9083R Q-Series 4K AI IR Vandal Dome Camera 3.2-10.2mm Motorizes Varifocal Lens, White

The Hanwha QNV-C9083R is a Q-Series 4K AI IR vandal dome network camera in white, built for installers and businesses that need an impact-resistant, weather-rated camera for exterior or exposed locations. It pairs an 8MP sensor with a 3.2-10.2mm motorized varifocal lens, so the field of view can be set and adjusted without swapping lenses. IP66 and IK10 ratings, infrared night vision and 120dB WDR round out a camera that handles rough sites and difficult lighting.

Key features

• Records up to 8MP resolution at up to 30 fps.
• The 3.2-10.2mm motorized varifocal lens (3.2X) lets you fine-tune the view.
• Supports H.265, H.264 and MJPEG, with up to 5 streaming profiles.
• Day & Night (ICR) and 120dB WDR help in low light and high-contrast scenes.
• One microSD/SDHC/SDXC slot accepts cards up to 256GB for onboard storage.
• IP66 and IK10 ratings, with PoE draw of up to 12.95W.

Specifications

Brand: Hanwha

Model: QNV-C9083R

Product series: Q-Series

Product type: Dome Camera

Color: White

Form factor: Dome

Mount type: Pendant Mount

Image sensor: CMOS

Effective resolution: 8MP

Maximum video resolution: 3840 x 2160

Maximum frame rate: 30fps

Aspect ratio: 16:9

Lens type: Motorized varifocal (included)

Focal length: 3.2-10.2mm

Optical zoom: 3.2x

Field of view (horizontal): 104.0° to 31° (wide to tele)

Field of view (vertical): 55° to 17° (wide to tele)

Maximum aperture: F1.6

Minimum aperture: f/3.1

Minimum illumination: Color 0.06 lux (F1.6, 1/30 sec); B/W 0.006 lux (F1.6, 1/30 sec, 30IRE)

Shutter speed: 1/5 second to 1/12,000 second

Night vision: Infrared (IR), 98.43′ distance

Wide dynamic range: Yes (120dB)

Video codecs: H.265, H.264, MJPEG

Streaming: Up to 5 profiles

Storage: Micro SD/SDHC/SDXC, 1 slot, up to 256GB

Network: RJ-45, wired

Power: PoE, max 12.95W

Remote management: Yes

Cloud: Cloud enabled

Ingress protection: IP66

Impact protection: IK10

Operating temperature: -22°F to 131°F

Operating humidity: 0-95% RH (non-condensing)

Diameter: 5.51″

Weight: 1.93 lb

Installation notes

Power and connect the camera over a single PoE network cable, and confirm your switch or injector can supply the camera's maximum draw. Aim the camera before final tightening, then use the motorized lens to set zoom and focus from a laptop or monitor at the mounting location.
