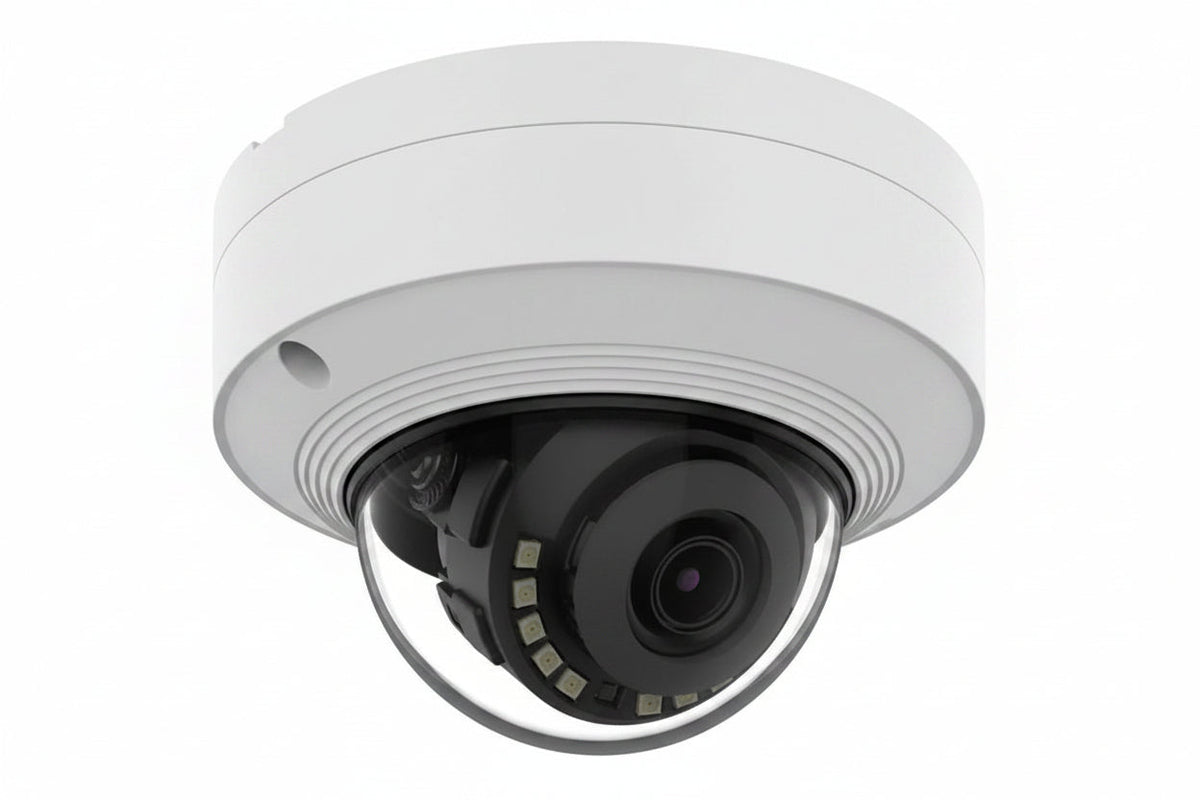

Hanwha QNV-C9011R 8MP 4K Vandal Dome Camera IR AI, White

The Hanwha QNV-C9011R is an 8MP 4K IR vandal dome network camera in white, part of Hanwha's AI mini dome line. It records at 30fps at every resolution and adds on-camera AI object detection that classifies people and vehicles. A 108° horizontal view, 20m (65ft) of IR range and an IK10 impact rating make it a good fit for installers covering entrances, lots and other areas where the camera may be tampered with.

Key features

• Records 4K video at 30fps at all resolutions in H.265 or H.264, with MJPEG also supported.
• Wisestream III and WiseNRII, both based on Hanwha's AI engine, are included alongside 120dB WDR.
• AI object detection classifies people and vehicles, including cars, buses, trucks, motorcycles and bicycles.
• Video analytics cover virtual line crossing and direction, plus loitering, intrusion, enter and exit events in a defined area.
• Defocus detection, appear/disappear, tampering and motion detection are also built in.
• The housing is rated IP66 and IK10 and operates from -40°C to +55°C (-40°F to +131°F).

Specifications

Model: QNV-C9011R

Brand: Hanwha

Color: White

Effective Resolution: 8MP

Maximum Video Resolution: 3840 x 2160

Maximum Frame Rate: 30fps

Image Sensor Type: CMOS

Aspect Ratio: 16:9

Lens Type: Fixed focus, M12 mount

Focal Length: 3.00mm

Maximum Aperture: F1.6

Field of View: 108° horizontal / 59° vertical

Minimum Illumination: 0.0030 lux

Shutter Speed: 1/5 second to 1/12,000 second

Wide Dynamic Range: Yes (120dB)

Night Vision: Infrared (IR), 20m (65ft)

Video Formats: H.265, H.264, MJPEG

Storage: microSD card slot, up to 256GB

Power: PoE or 12V DC

Network: RJ-45, wired

Remote Management: Yes

Cloud Capabilities: Cloud enabled

Mount Type: Pendant mount

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Operating Temperature: -40°C to +55°C (-40°F to +131°F)

Operating Humidity: 0-95% RH

Diameter: 4.33″

Weight: 1.15 lb

Country of Origin: Vietnam

Installation notes

Because the lens is fixed, set the camera position and aim carefully during commissioning so the 108° horizontal view covers the target area. Power the camera over PoE from a compatible switch or injector, or use a 12V DC supply, and seal the cable entry to maintain the IP66 rating.
