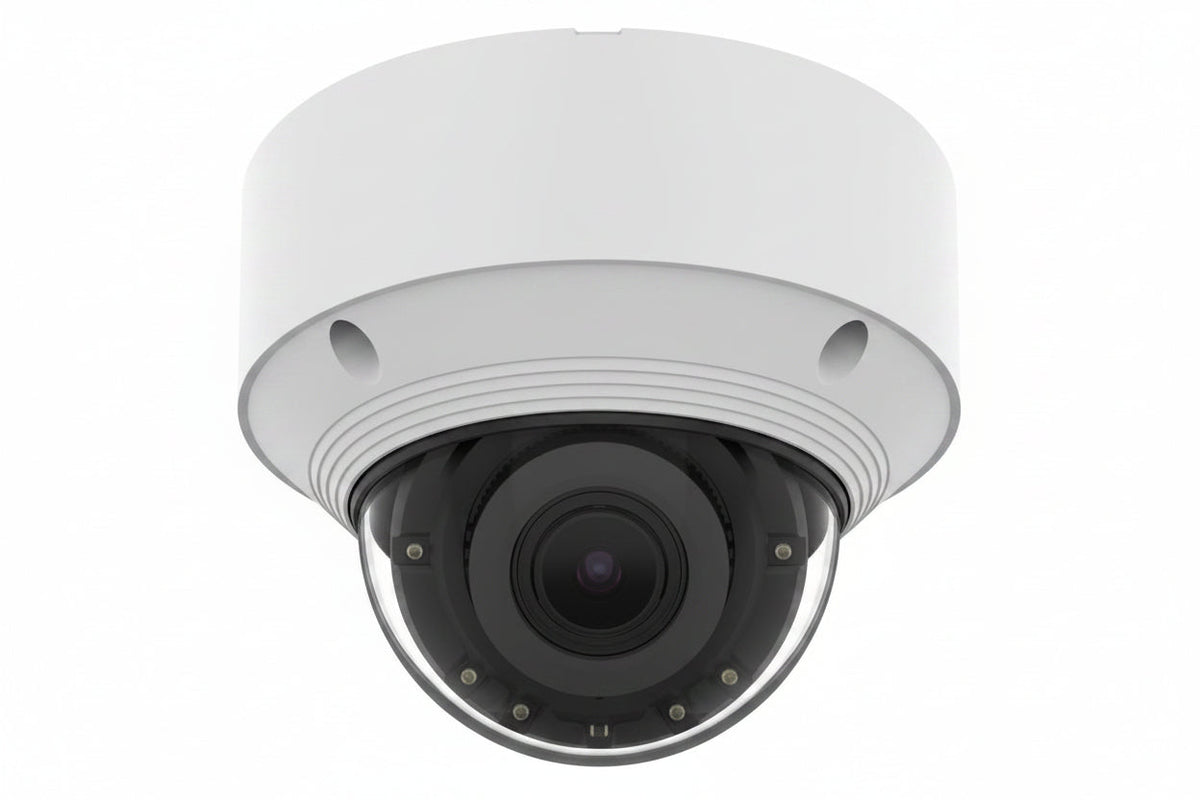

Hanwha QNV-C8083R Q-Series 5MP IR Vandal Dome Camera 3.2-10.2mm Motorized Varifocal Lens, White

The Hanwha QNV-C8083R is a 5MP infrared vandal dome network camera from the Q-Series, built for outdoor video surveillance. Its 3.2-10.2mm motorized varifocal lens lets you set the field of view without swapping optics, and IK10 impact resistance with IP66 sealing suits installs where the camera may be exposed to weather or tampering. It fits installers and businesses that want a rugged, single-camera solution with onboard recording to a microSD card.

Key features

• Records up to 5MP at a maximum of 30 fps.
• The motorized varifocal lens covers 3.2-10.2mm (3.2x), so framing can be adjusted without changing the lens.
• Supports H.265, H.264 and MJPEG, with up to 5 streaming profiles.
• Day and Night (ICR) operation and 120dB WDR help in low light and high-contrast scenes.
• One microSD/SDHC/SDXC slot accepts cards up to 256GB for onboard storage.
• Rated IP66 and IK10, and powered over PoE at a maximum of 12.95W.

Specifications

Brand: Hanwha

Model: QNV-C8083R

Product Series: Q

Product Type: Dome Camera

Color: White

Effective Camera Resolution: 5MP

Maximum Video Resolution: 2592 x 1944

Maximum Frame Rate: 30fps

Image Sensor Type: CMOS

Lens Type: Varifocal (included)

Focal Length: 3.2-10.2mm

Field of View: 95°-29° horizontal, 69°-21° vertical

Maximum Aperture: F1.6

Minimum Aperture: f/3.1

Shutter Speed: 1/5 second to 1/12,000 second

Minimum Illumination: Color 0.07 lux (F1.6, 1/30 sec); B/W 0.007 lux (F1.6, 1/30 sec, 30IRE)

Night Vision: Infrared (IR), 98.43′

Wide Dynamic Range: Yes (120dB)

Video Formats: H.265, H.264, MJPEG

Storage: Micro SD/SDHC/SDXC, 1 slot, up to 256GB

Network: RJ-45, wired

Power: PoE, max 12.95W

Remote Management: Yes

Cloud Capabilities: Cloud enabled

Indoor/Outdoor: Outdoor

Ingress Protection: IP66

Impact Protection: IK10

Mount Type: Conduit box mount

Operating Temperature: -22°F to 131°F

Operating Humidity: 0-95% RH (non-condensing)

Diameter: 5.51″

Weight: 1.93 lb

Country of Origin: VN

Installation notes

Plan the mounting location around the conduit box mount, and seal cable entries properly to keep the IP66 rating intact outdoors. Confirm your PoE switch or injector can supply the camera's maximum draw, then set the zoom and focus with the motorized lens on site once the camera is live on the network.
