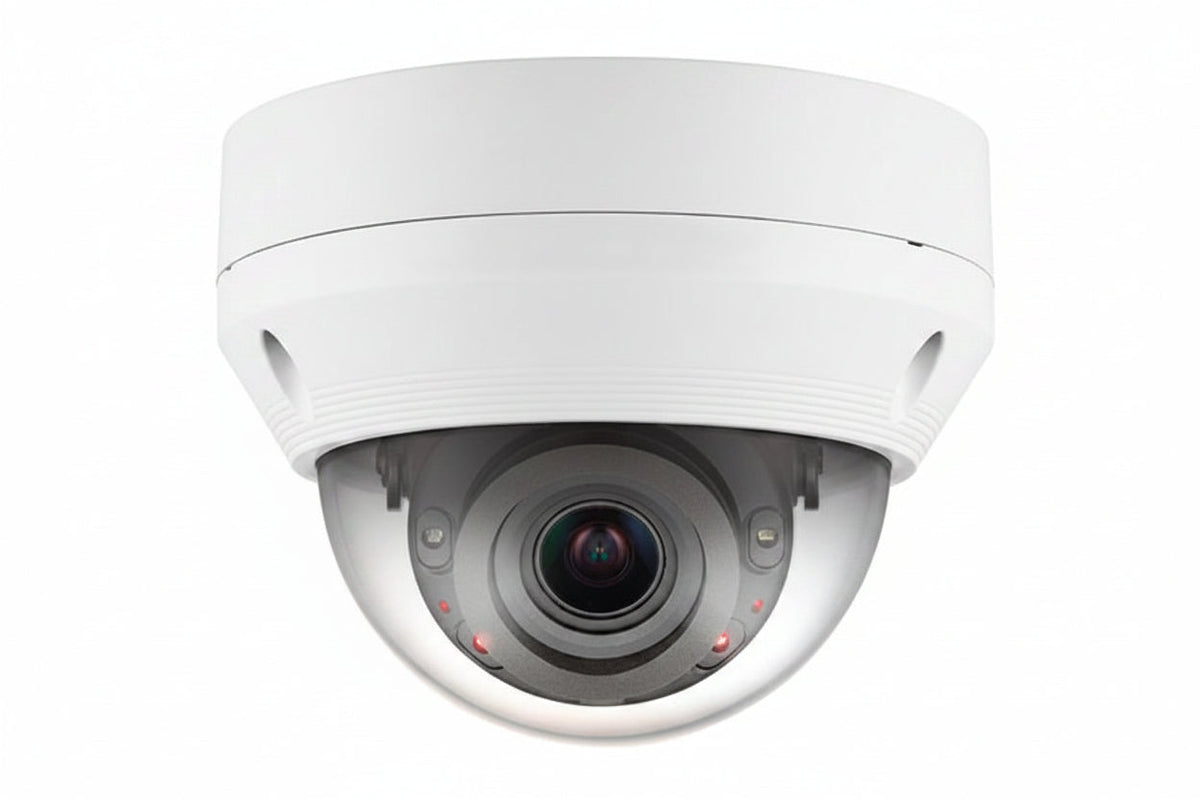

Hanwha QNV-8080R Q-Series 5MP IR Vandal IP Dome Camera, 3.2-10mm Varifocal Lens, White

The Hanwha QNV-8080R is a 5MP outdoor IR vandal dome network camera from the Q-Series, built for installers and businesses that need dependable coverage in tough locations. It combines a motorized 3.2-10mm varifocal lens with infrared night vision, so the field of view can be set after mounting without changing lenses. IK10 impact resistance, IP66 ingress protection and NDAA and TAA compliance make it a practical pick for exposed or compliance-sensitive sites.

Key features

• Captures up to 5MP (2592 x 1944) at up to 30fps using H.265 or H.264.
• The motorized 3.2-10mm (3.1x) varifocal lens lets you adjust framing on site.
• Reaches 0.15 Lux in color and 0 Lux in black and white with the IR LED on.
• WDR (120 dB) and Day and Night operation help with high-contrast scenes and changing light.
• Tampering, motion and defocus detection are built in, and WiseStream II is supported.
• A Micro SD/SDHC/SDXC slot accepts cards up to 128GB for onboard recording.

Specifications

Model: QNV-8080R

Brand: Hanwha

Product Series: Q

Product Type: Network Camera

Form Factor: Dome

Color: White

Effective Camera Resolution: 5MP

Image Sensor Type: CMOS

Lens Type: Varifocal

Focal Length: 3.2-10mm

Maximum Aperture: f/1.6

Minimum Aperture: f/2.9

Field of View (Vertical): 31.20°

Night Vision Type: Infrared (IR)

Wide Dynamic Range: Yes

Maximum Frame Rate: 30fps

Shortest Shutter Speed: 1/12000 Second

Longest Shutter Speed: 1/5 Second

Storage Type: Memory Card

Network (RJ-45): Yes

Remote Management: Yes

Indoor/Outdoor: Outdoor

Mount Type: Ceiling Mount

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Operating Temperature: -22°F to 131°F

Operating Humidity: 90%

Height: 4.20″

Diameter: 5.40″

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: VN

Installation notes

Run a network cable to the RJ-45 port and seal the connection against moisture, even though the camera is rated for outdoor use. Aim the camera so the IR LEDs are not pointed at nearby walls or other close surfaces that could reflect light back into the lens, then fine-tune zoom and focus with the motorized lens once the view is set.
