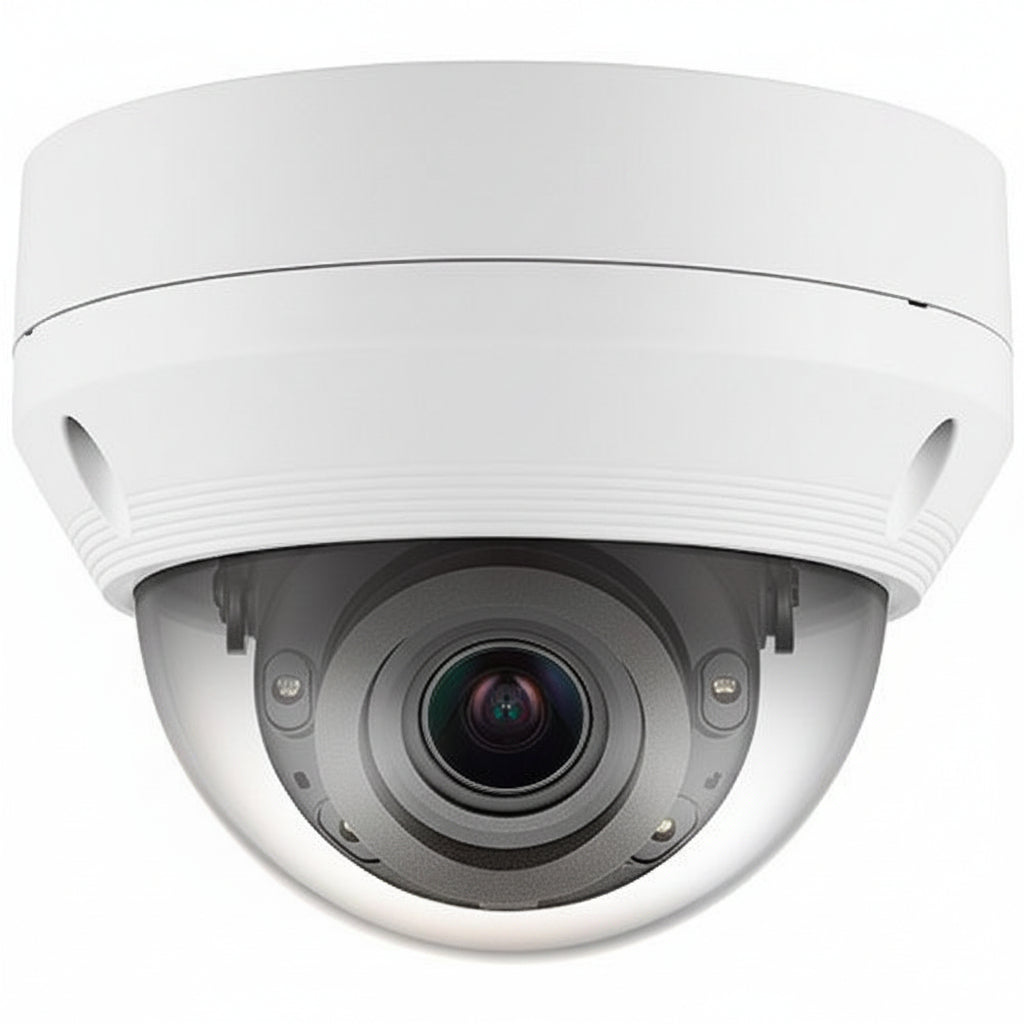

Hanwha QNV-7082R Q-Series 4MP IR Vandal IP Dome Camera, 3.2-10mm, White

The Hanwha QNV-7082R is a 4MP outdoor IR vandal dome network camera from the Q-Series, built for exterior and high-risk locations where the camera may be exposed to weather or tampering. It combines a motorized varifocal 3.2-10mm lens with 30 m of infrared range and 120 dB WDR, so it suits installers covering entrances, parking areas and building perimeters. IP66 and IK10 ratings and NDAA compliance round out the package.

Key features

• Records 4MP video at up to 30 fps and supports H.265, H.264 and MJPEG with multiple streams, plus WiseStream II.
• The motorized varifocal lens covers 3.2-10mm (3.1x), so you can set the field of view without swapping lenses.
• Infrared illumination reaches 30m (98.42') and the camera runs 0 lux in black-and-white mode with the IR LEDs on.
• Built-in analytics include defocus, directional and motion detection, enter/exit and tampering alerts.
• A Micro SD/SDHC/SDXC slot takes cards up to 128GB for onboard storage.
• Hallway view (90/270) and LDC support help with narrow corridors and wide-angle correction.

Specifications

Brand: Hanwha

Model: QNV-7082R

Series: Q

Product type: Network Camera

Form factor: Dome

Color: White

Effective resolution: 4MP

Maximum video resolution: 1600 x 1200

Maximum frame rate: 30fps

Image sensor: CMOS

Focal length: 3.2-10mm

Lens type: Varifocal (included)

Maximum aperture: f/1.6

Minimum aperture: f/2.9

Minimum illumination: Color 0.1Lux (F1.6, 1/30sec); B/W 0Lux (IR LED On)

Shutter speed: 1/5 second to 1/12000 second

Night vision: Infrared (IR), 30m (98.42') viewable length

Wide dynamic range: Yes (120 dB)

Vertical field of view: 30.80°

Video formats: H.265, H.264, MJPEG

Storage: Micro SD/SDHC/SDXC, 1 slot (max. 128GB)

Connectivity: Wired, Network (RJ-45)

Remote management: Yes

Alarm triggering: Yes

Mount type: Box Mount

Indoor/Outdoor: Outdoor

Ingress protection: IP66

Impact protection: IK10

Operating temperature: -40°F to 131°F

Operating humidity: 95%

Dimensions: Height 4.18″, Width 5.39″, Diameter 5.40″

Weight: 1.57lb

NDAA compliant: Yes

Country of origin: VN

Installation notes

Mount the camera to a solid surface and seal the cable entry so the weather rating is not undermined. Aim it to avoid direct light sources and nearby surfaces that reflect IR, then fine-tune the zoom and focus using the motorized lens during commissioning.
