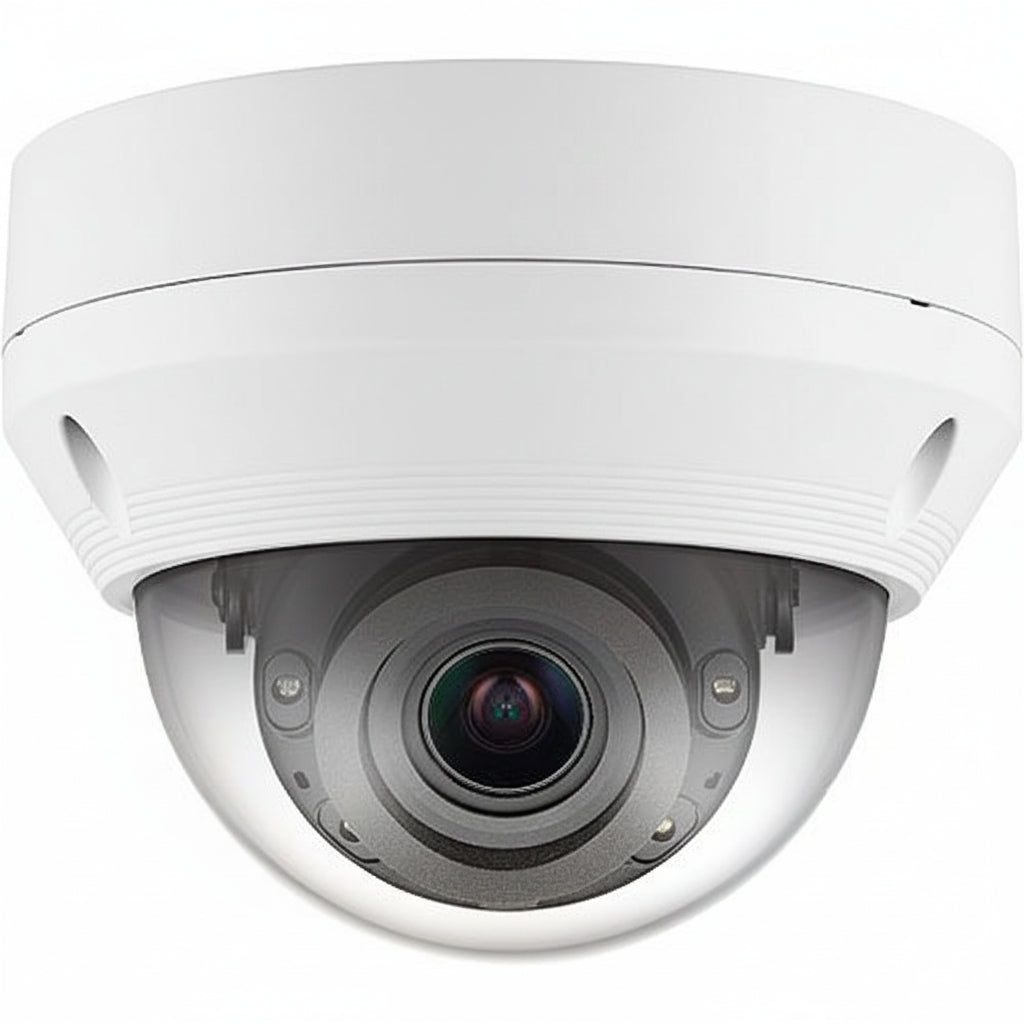

Hanwha QNV-6082R1 Q-Series 2MP Outdoor IR Vandal Dome Camera, 3.2-10mm Varifocal Lens White

The Hanwha QNV-6082R1 is a Q-Series 2MP outdoor vandal dome network camera with built-in infrared night vision. It suits installers and businesses that need a weather-sealed, impact-resistant camera for exterior ceiling or soffit locations, and its 3.2-10mm varifocal lens lets you set the field of view on site. The white housing is rated IP66 and IK10, and the camera is NDAA compliant.

Key features

• Records 2MP (1920 x 1080) video at up to 30fps in all resolutions, using H.265, H.264 or MJPEG with multiple streaming.
• Sees in low light down to 0.03lux in color and 0lux in black and white with the IR LED on, with an IR viewable length of 30m.
• The 3.1x varifocal lens covers 3.2-10mm for adjustable framing.
• Built-in analytics cover motion detection, tampering and defocus detection.
• Hallway view (90°/270°) and LDC support, plus a Micro SD/SDHC/SDXC slot for onboard storage up to 128GB.

Specifications

Model: QNV-6082R1

Brand: Hanwha

Series: Q

Product type: Network Camera

Form factor: Dome

Color: White

Effective resolution: 2MP

Maximum resolution: 1920 x 1080

Aspect ratio: 16:9

Image sensor: CMOS

Lens type: Varifocal, lens included

Focal length: 3.2-10mm

Aperture: f/1.6 to f/2.9

Field of view: 109.0° horizontal, 57.40° vertical

Shutter speed: 1/5 second to 1/12000 second

Maximum frame rate: 30fps

Night vision: Infrared (IR), 30m viewable length

Wide dynamic range: Yes

Storage: Memory card, Micro SD/SDHC/SDXC up to 128GB

Network: RJ-45

Power: PoE / 12V DC

Remote management: Yes

Indoor/outdoor: Outdoor

Ingress protection: IP66

Impact protection: IK10

Mount type: Ceiling Mount

Operating temperature: -22°F to 131°F

Operating humidity: 90%

Height: 4.18″

Diameter: 5.40″

Weight: 1.57lb

NDAA compliant: Yes

Country of origin: VN

Installation notes

Mount the camera to a solid surface and aim it so the IR illuminator is not facing a nearby wall or reflective surface, which can wash out the night image. Power it from a PoE switch or a 12V DC supply, seal the cable entry against moisture, and fine-tune the varifocal lens during commissioning with the camera on its final mount.
