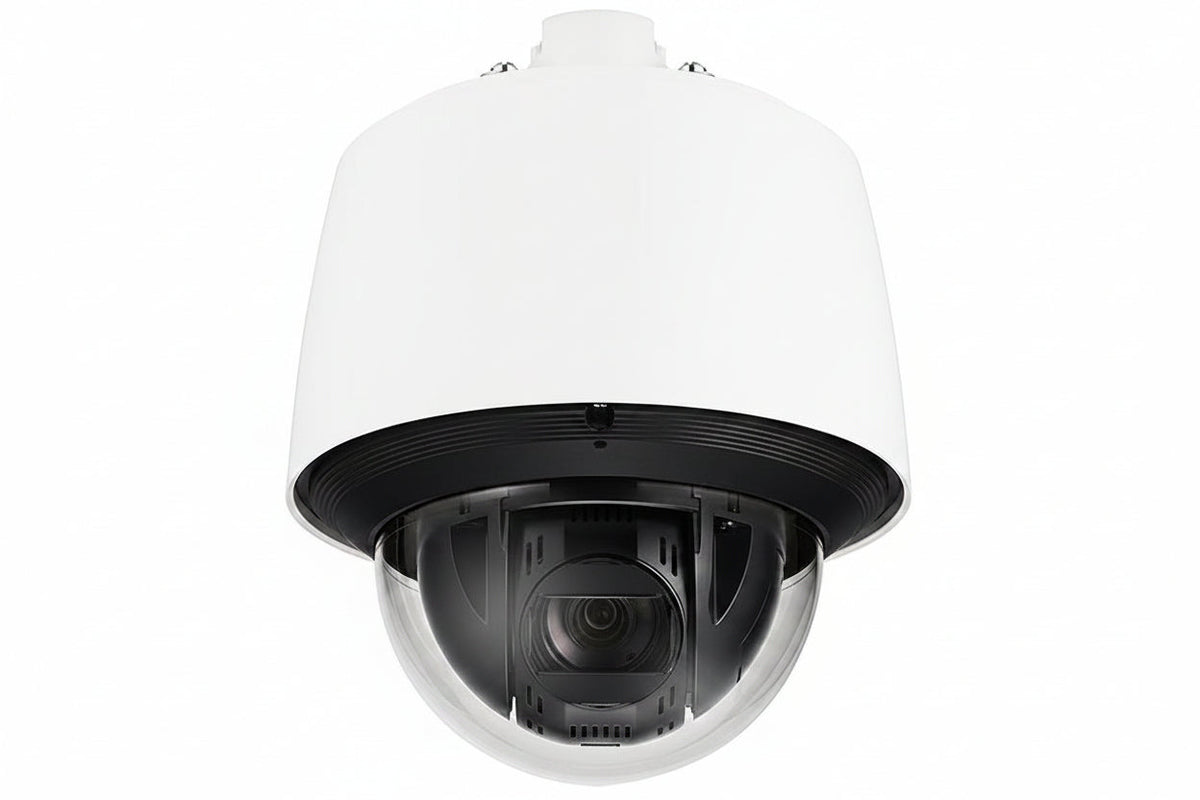

Hanwha QNP-6250H Q-Series 2MP WDR PTZ Camera with 25x Zoom, IK10, 4.44-111mm Lens (Replaces QNP-6230H)

The Hanwha QNP-6250H (QNP-6250H/KAP) is a Q-Series 2MP PTZ network camera with a 25x optical zoom lens, built for monitoring wide outdoor and commercial areas. It suits installers and businesses that need a pan-tilt-zoom camera able to withstand impacts and weather. Its IK10 impact rating, IP66 and NEMA4X protection, and built-in gyro stabilization are what stand out.

Key features

• The 4.44–111 mm lens gives 25x optical zoom for close detail at distance.
• Day & Night (ICR), WDR and DIS with a built-in gyro sensor help keep the image usable in difficult light and steady when the camera moves.
• Intelligent Analytics are included.
• It supports H.264, H.265 and MJPEG video, with WiseStreamII.
• A micro SD/SDHC/SDXC slot takes cards up to 256GB for onboard recording.
• IP66, IK10 and NEMA4X ratings cover dust, water and impact protection.

Specifications

Brand: Hanwha

Model: QNP-6250H/KAP

Series: Q

Form factor: PTZ

Maximum resolution: 2MP

Maximum video resolution: 1600 x 1200

Maximum frame rate: 60fps

Image sensor: CMOS

Lens type: Varifocal

Focal length: 4.44mm to 111mm

Optical zoom: 25.0x

Maximum aperture: f/1.6

Minimum aperture: f/3.9

Field of view: 64.7° horizontal, 38.08° vertical

Shutter speed: 1/12000 second to 2 seconds

Wide dynamic range: Yes

Back light compensation: Yes

Video format: H.264

Storage: Memory card

Network: RJ-45, wired

Remote management: Yes

Impact protection: IK10

Ingress protection: IP66

Operating temperature: -40°F to 140°F

Operating humidity: 95%

Mount type: Ceiling mount

Color: White

Diameter: 8.00″

Weight: 5.95 lb

TAA compliant: Yes

Country of origin: KR

Installation notes

Mount the camera on a solid surface that can carry its 5.95 lb weight, and keep it clear of obstructions that could block pan and tilt movement. Run the network cable to the RJ-45 port, seal the connection against moisture, and check the view and zoom range during commissioning.
