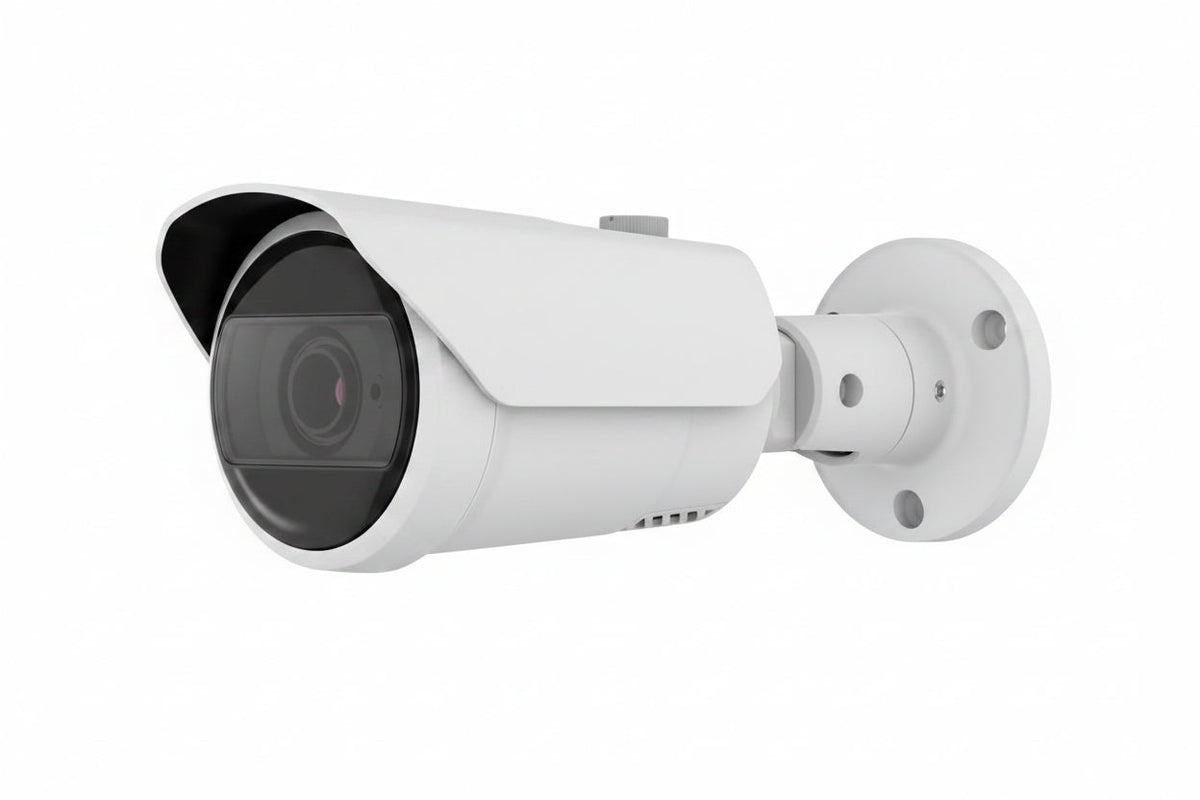

Hanwha QNO-C9083R Q-Series 4K AI IR Bullet Camera 3-10mm Varifocal Lens, White

The Hanwha QNO-C9083R is a Q-Series 4K AI IR bullet network camera with a motorized 3.2-10.2mm varifocal lens, built for outdoor and exposed-location video surveillance. It captures up to 8MP at 30 fps, adds infrared night vision, and carries IP66 and IK10 ratings, which suits installers and businesses that need a tough camera with an adjustable field of view. AI object detection and WiseMD motion detection help cut false alerts from things like foliage and lighting changes.

Key features

• Records up to 8MP resolution at a maximum of 30 fps.
• The motorized varifocal lens covers 3.2-10.2mm, so the view can be set to suit the scene.
• Supports H.265, H.264 and MJPEG, with up to 5 streaming profiles.
• Day and Night (ICR) operation and 120dB WDR handle low light and high-contrast scenes.
• A microSD/SDHC/SDXC slot takes cards up to 256GB for on-camera storage.
• IP66 and IK10 ratings protect against weather and impact.

Specifications

Brand: Hanwha

Model: QNO-C9083R

Product series: Q-Series

Product type: Bullet camera

Color: White

Effective resolution: 8MP

Maximum video resolution: 3840 x 2160

Maximum frame rate: 30 fps

Image sensor: CMOS

Aspect ratio: 16:9

Lens: 3.2-10.2mm motorized varifocal, included

Aperture: f/1.6 maximum, f/3.1 minimum

Field of view: 104°-31° horizontal, 55°-17° vertical

Minimum illumination: Color 0.06 lux (F1.6, 1/30 sec); B/W 0.006 lux (F1.6, 1/30 sec, 30IRE)

Shutter speed: 1/12,000 second to 1/5 second

Night vision: Infrared (IR), 98.43′

Wide dynamic range: Yes, 120dB

Video codecs: H.265, H.264, MJPEG

Streaming: Multiple streaming, up to 5 profiles

Storage: Micro SD/SDHC/SDXC, 1 slot, 256GB

Network: RJ-45, wired

Power: PoE, max 12W

Ingress protection: IP66

Impact protection: IK10

Mount type: Backbox mount

Operating temperature: -22°F to 131°F

Operating humidity: 0-95% RH

Diameter: 3.68″

Weight: 2.05 lb

Remote management: Yes

Cloud: Cloud enabled

TAA compliant: Yes

Country of origin: VN

Installation notes

This camera uses a backbox mount, so plan the mounting surface and cable entry before fixing it in place. Run a PoE network cable to the camera, then use the motorized varifocal lens to set the field of view on site rather than guessing the framing in advance.
