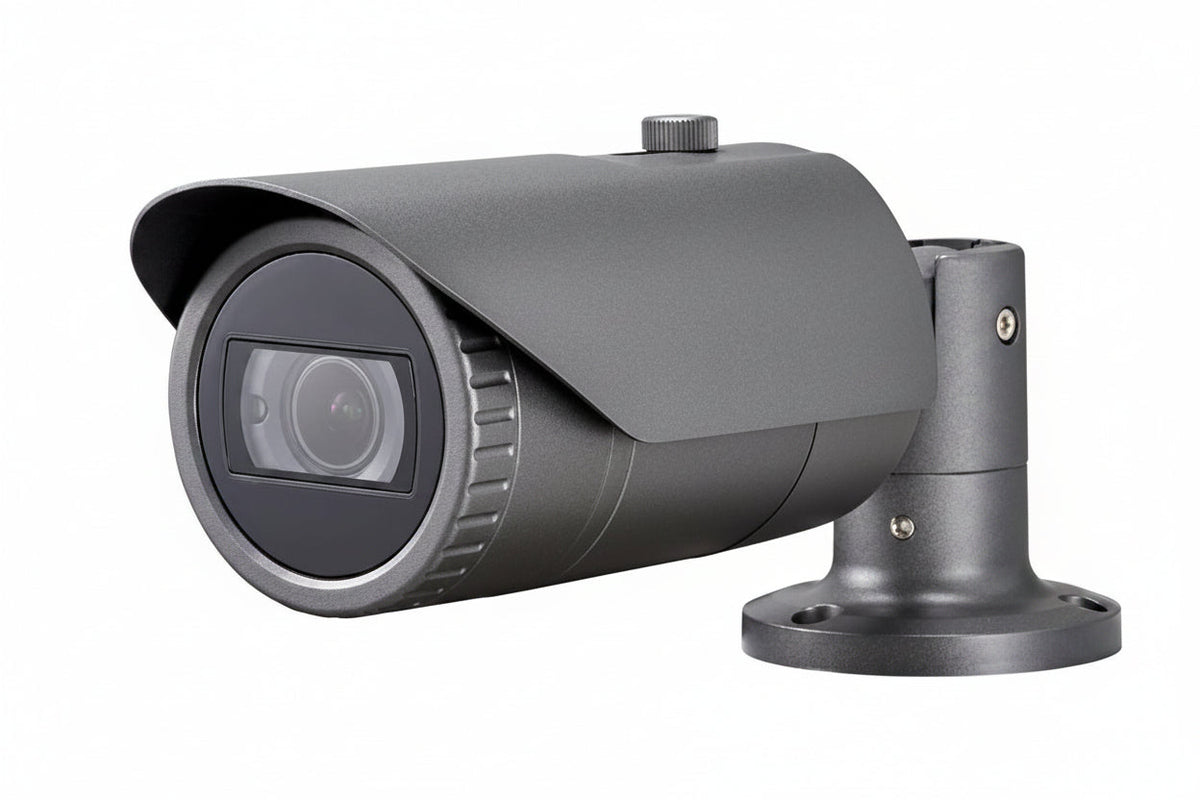

Hanwha QNO-8080R Q-Series 5MP IR Bullet Camera, 3.2-10mm Varifocal Lens, Dark Gray

The Hanwha QNO-8080R is a 5MP outdoor IR bullet network camera from the Q Series. It suits installers and businesses that need day and night coverage of building perimeters, parking areas and entrances. The motorized varifocal lens lets you set the field of view during commissioning, and the housing is rated IP66 and IK10.

Key features

• Records up to 5MP (2592 x 1944) at up to 30fps in H.265 or H.264.
• The 3.2-10mm motorized varifocal lens lets you adjust the framing without climbing back up to the camera.
• Built-in IR gives a viewable length of 30m, and the camera works in color and black-and-white modes.
• WDR (120dB) helps with scenes that mix bright and dark areas, and the camera also supports hallway view and WiseStream II.
• Tampering, motion and defocus detection are built in.
• A Micro SD, SDHC or SDXC slot takes cards up to 128GB for onboard recording.

Specifications

Brand: Hanwha

Model: QNO-8080R

Product Series: Q

Product Type: Network Camera

Form Factor: Bullet

Mount Type: Box Mount

Effective Camera Resolution: 5MP

Max. Resolution: 2592 x 1944

Maximum Frame Rate: 30fps

Image Sensor Type: CMOS

Lens Type: Varifocal, motorized, included

Focal Length: 3.2mm to 10mm

Maximum Aperture: f/1.6

Minimum Aperture: f/2.9

Shutter Speed: 1/12000 second to 1/5 second

Minimum Illumination: 0.15 lux (color), 0 lux (B/W, IR LED on)

Night Vision: Yes, Infrared (IR)

Night Vision Distance: 98.43′ (30m)

Wide Dynamic Range: Yes (120dB)

Video Compression: H.265, H.264, MJPEG

Features: Back Light Compensation (BLC)

Memory Slot: Micro SD / SDHC / SDXC, up to 128GB

Connectivity: Wired, Network (RJ-45)

Remote Management: Yes

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Impact Resistant

Operating Temperature: -22°F to 131°F

Operating Humidity: 90%

Length: 12.7″

Height: 12.7″

Width: 3.6″

Diameter: 3.6″

Color: Gray

NDAA Compliant: Yes

Country of Origin: VN

Installation notes

Mount the camera on a solid surface and aim it so the IR illuminator is not pointed at a nearby wall, glass or other close reflective surface, which can wash out the night image. Use the motorized varifocal lens to set zoom and focus from the network during commissioning, and seal the cable entry so the outdoor rating holds.
