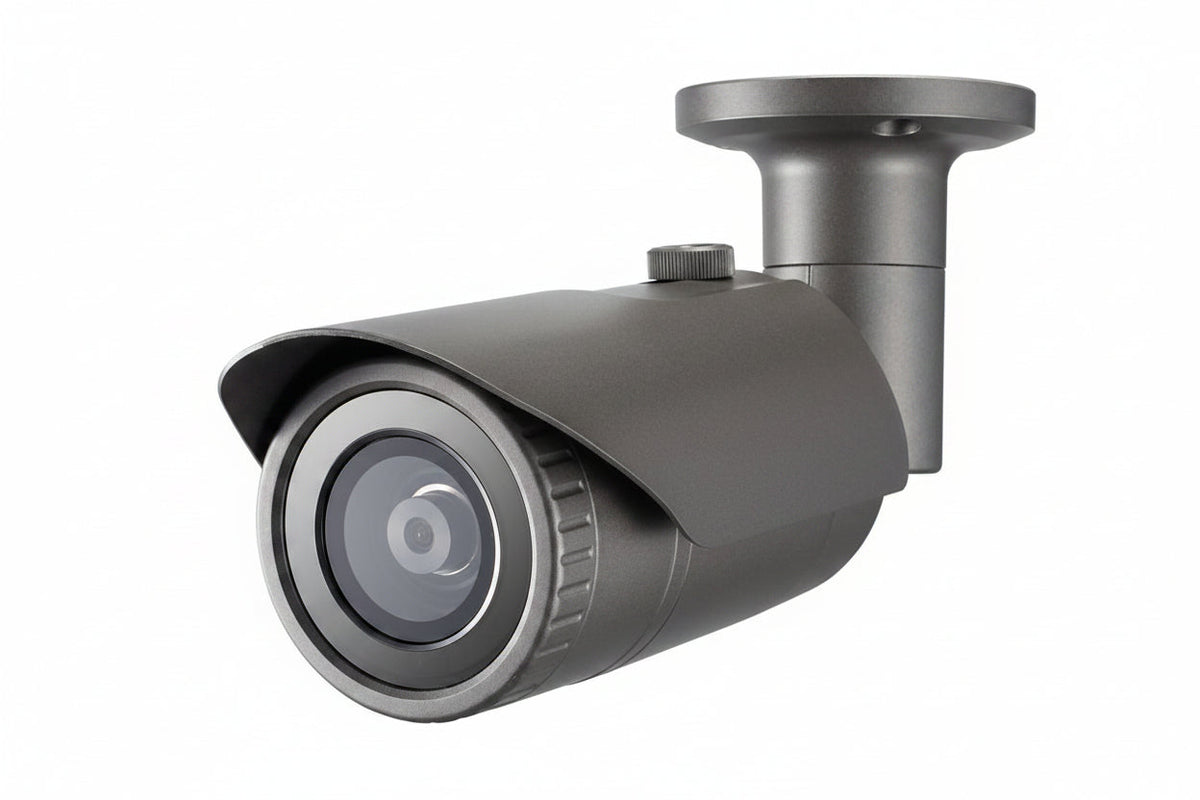

Hanwha QNO-8020R Q-Series 5MP IR Bullet Camera, 4mm Fixed Lens, Dark Gray

The Hanwha QNO-8020R is a 5MP outdoor IR bullet network camera from the Q Series, built for general-purpose video surveillance at entrances, perimeters and hallways. It suits installers and businesses that want a fixed-lens camera with onboard microSD storage and a choice of PoE or 12V DC power. Its IP66 and IK10 ratings, 120dB WDR and NDAA compliance make it a practical pick for exposed locations.

Key features

• Records 5MP video with a built-in 4mm fixed lens, at up to 30 fps at all resolutions in H.265 or H.264.
• Supports H.265, H.264 and MJPEG codecs, with multiple streaming.
• Day & Night (ICR) operation and 120dB WDR help it cope with changing and high-contrast light.
• Built-in analytics cover defocus, directional and motion detection, enter/exit, tampering and virtual line.
• A microSD slot (up to 128GB) allows local storage, and power can come over PoE or from 12V DC.
• An analog video output makes installation and aiming easier, and hallway view is supported.

Specifications

Brand: Hanwha

Model: QNO-8020R

Series: Q

Product type: Bullet network camera

Resolution: 5MP

Image sensor: CMOS

Lens: 4mm fixed, f/1.6 maximum aperture

Maximum frame rate: 30fps

Shutter speed: 1/5 second to 1/12000 second

Wide dynamic range: Yes (120dB)

Night vision: Infrared (IR), 20m viewable length (82.02′)

Video codecs: H.265, H.264, MJPEG

Storage: microSD memory card slot, up to 128GB

Power: PoE / 12V DC

Network: RJ-45

Remote management: Yes

Mount type: Box mount

Environment: Outdoor

Ingress protection: IP66

Impact protection: IK10

Operating temperature: -22°F to 131°F

Operating humidity: 90%

Dimensions: 9.70″ length x 2.80″ diameter

Weight: 1.50 lb

Color: Dark gray

NDAA compliant: Yes

Installation notes

Choose a mounting spot that gives the IR illuminator a clear view without a nearby wall or ledge reflecting light back into the lens. Use the analog video output to aim and focus the camera on site, and seal the cable entry so the IP66 rating holds in practice.
