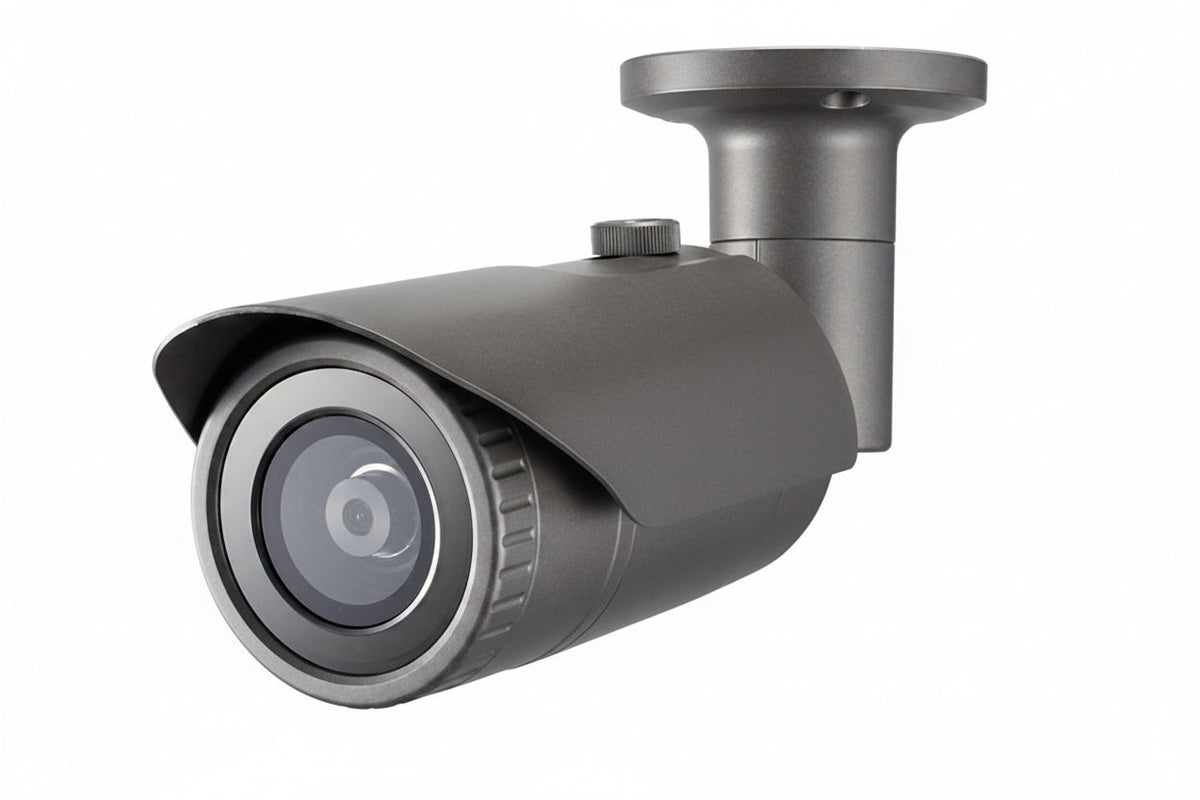

Hanwha QNO-8010R Q-Series 5MP IR Bullet Camera, 2.8mm Fixed Lens, Dark Gray

The Hanwha QNO-8010R is a 5MP outdoor IR bullet network camera from the Q Series, built for installers and businesses that need dependable day and night coverage at a fixed viewing angle. It combines a built-in 2.8 mm fixed lens with 120dB WDR, IP66 and IK10 protection, and it is NDAA compliant. Analog video out and PoE or 12V DC power make it easier to set up and commission on site.

Key features

• Captures 5MP video at 30 fps at all resolutions with H.265 and H.264, and also supports MJPEG and multiple streaming.
• Day & Night (ICR) operation and 120dB WDR help it handle low light and high-contrast scenes.
• Built-in analytics cover defocus, directional and motion detection, enter/exit, tampering and virtual line events.
• Has a micro SD slot that accepts cards up to 128GB, and it runs on PoE or 12V DC.
• Rated IP66 and IK10, with an IR range of 20 m, for outdoor use.
• Supports hallway view, and its analog video out helps during installation.

Specifications

Brand: Hanwha

Model: QNO-8010R

Series: Q

Product type: Network bullet camera

Effective resolution: 5MP

Image sensor: CMOS

Lens: 2.8mm fixed, f/2 maximum aperture

Field of view: Diagonal

Maximum frame rate: 30fps

Video codecs: H.265, H.264, MJPEG

Shutter speed: 1/12000 second to 1/5 second

Wide dynamic range: Yes (120dB)

Night vision: Infrared (IR), 65.62′ (20 m)

Storage: micro SD card slot, up to 128GB

Power: PoE / 12V DC

Network: RJ-45, wired

Remote management: Yes

Mount type: Box mount

Ingress protection: IP66

Impact protection: IK10

Indoor/outdoor: Outdoor

Operating temperature: -22°F to 131°F

Operating humidity: 90%

Dimensions: 9.70″ length, 2.80″ width and diameter

Weight: 1.50 lb

Color: Dark gray

NDAA compliant: Yes

Installation notes

Aim the camera so the fixed 2.8 mm lens covers the area you want to watch, and keep IR-lit surfaces such as walls or glass out of the near field to limit glare at night. Use the analog video out to check framing while you are on site, and seal the cable entry points to maintain the weather rating.
