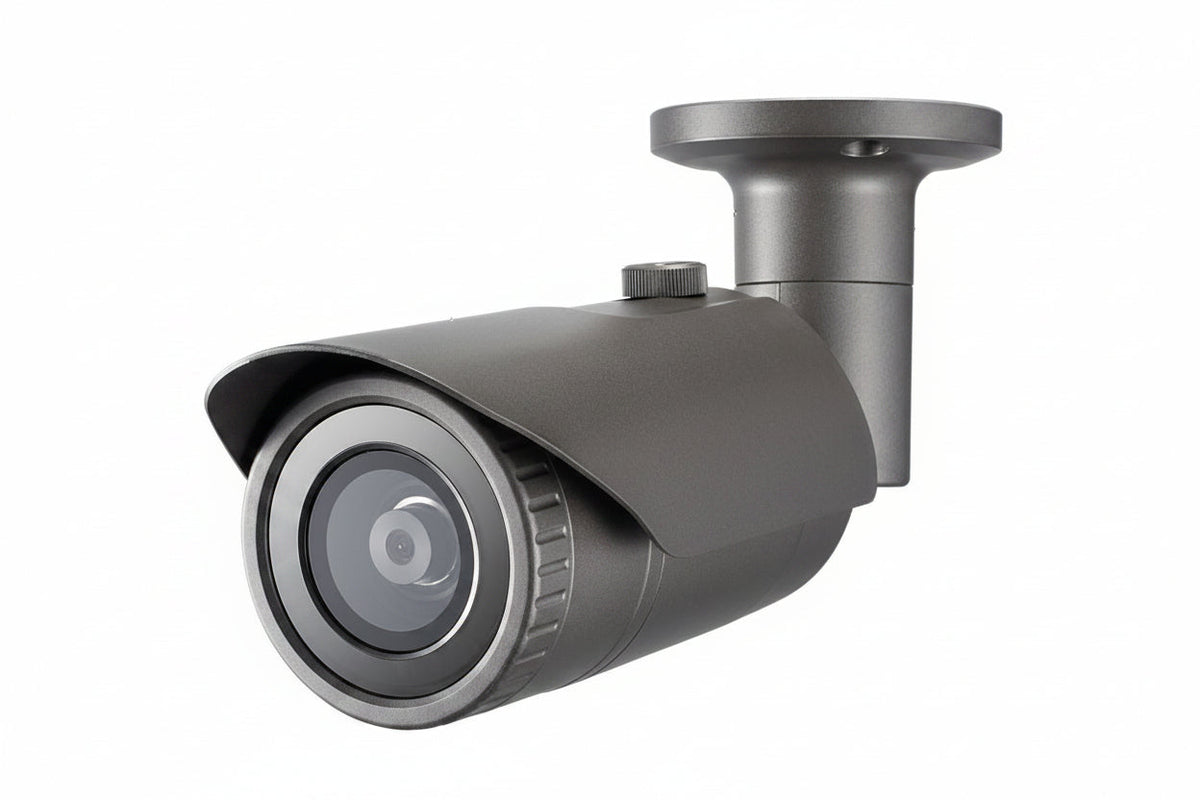

Hanwha QNO-6012R1 Q-Series 2MP IR Bullet Camera, 2.8mm Fixed Lens, Dark Gray

The Hanwha QNO-6012R1 is a 2MP IR bullet network camera from the Q-Series, built for outdoor video surveillance. It records up to 1920 x 1080 at 30fps with H.265 and H.264 and has infrared night vision with a 20m viewable length. The IP66 and IK10 ratings and NDAA compliance make it a practical choice for exposed or compliance-sensitive installs.

Key features

• Captures 2MP (1920 x 1080) video at up to 30fps in H.265 or H.264, with MJPEG and multiple streaming also supported.
• Uses a 2.8mm fixed lens and reaches 0.03Lux in color, or 0Lux in black and white with the IR LED on.
• Built-in analytics cover motion detection, tampering and defocus detection.
• Hallway view (90º/270º) and LDC support help with tall, narrow scenes and lens distortion.
• A Micro SD/SDHC/SDXC slot takes cards up to 128GB for onboard recording.
• Rated IP66 and IK10, and powers over PoE or 12V DC.

Specifications

Brand: Hanwha

Model: QNO-6012R1

Product Series: Q

Product Type: Bullet Camera

Form Factor: Bullet

Color: Gray

Indoor/Outdoor: Outdoor

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1920 x 1080

Aspect Ratio: 16:9

Maximum Frame Rate: 30fps

Image Sensor Type: CMOS

Lens Type: Fixed Focus

Focal Length: 2.8mm

Maximum Aperture: f/2

Field of View (Vertical): 61.50°

Field of View: Diagonal

Shortest Shutter Speed: 1/12,000 Second

Longest Shutter Speed: 1/5 Second

Wide Dynamic Range: Yes

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 65.62'

Video Formats: MJPEG

Recording Formats: H.264

Storage Type: SD Card

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Input Voltage: 12V DC

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Impact Resistant

Mount Type: Backbox Mount

Minimum Operating Temperature: -22°F

Maximum Operating Temperature: 131°F

Operating Humidity: 90% RH

Width: 2.80″

Diameter: 2.76″

Height: 9.70″

Weight: 1.54lb

NDAA Compliant: Yes

Country of Origin: VN

Installation notes

Because the lens is fixed, aim and position the camera carefully during mounting so the scene is framed correctly without relying on optical zoom. Run the cable through the backbox mount, seal the connection against moisture, and check the night image after dark to confirm the IR view is clear of nearby walls or reflective surfaces.
