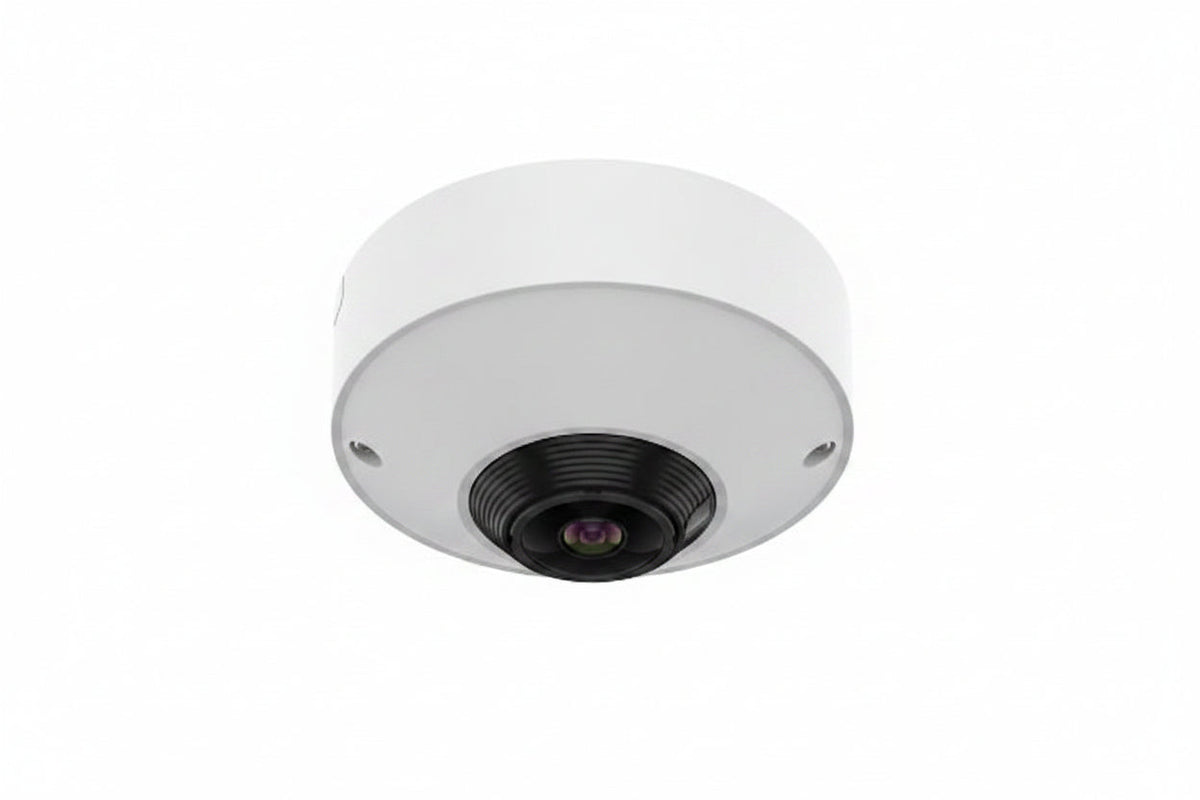

Hanwha QNF-C9010 12MP AI Fisheye IP Camera, 7.3W PoE, 1.76mm Fixed Focal Lens

The Hanwha QNF-C9010 is a 12MP indoor AI fisheye dome camera that covers an entire room from a single ceiling position. Its 1.76mm fixed lens gives a 185° field of view in both directions, which suits offices, lobbies, retail floors and other open interiors where several standard cameras would otherwise be needed. Low-light sensitivity, extremeWDR and AI-based compression stand out, and it is CloudConnector compatible for use with OnCloud.

Key features

• Captures up to 3008x3008 at 20fps for a detailed, wide-area image.
• The 1.76mm fixed lens provides a 185° horizontal and vertical field of view.
• Rated at 0.02 lux in color and 0.001 lux in black and white, both at F1.8, for dim interiors.
• extremeWDR (120dB) helps with scenes that mix bright and dark areas.
• AI-based WiseStream and WiseNR II address bandwidth use and image noise.
• Supports H.265, H.264 and MJPEG codecs, and connects to OnCloud through CloudConnector.

Specifications

Model: QNF-C9010

Brand: Hanwha

Type: Fisheye Network Camera

Resolution: 12MP, max 3008x3008 at 20fps

Lens: 1.76mm fixed

Field of view: H185°/V185°

Minimum illumination: 0.02 lux at F1.8 (color), 0.001 lux at F1.8 (B/W)

WDR: extremeWDR (120dB)

Codecs: H.265/H.264/MJPEG

Power: 7.3W PoE

Cloud capabilities: Cloud Enabled

Vendor name: Hanwha Vision

Installation notes

Mount it at the center of the area you want covered, facing down, with a clear view and no obstructions near the lens. Run a single network cable from a PoE switch or injector that can supply the camera's power draw, and confirm the image and any dewarped views during commissioning.
