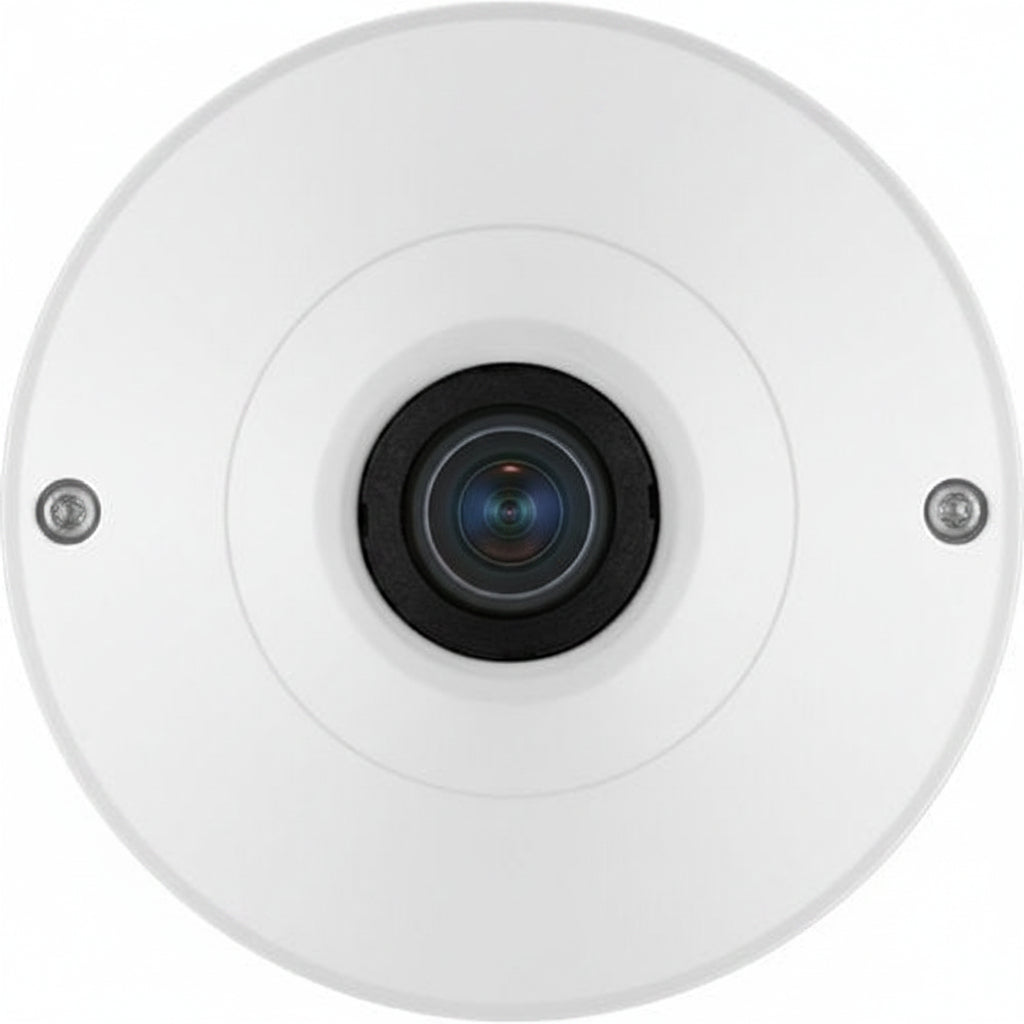

Hanwha QNF-9010 Q-Series 12MP Fisheye Camera, 1.08mm Fixed Lens, White

The Hanwha QNF-9010 is a 12MP indoor fisheye network camera from the Q Series, built to cover an entire room from a single ceiling position. It suits installers and businesses that want wide coverage without stitching together several cameras. Onboard dewarping, WDR and built-in people counting and heatmap analytics make it useful for both security and retail or lobby traffic monitoring.

Key features

• Its 12MP sensor outputs 3008 x 3008 at up to 30 fps through a 1.08 mm fisheye lens.
• The camera can show the original fisheye view or dewarp onboard to single panorama, double panorama or quad view.
• Lens rotation and an analog video output make installation and aiming adjustments easier.
• H.265, H.264 and MJPEG streaming are supported, with WiseStream II compression to manage bandwidth.
• 120dB WDR helps with scenes that mix bright and dark areas, and defocus, tampering and motion detection are built in.
• Heatmap and people counting analytics are included, and an SD card slot allows local recording.

Specifications

Brand: Hanwha

Model: QNF-9010

Product series: Q

Product type: Network camera, fisheye

Effective resolution: 12MP

Image sensor: CMOS

Maximum frame rate: 30 fps

Lens: 1.08 mm fixed, f/2.2 maximum aperture

Field of view: 187° horizontal, 187° vertical (diagonal)

Wide dynamic range: Yes (120dB)

Shutter speed: 1/12000 second to 2 seconds

Video formats: H.265, H.264, MJPEG

Analog video signal format: CVBS

Network: RJ-45, wired

Storage: Memory card (SD card slot)

Remote management: Yes

Alarm triggering: Yes

Mount type: Ceiling mount

Indoor/outdoor: Indoor

Ingress protection rating: IP42

Operating temperature: 14°F to 104°F

Operating humidity: 90%

Color: White

Diameter: 3.90″

Weight: 13.05 oz

NDAA compliant: Yes

Country of origin: Vietnam

Installation notes

Mount the camera on the ceiling near the center of the area you want to cover, with a clear view and nothing hanging below the lens. Use the lens rotation and analog video output to set the orientation while you are on site, then confirm the dewarped views and detection settings before you finish commissioning.
