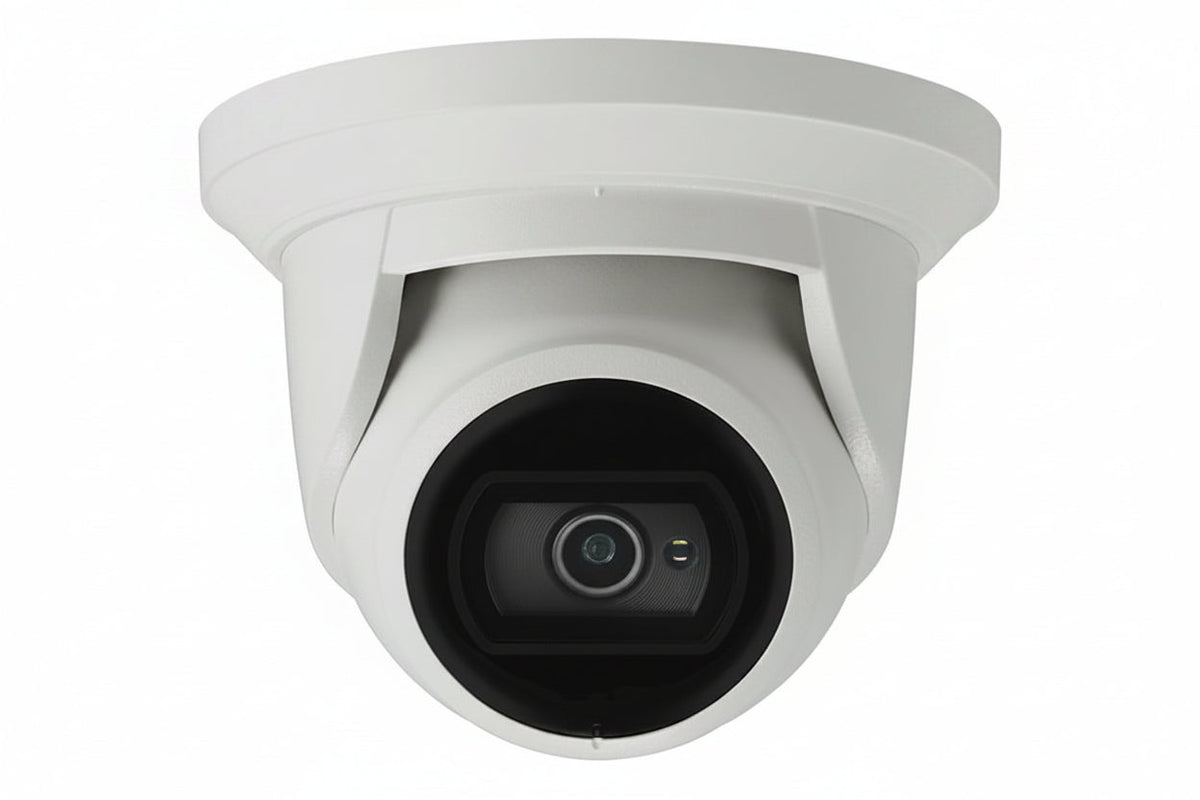

Hanwha QNE-8011R Q-Series 5MP Super-Compact IR Flateye Camera, 2.8mm Fixed Lens, White

The Hanwha QNE-8011R is a 5MP Q-Series Flateye network camera with a fixed 2.8mm lens and built-in infrared night vision. It is a compact, white, outdoor-rated unit for installers and businesses who need a tough camera with a wide view and onboard recording. Its IP67 and IK10 ratings, 120 dB WDR and NDAA compliance are what stand out.

Key features

• Records 5MP (2592 x 1944) video at 30fps using H.265 or H.264, with MJPEG and multiple streams also supported.
• Keeps scenes usable in difficult lighting with Day and Night operation and 120 dB WDR.
• Uses infrared illumination with a viewable length of 20m for low-light and dark areas.
• Includes tampering, motion and defocus detection.
• Has a Micro SD / SDHC / SDXC slot for local storage, up to 128GB.
• Offers a hallway view mode and WiseStream support.

Specifications

Model: QNE-8011R

Brand: Hanwha

Product series: Q

Product type: Network Camera

Color: White

Form factor: Dome

Mount type: Box Mount

Indoor/Outdoor: Outdoor

Ingress protection rating: IP67

Impact protection rating: IK10

Durability: Impact Resistant

Image sensor type: CMOS

Effective camera resolution: 5MP

Lens type: Fixed (lens included)

Focal length: 2.8mm

Maximum aperture: f/2

Field of view: Diagonal

Maximum frame rate: 30fps

Shutter speed: 1/12000 second (shortest) to 1/5 second (longest)

Wide dynamic range: Yes

Night vision: Yes, Infrared (IR)

Night vision distance: 65.62′

Storage type: Memory Card

Connectivity: Wired

Network (RJ-45): Yes

Remote management: Yes

Features: Alarm Triggering

Operating temperature: -22°F to 131°F

Operating humidity: 90%

Width: 4.92″

Height: 3.44″

Diameter: 4.90″

Weight: 1.42lb

NDAA compliant: Yes

Country of origin: VN

Installation notes

Mount the camera on a solid surface and aim it so the IR range covers the area you care about, keeping nearby walls and other reflective surfaces out of the foreground to limit IR glare at night. Seal the cable entry and RJ-45 connection against moisture, and confirm the view and recording settings after mounting.
