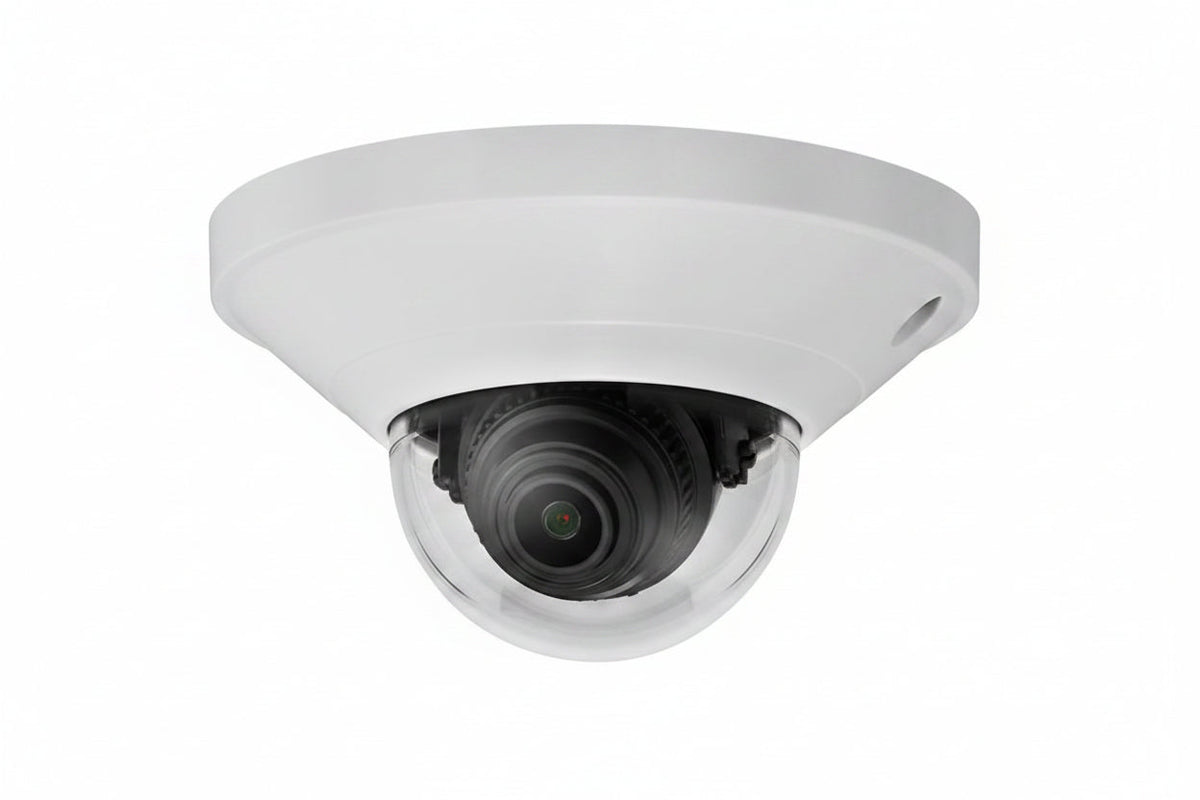

Hanwha QND-8021 Q-Series 5MP Dome Camera, 4mm Fixed Lens, White

The Hanwha QND-8021 is a 5MP indoor dome network camera from the Q Series, built around a fixed 4mm lens in a white, ultra-compact housing. It suits small offices, retail spaces and hallways where you want a low-profile camera that records clean HD video. Built-in people counting, tamper and defocus alerts, and 120dB WDR set it apart from basic dome cameras.

Key features

• Records 5MP video at 30fps at every resolution in H.265 or H.264.
• Supports H.265, H.264 and MJPEG codecs, with multiple streaming.
• Day/night operation with an ICR filter, plus 120dB wide dynamic range for scenes with mixed lighting.
• Defocus, motion and tampering detection are built in, and people counting supports retail business intelligence.
• A micro SD slot takes cards up to 128GB for onboard recording.
• Powers over PoE or 12V DC, and includes a hallway view mode.

Specifications

Model: QND-8021

Brand: Hanwha

Product series: Q

Product type: Network Camera

Form factor: Dome

Color: White

Effective camera resolution: 5MP

Maximum video resolution: 1600 x 1200

Maximum frame rate: 30fps

Image sensor type: CMOS

Lens type: Fixed

Focal length: 4mm

Maximum aperture: f/1.6

Wide dynamic range: Yes

Video formats: H.264

Connectivity: Wired

Network (RJ-45): Yes

HDMI: Yes

Remote management: Yes

Indoor/Outdoor: Indoor

Ingress protection rating: IP42

Impact protection rating: IK08

Durability: Impact Resistant

Mount type: Corner Mount

Height: 2.20″

Diameter: 3.90″

Weight: 5.82oz

NDAA compliant: Yes

Country of origin: VN

Installation notes

This is an indoor camera, so mount it where it is protected from weather and aim it to cover the hallway or area you want to watch. With PoE, a single Ethernet run handles both power and network; if you use 12V DC instead, confirm the supply is stable before you finalize the field of view and tamper settings.
