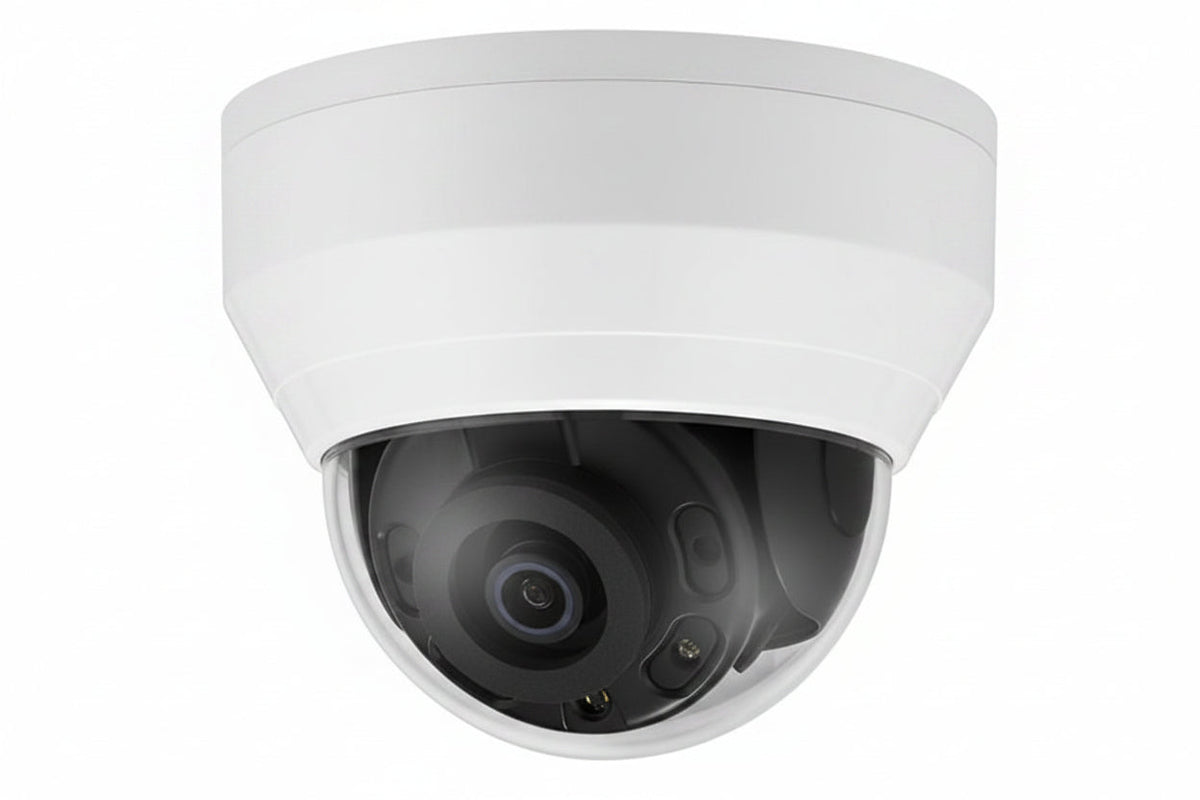

Hanwha QND-8020R Q-Series 5MP IR Dome Camera, 4mm Fixed Lens, White

The Hanwha QND-8020R is a 5MP network IR dome camera from the Q-Series, built for indoor video surveillance with a fixed 4mm lens. It records to a micro SD card and runs on PoE, so a single network cable can handle power and data. Its 120dB WDR, 65.62' of IR night vision and Hallway view support make it a good fit for corridors and similar indoor spaces.

Key features

• Captures 5MP video through a built-in 4mm fixed lens.
• Runs at 30 fps at all resolutions with H.265, H.264 and MJPEG codecs, plus multiple streaming.
• Day & Night (ICR) operation and 120dB WDR help it handle changing and high-contrast lighting.
• Built-in analytics cover defocus, directional and motion detection, enter/exit, tampering and virtual line.
• A micro SD slot (up to 128GB) allows onboard recording, and analog video out simplifies installation.

Specifications

Brand: Hanwha

Model: QND-8020R

Series: Q

Product Type: Network Camera

Form Factor: Dome

Color: White

Indoor/Outdoor: Indoor

Effective Camera Resolution: 5MP

Image Sensor Type: CMOS

Lens Type: Fixed

Focal Length: 4mm

Maximum Aperture: f/1.6

Field of View: Diagonal

Maximum Frame Rate: 30fps

Maximum Video Resolution: 1600 x 1200

Shortest Shutter Speed: 1/12000 Second

Longest Shutter Speed: 1/5 Second

Night Vision Type: Infrared (IR)

Night Vision Distance: 65.62'

Wide Dynamic Range: Yes

Auto Gain Control: Yes

Storage Type: Memory Card

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

NDAA Compliant: Yes

Mount Type: Box Mount

Operating Humidity: 90%

Minimum Operating Temperature: 14°F

Maximum Operating Temperature: 122°F

Height: 3.40″

Diameter: 4.30″

Weight: 12.70oz

Installation notes

Because this is an indoor camera, mount it where it is protected from the weather, and aim it so the IR range covers the area you need to watch. Use a PoE-capable switch or injector for power and data, and use the analog video out to help with aiming and focus during commissioning.
