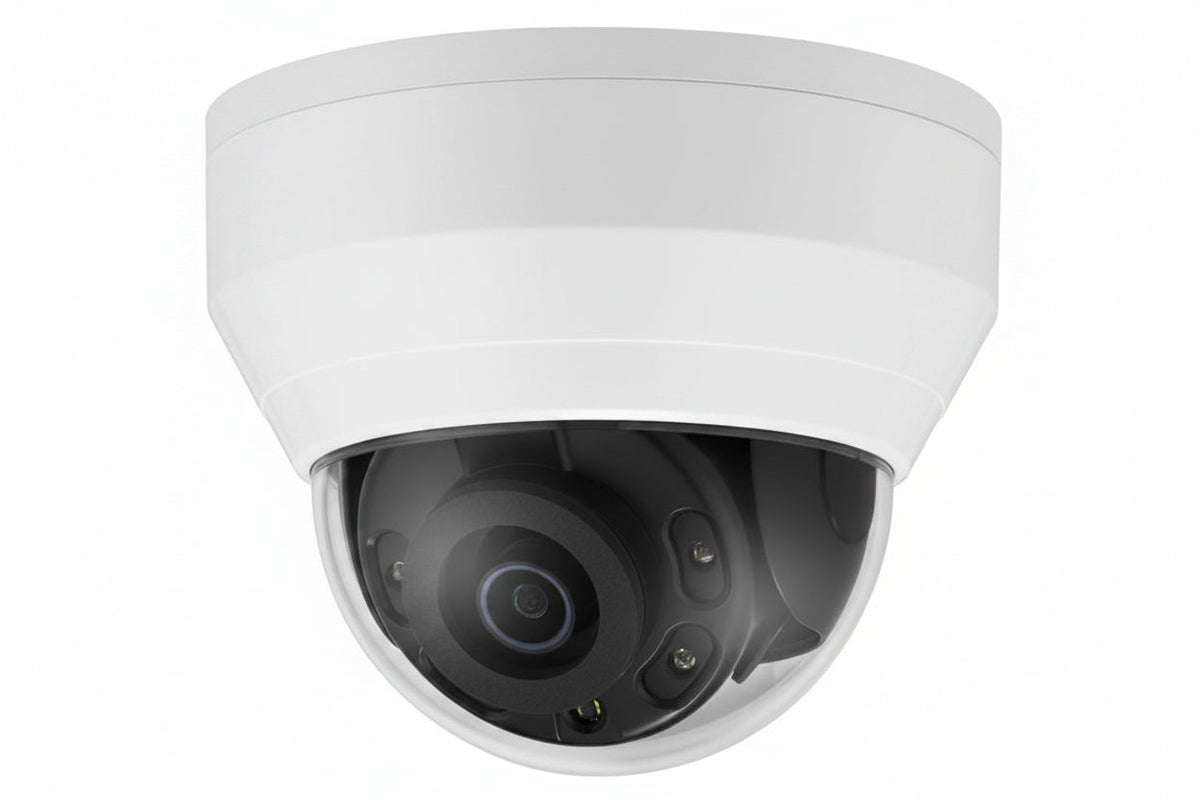

Hanwha QND-8010R Q-Series 5MP IR Dome Camera, 2.88mm Fixed Lens, White

The Hanwha QND-8010R is a 5MP indoor IR dome network camera from the Q-Series, built for general-purpose surveillance where a wide fixed view and night coverage are needed. It pairs a 2.8 mm fixed lens with 120dB WDR and 20 m of IR range, and powers over PoE for a single-cable install. Hallway view support and analog video out make it a practical pick for installers working in corridors or commissioning on site.

Key features

• Records 5MP video at 30 fps at all resolutions with H.265 and H.264, plus MJPEG and multiple streaming.
• Day & Night (ICR) and 120dB WDR help keep the image usable in changing light.
• Built-in analytics cover defocus, directional, motion, enter/exit, tampering and virtual line detection.
• A micro SD slot supports cards up to 128GB for onboard storage.
• Hallway view support suits long, narrow spaces, and analog video out simplifies setup.

Specifications

Brand: Hanwha

Model: QND-8010R

Product Series: Q

Product Type: Network Camera

Form Factor: Dome

Color: White

Indoor/Outdoor: Indoor

Effective Camera Resolution: 5MP

Image Sensor Type: CMOS

Maximum Frame Rate: 30fps

Lens Type: Fixed

Focal Length: 2.8mm

Maximum Aperture: f/2

Field of View (Vertical): 76.50°

Shortest Shutter Speed: 1/12000 Second

Longest Shutter Speed: 1/5 Second

Night Vision Type: Infrared (IR)

Night Vision Distance: 65.62'

Wide Dynamic Range: Yes

Storage Type: Memory Card

Network (RJ-45): Yes

Connectivity Technology: Wired

Remote Management: Yes

NDAA Compliant: Yes

Operating Temperature: 14°F to 122°F

Operating Humidity: 90%

Diameter: 4.30″

Height: 3.40″

Weight: 12.70oz

Installation notes

This is an indoor camera, so mount it in a protected location and plan a single network run to a PoE port or injector. Use the analog video out during aiming and focus checks, and keep the IR view clear of nearby walls or glass that could reflect light back into the lens.
