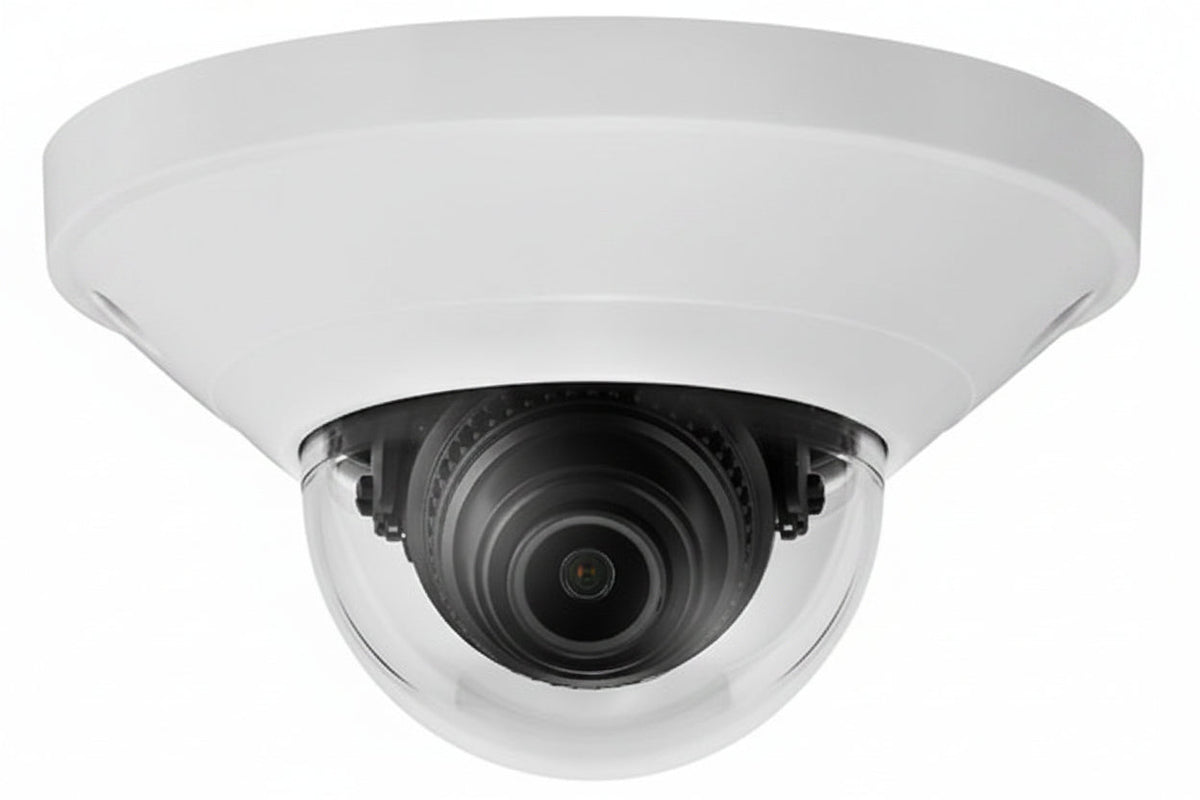

Hanwha QND-6011 Q-Series 2MP Dome Camera, 2.8mm Fixed Lens, White

The Hanwha QND-6011 is a 2MP Q-Series dome network camera with a fixed 2.8mm lens, finished in white. It is built for indoor video surveillance where a small, unobtrusive camera is needed, such as hallways and retail spaces. It stands out with its ultra-compact housing, 120 dB WDR and built-in people counting for retail business intelligence.

Key features

• Delivers 30fps at all resolutions with H.265 and H.264, and also supports MJPEG with multiple streaming.
• Handles high-contrast scenes with 120 dB WDR and a Day and Night (ICR) mode.
• Includes defocus, motion and tampering detection.
• Offers people counting for retail business intelligence, plus hallway view support.
• Records locally to a micro SD card of up to 128GB.
• Runs on PoE or 12VDC.

Specifications

Brand: Hanwha

Model: QND-6011

Product Series: Q

Product Line: WiseNet

Product Type: Network Camera

Form Factor: Dome

Color: White

Effective Camera Resolution: 2MP

Image Sensor Type: CMOS

Lens Type: Fixed

Focal Length: 2.8mm

Maximum Aperture: f/2

Field of View (Vertical): 113.70°

Aspect Ratio: 16:9

Maximum Frame Rate: 30fps

Wide Dynamic Range: Yes

Night Vision: Yes

Night Vision Type: Visible-Light Illumination

Storage Type: SD Card

Network (RJ-45): Yes

Remote Management: Yes

Connectivity Technology: Wired

Mount Type: Corner Mount

Indoor/Outdoor: Indoor

Ingress Protection Rating: IP42

Operating Temperature: 14°F to 131°F

Operating Humidity: 90%

Diameter: 3.90″

Height: 2.20″

NDAA Compliant: Yes

Country of Origin: VN

Installation notes

This is an indoor camera, so mount it where it stays within its rated temperature and humidity range and out of direct weather exposure. With PoE or 12VDC available, run a single network cable where possible and check the field of view and image focus on a live stream before finishing the installation.
