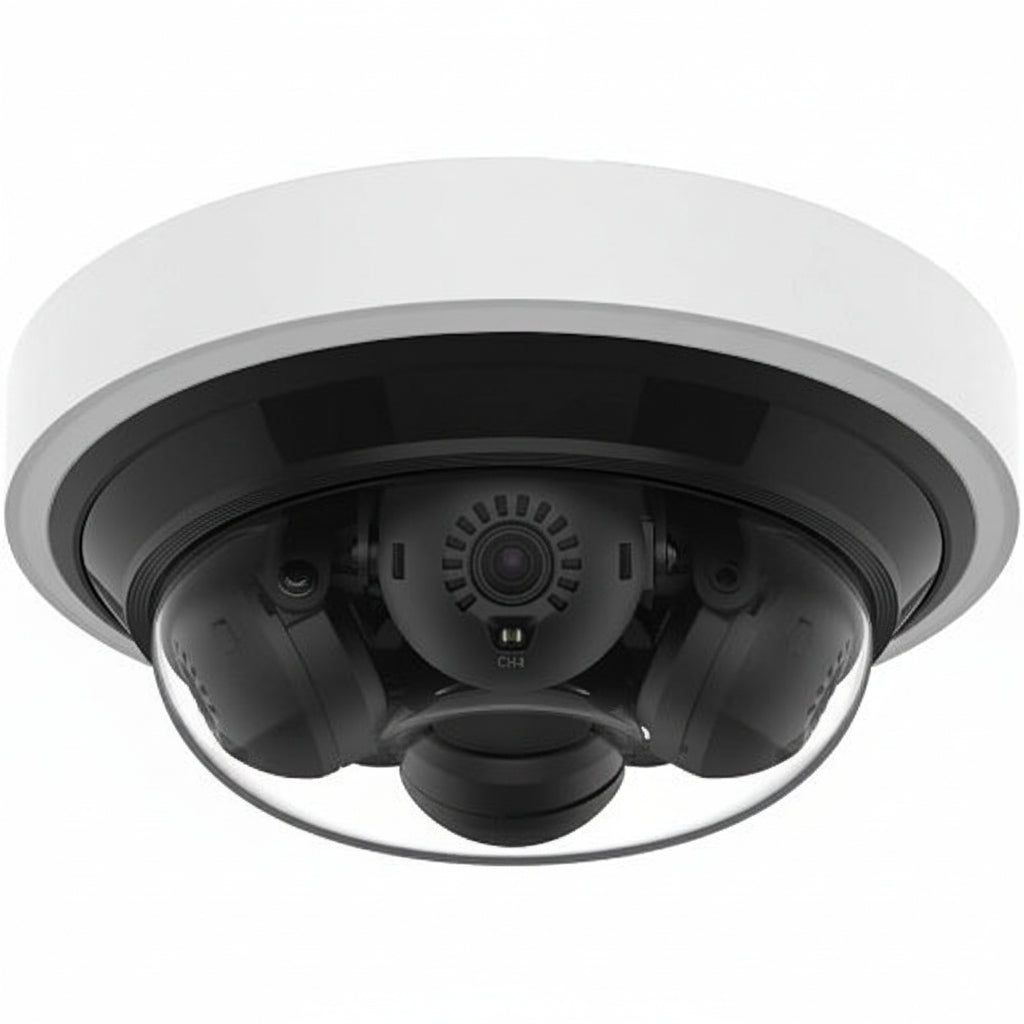

Hanwha PNM-C16013RVQ 4MP 4x IR Mini Multi-directional Camera

The Hanwha PNM-C16013RVQ is a multi-directional network camera that puts four 4MP sensors, each with a 3.19mm fixed lens, in a single white dome. It covers several directions from one mounting point, which suits installers and businesses watching intersections, corridors and similar areas. AI-based object classification, built-in IR and IP66/IK09 durability are what set it apart.

Key features

• Four-channel AI analytics classify people, faces, vehicles and license plates.
• AI loitering detection and line crossing detection are supported.
• WiseNR, auto prefer shutter control and WiseStream are AI-based.
• IR viewable length is 20m (65.6 ft), and hallway mode is supported.
• Cybersecurity includes TPM 2.0 and FIPS 140-2 certification.
• The housing is rated IP66, NEMA4X and IK09.

Specifications

Brand: Hanwha

Model: PNM-C16013RVQ

Product Type: Network Camera

Number of Sensors: 4

Effective Camera Resolution: 4MP

Maximum Video Resolution: 1600 x 1200

Maximum Resolution: 1280 x 720

Maximum Frame Rate: 15fps

Aspect Ratio: 16:9

Image Sensor Type: CMOS

Lens Included: Yes

Lens Type: Fixed

Lens Mount Type: M12

Focal Length: 3.19mm

Maximum Aperture: f/1.2

Field of View: Diagonal

Field of View (Horizontal): 97.0°

Field of View (Vertical): 54.00°

Shortest Shutter Speed: 1/12000 Second

Longest Shutter Speed: 1/5 Second

Wide Dynamic Range: Yes

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 65.62'

Features: Built-in IR LED

Video Formats: H.264

Storage Type: Memory Card

Network (RJ-45): Yes

Connectivity Technology: Wired

Remote Management: Yes

Form Factor: Dome

Color: White

Durability: Impact Resistant

Ingress Protection Rating: IP66

Impact Protection Rating: IK09

Operating Humidity: 95%

Minimum Operating Temperature: -40°F

Maximum Operating Temperature: 131°F

Diameter: 7.90″

Weight: 3.04lb

Country of Origin: VN

Installation notes

Mount the camera on a solid surface and aim each of the four sensors at its intended area before final tightening. Confirm each channel's view and the analytics settings during commissioning, and seal the cable entry so the outdoor rating is preserved.
