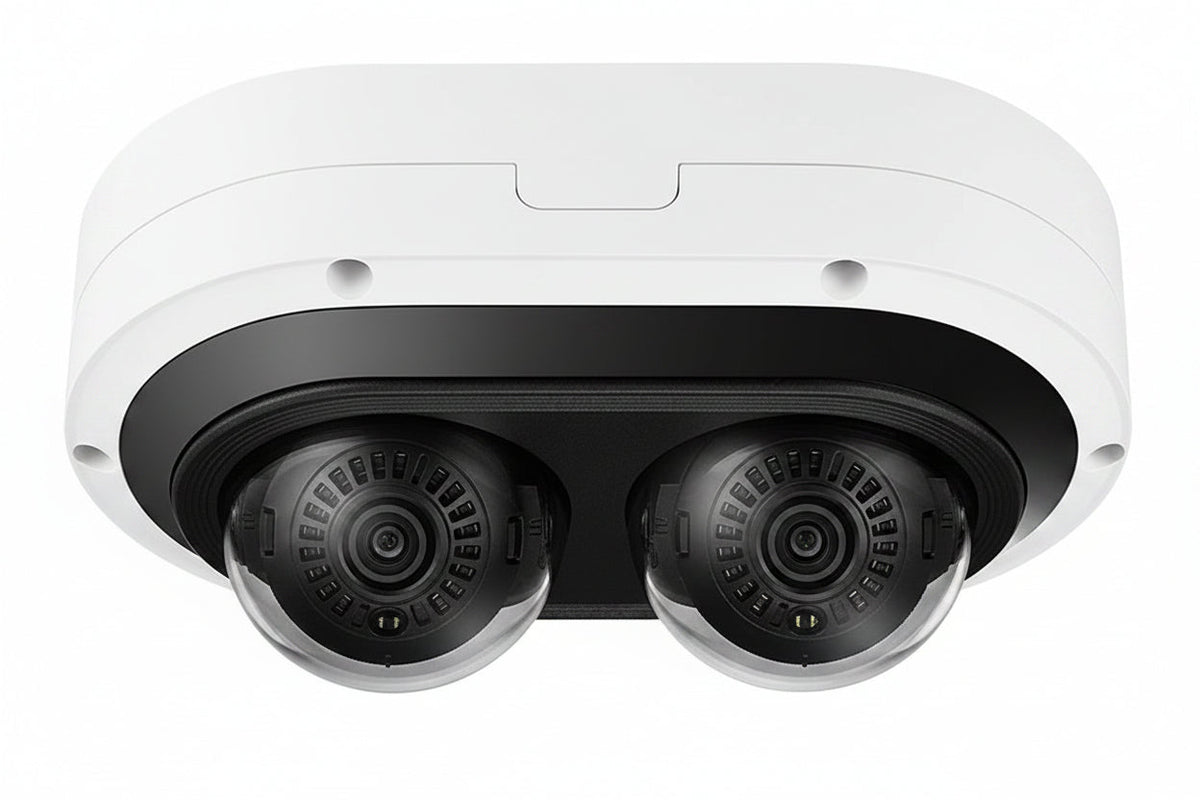

Hanwha PNM-C12083RVD P-Series 6MP Outdoor IR Vandal Dome IP Camera, 3.54-6.69mm Lens, White

The Hanwha PNM-C12083RVD is a dual-sensor, multi-directional outdoor dome network camera from the P-Series, with two 6MP imagers, built-in IR and an AI engine that classifies people, faces, vehicles and license plates. It suits businesses and corporate buildings that need wide outdoor coverage from a single vandal-rated housing. The IK10 impact rating, IP66 and NEMA4X protection, and a TPM 2.0 module (FIPS 140-2 certified) stand out.

Key features

• The AI engine classifies detected objects as person, face, vehicle or license plate, and generates analytics events from them.
• WiseNR II noise reduction, WiseStream III, auto prefer shutter control and extremeWDR (120 dB) help with difficult lighting.
• A 3.54-6.69mm motorized varifocal lens with a 78° tilt angle allows the view to be set without changing lenses.
• IR illumination reaches 25m (82ft) depending on the scene, and the camera records in color at 0.16 lux or at 0 lux with the IR LEDs on.
• The housing is rated IP66, IK10 and NEMA4X for outdoor and vandal-prone locations.
• TPM 2.0 (FIPS 140-2 certified) provides hardware-based security.

Specifications

Brand: Hanwha

Model: PNM-C12083RVD

Product Series: P

Product Line: WiseNet

Product Type: Network Camera

Form Factor: Dome

Number of Sensors: 2

Image Sensor Type: CMOS

Effective Camera Resolution: 6MP

Maximum Resolution: 3328x1872

Maximum Frame Rate: 15fps

Video Formats: H.264

Lens Type: Varifocal (included)

Focal Length: 3.54-6.69mm

Maximum Aperture: f/1.67

Minimum Aperture: f/2.64

Shutter Speed: 1/5 second to 1/12000 second

Wide Dynamic Range: Yes

Features: Back Light Compensation (BLC)

Night Vision: Yes, Infrared (IR)

Night Vision Distance: 82.02 ft

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Operating Temperature: -40°F to 131°F

Operating Humidity: 95%

Mount Type: Conduit Box Mount

Connectivity: Wired, Network (RJ-45)

Storage Type: Memory Card

Remote Management: Yes

Dimensions (L x W x H): 5.3″ x 8.5″ x 3.7″

Color: White

TAA Compliant: Yes

NDAA Compliant: Yes

Country of Origin: KR

Installation notes

This camera uses a conduit box mount, so plan the cable run and mounting surface before you install it. Set the lens and aim each sensor on site, and check the IR range against the actual scene, since reach depends on the surroundings.
