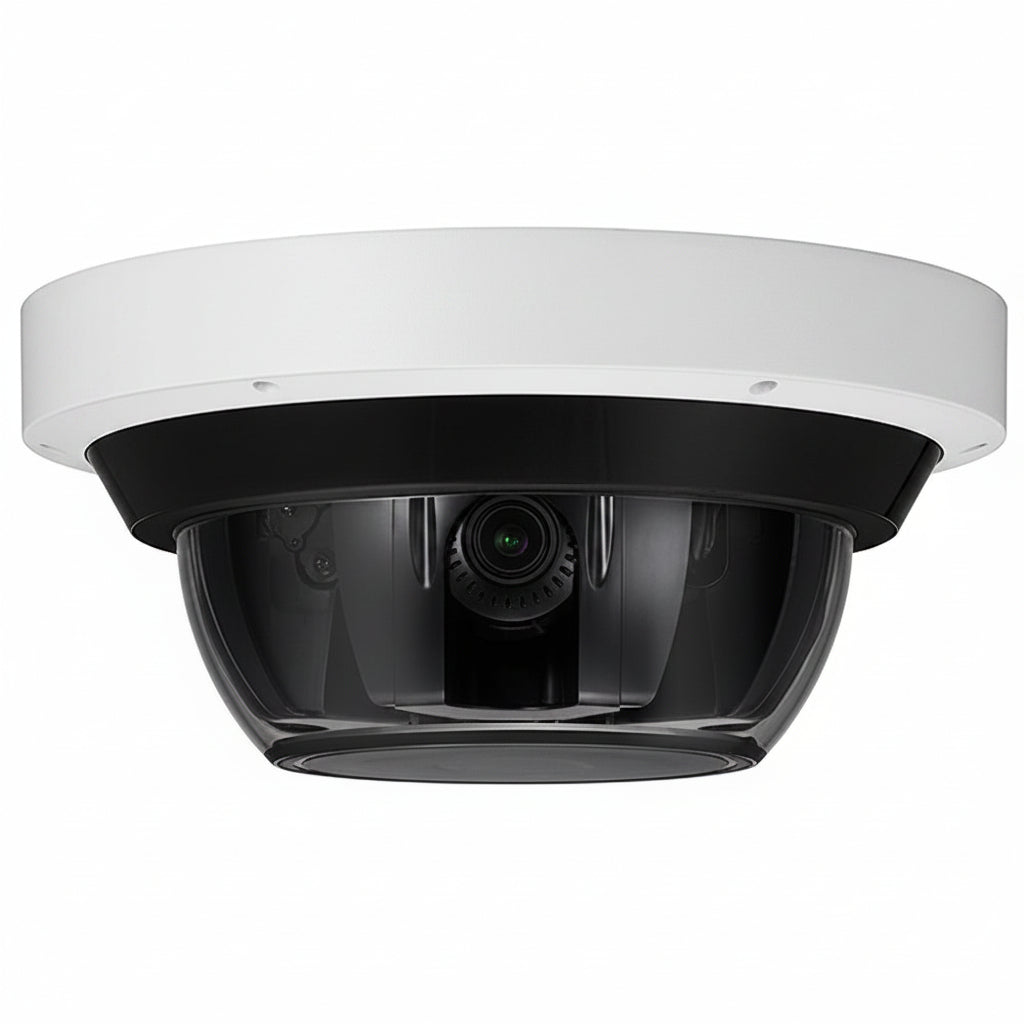

Hanwha PNM-9085RQZ1 20MP (5MP x 4) Multi-Sensor Multi-Directional PTRZ Camera, 4.13-9.4mm Motorized PTRZ Varifocal Lens, IP66, IK10 (Replaces PNM-9085RQZ)

The Hanwha PNM-9085RQZ1 is a multi-directional network camera that combines four 5MP CMOS sensors for 20MP of effective resolution in one outdoor dome housing. It suits businesses and installers who need wide area coverage from a single pendant-mounted unit rather than several separate cameras. Motorized PTRZ adjustment, IR night vision, and IP66 and IK10 ratings make it a good fit for exposed locations. It replaces the PNM-9085RQZ.

Key features

• Motorized pan, tilt, rotate and zoom (PTRZ) support lets you adjust each view without a ladder-side lens twist.
• Each sensor can stream at up to 30 fps at 5MP using H.265 or H.264.
• Codec support covers H.265, H.264 and MJPEG.
• Multi-streaming lets you send more than one stream from the camera.
• Four sensors cover several directions from a single mounting point.

Specifications

Brand: Hanwha

Model: PNM-9085RQZ1

Product type: Network Camera

Effective camera resolution: 20MP

Number of sensors: 4

Image sensor type: CMOS

Maximum video resolution: 1600 x 1200

Maximum frame rate: 30fps

Video formats: MJPEG

Lens type: Varifocal (lens included)

Focal length: 4.13-9.4mm

Maximum focal length: 9.40mm

Maximum aperture: f/1.9

Minimum aperture: f/2.67

Field of view: Diagonal

Field of view (horizontal): 87.6°

Shortest shutter speed: 1/12000 second

Longest shutter speed: 2 second

Wide dynamic range: Yes

Night vision: Yes

Night vision type: Infrared (IR)

Night vision distance: 98.43'

Form factor: Dome

Mount type: Pendant Mount

Indoor/outdoor: Outdoor

Ingress protection rating: IP66

Impact protection rating: IK10

Durability: Impact Resistant

Color: White

Connectivity technology: Wired

Network (RJ-45): Yes

Storage type: SD Card

Remote management: Yes

Features: Alarm Triggering

Minimum operating temperature: -40°F

Maximum operating temperature: 131°F

Operating humidity: 90%

Diameter: 12.40″

Weight: 11.46 lb

TAA compliant: Yes

Country of origin: KR

Installation notes

At 11.46 lb, the camera needs a pendant mount and mounting surface rated for the load, so confirm the structure before drilling. Aim and zoom each of the four sensors during commissioning, using the motorized PTRZ controls, and seal the cable entry to keep the IP66 rating intact.
