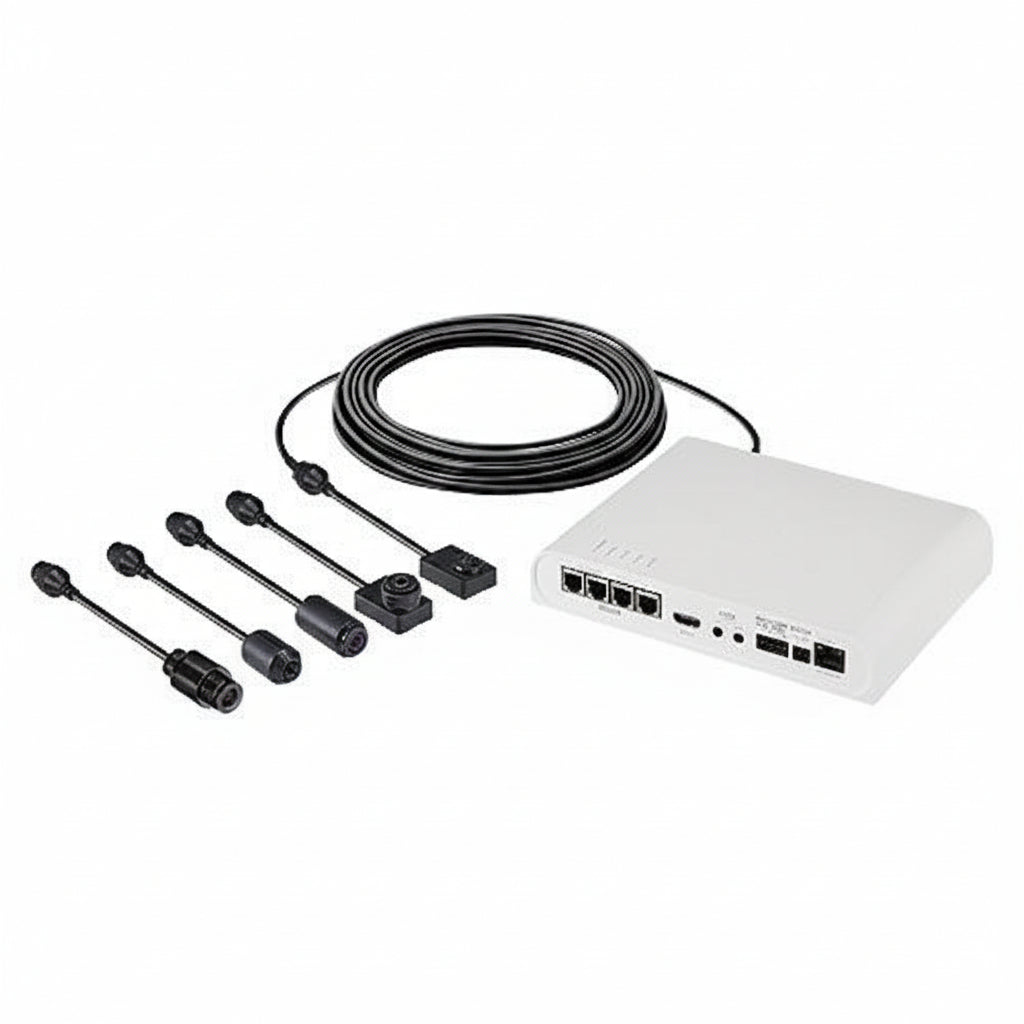

Hanwha PNM-9000QB P-Series 2MP 4-Channel Remote Head Camera Main Module, White

The Hanwha PNM-9000QB is the main module of a P-Series remote head camera system, supporting four 2MP channels from one unit. It suits installers and businesses who need discreet multi-point coverage fed through a single network connection. Notable points are 120dB extreme WDR, HDMI single or quad view output, and onboard microSDXC storage.

Key features

• Records 2MP (1920x1080) video at 30 fps using H.265, H.264 or MJPEG, with multiple streaming.
• Extreme WDR (120dB), defog and DIS help with difficult lighting and conditions.
• Analytics include tampering, loitering, directional, fog and audio detection, plus motion detection.
• An HDMI monitor output provides single or quad view.
• Two microSDXC slots (up to 2x256GB) allow local storage, alongside Hallway View, WiseStream II and LDC.
• Powers over PoE or 12V DC and supports bi-directional audio.

Specifications

Brand: Hanwha

Model: PNM-9000QB

Product series: P

Product type: Camera

Color: White

Maximum video resolution: 1920 x 1080

Maximum frame rate: 30fps

Aspect ratio: 16:9

Image sensor type: CMOS

Shutter speed: 1/12,000 second to 2 seconds

Video formats: H.264

Recording formats: Full HD

Wide dynamic range: Yes

Lens included: No

Storage type: Memory card

Connectivity: Wired

Network (RJ-45): Yes

HDMI: Yes

Remote management: Yes

Input voltage: 12V DC

Mount type: Wall mount

Dimensions (H x W x D): 1.46″ x 7.87″ x 5.75″

Weight: 1.58 lb

Operating temperature: -40°F to 113°F

Operating humidity: 0-95% RH (non-condensing)

NDAA compliant: Yes

Installation notes

No lens is included, so plan the lens and remote head selection before you mount the module. Place the main module where the network and power runs are easy to reach, and confirm each channel's view and the HDMI output during commissioning.
