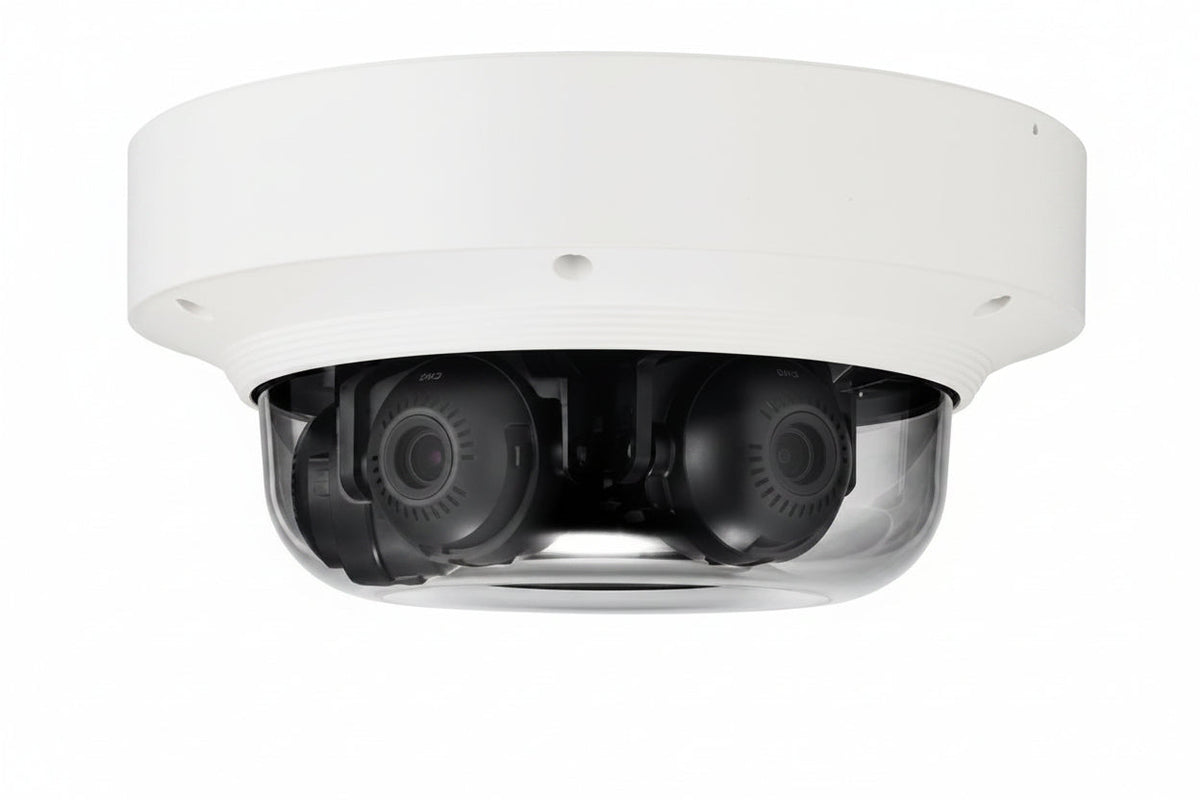

Hanwha PNM-8082VT P-Series 2MP 3-Channel Multi-Directional Camera, 3-6mm Varifocal Lenses, White

The Hanwha PNM-8082VT is a P-Series multi-directional network camera that puts three 2MP sensors in one outdoor dome housing and runs them on a single IP address. It suits installers and businesses who need to cover corners, intersections, hallways or building perimeters without mounting and cabling several separate cameras. Its motorized varifocal lenses, 150dB WDR and IP66, IK10 and NEMA4X protection make it a practical choice for exposed locations.

Key features

• Three 2MP sensors combine for up to 6MP at 30 fps while sharing one IP address.
• Each sensor has a motorized varifocal 3.0-6 mm lens, so the field of view can be adjusted per direction.
• H.265, H.264 and MJPEG streaming is supported, along with WiseStream II compression.
• Analytics include defocus detection, loitering, directional detection, tampering, motion detection and object enter or exit an area.
• Hallway view is supported for each sensor, and two microSD/SDHC/SDXC card slots allow onboard recording.
• It runs on PoE+ (IEEE 802.3at) and is rated IP66, IK10 and NEMA4X.

Specifications

Brand: Hanwha

Model: PNM-8082VT

Product Series: P

Product Type: Network Camera

Form Factor: Dome

Mount Type: Box Mount

Color: White

Number of Sensors: 3

Image Sensor Type: CMOS

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1600 x 1200

Maximum Frame Rate: 30fps

Aspect Ratio: 16:9

Lens Type: Varifocal (lens included)

Focal Length: 3-6mm

Optical Zoom: 2.0x

Maximum Aperture: f/3.1

Minimum Aperture: f/2.2

Field of View (Horizontal): 107.0°

Field of View (Vertical): 57.00°

Shortest Shutter Speed: 1/12000 Second

Longest Shutter Speed: 2 Second

Wide Dynamic Range: Yes

Video Formats: H.264

Recording Formats: Full HD

Analog Video Signal Format: CVBS

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Features: Alarm Triggering

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Impact Resistant

Operating Temperature: -40°F to 131°F

Operating Humidity: 95%

Diameter: 9.90″

Width: 10.00″

Height: 5.00″

NDAA Compliant: Yes

Country of Origin: KR

Installation notes

Plan the mounting position and cable run before you install, since the camera needs a PoE+ (802.3at) source on its network connection. Aim and focus each of the three lenses during commissioning, and confirm every sensor's view covers its intended area before sealing the housing.
