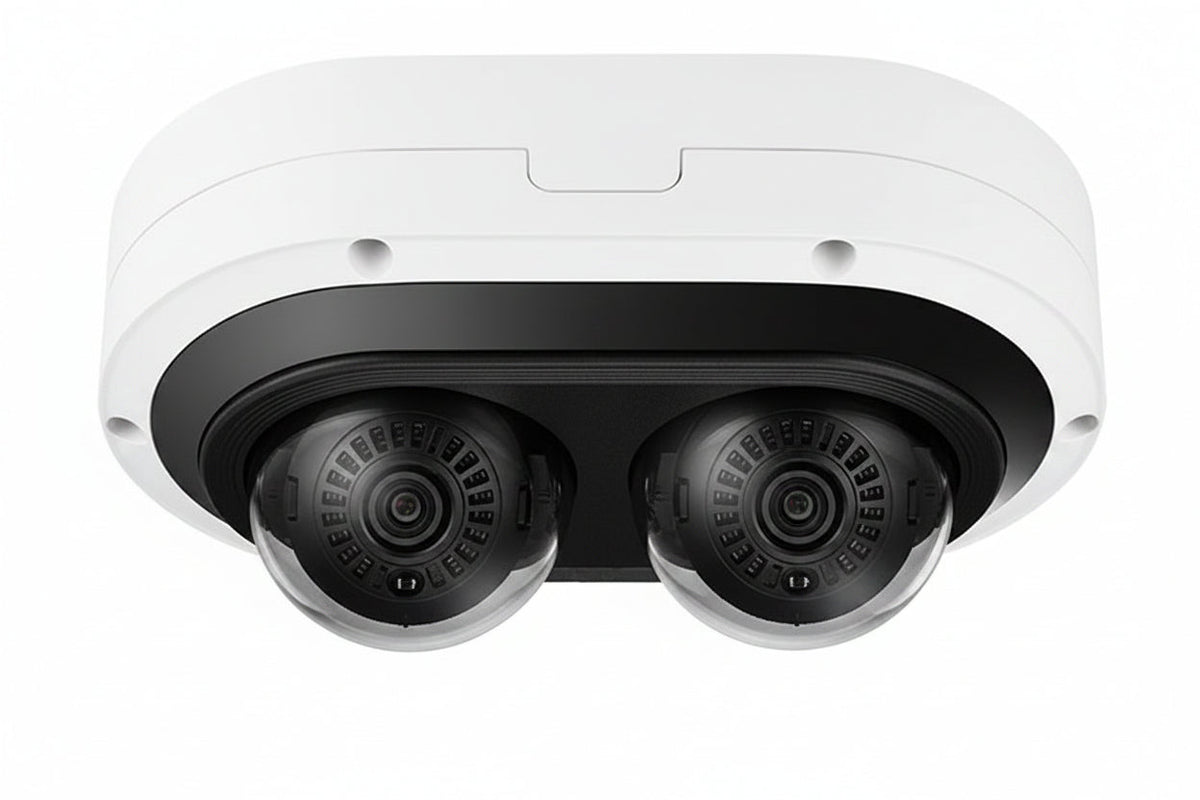

Hanwha PNM-12082RVD P Series 6MPx2 Multi-Directional IP Dome Camera, 3.54-6.69mm Motorized Varifocal Lens, Outdoor, Vandal-Rated, IP66, IK10

The Hanwha PNM-12082RVD is an outdoor, vandal-rated dome network camera from the P Series that carries two 6MP sensors in a single housing. It suits installers and businesses that need to cover more than one direction from one mounting point with a single network connection. The motorized varifocal lens, IR night vision and IP66/IK10 housing make it a practical pick for exposed locations.

Key features

• Two sensors in one dome let you cover multiple directions from one location.
• WiseNR, WiseStreamII and extremeWDR (120 dB) help with noise, bandwidth and high-contrast scenes.
• Infrared reaches 25m (82') depending on the scene, and the camera is rated 0 lux with the IR LEDs on.
• TPM 2.0 (FIPS 140-2 certified) provides hardware-backed security.
• The housing is rated IP66, IK10 and NEMA4X for weather and impact resistance.
• Triple codec support covers H.265, H.264 and MJPEG.

Specifications

Model: PNM-12082RVD

Brand: Hanwha

Product series: P

Product type: Network camera

Form factor: Dome

Color: White

Number of sensors: 2

Image sensor type: CMOS

Effective camera resolution: 6MP

Maximum resolution: 3328x1872

Maximum frame rate: 15 fps

Lens type: Motorized varifocal, lens included

Focal length: 3.54-6.69mm

Field of view (horizontal): 96.0°

Field of view (vertical): 51.00°

Maximum aperture: f/1.67

Minimum aperture: f/2.64

Color illumination: 0.16 lux (F1.67, 1/30 sec, 30 IRE)

Night vision: Infrared (IR), 82.02'

Wide dynamic range: Yes

Shutter speed: 1/12000 second to 2 seconds

Tilt angle: 78°

Video formats: H.265 / H.264 / MJPEG

Features: Audio detection

Storage: Memory card

Network: RJ-45, wired

Remote management: Yes

Mount type: Box mount

Indoor/outdoor: Outdoor

Ingress protection: IP66

Impact protection: IK10

Enclosure rating: NEMA4X

Operating temperature: -40°F to 131°F

Operating humidity: 95%

Dimensions (W x H x D): 8.50″ x 3.70″ x 5.30″

TAA compliant: Yes

Country of origin: KR

Installation notes

Choose a mounting position where the IR output will not bounce back off nearby walls, soffits or other close surfaces, and seal the cable entry to keep moisture out of the housing. Set the field of view with the motorized lens during commissioning, and confirm both sensor views before final tightening.
