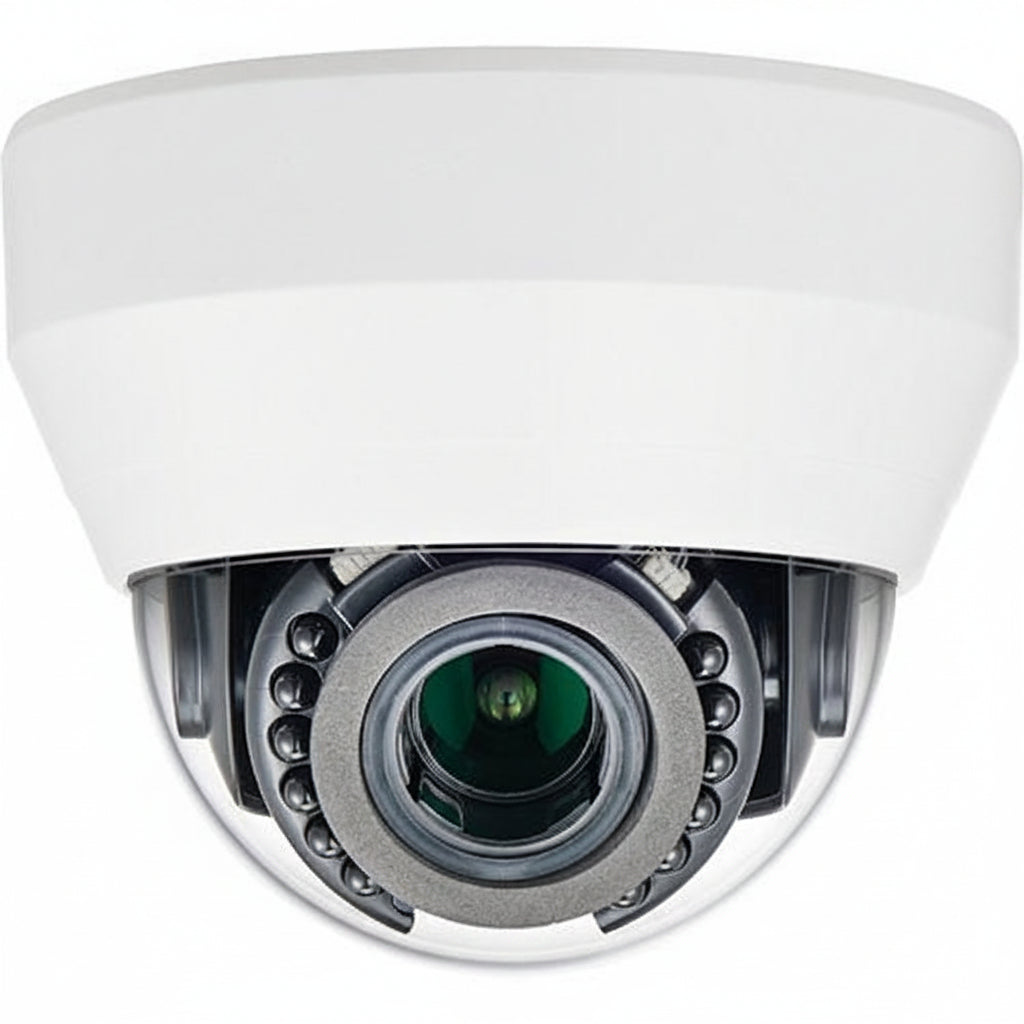

Hanwha LND-6012R L-Series 2MP IR Dome Camera, 2.8mm Fixed Lens, White

The Hanwha LND-6012R is a 2MP indoor IR dome network camera from the L-Series, built for general-purpose video monitoring in offices, shops and similar interior spaces. It records 1920 x 1080 video at 30fps from a fixed 2.8mm lens, and it adds infrared night vision, 120 dB WDR and PoE power. The hallway view option and microSD slot on the camera make it a practical choice for corridors and small sites that need local recording.

Key features

• Records 2MP (1920 x 1080) video at 30fps at all resolutions using H.264.
• Supports H.264 and MJPEG codecs with multiple streaming, plus WiseStream II.
• Switches between day and night modes with an ICR, and 120 dB WDR helps with high-contrast scenes.
• Built-in IR LEDs give a viewable length of 20m in low light.
• Includes tampering and motion detection, and a hallway view mode for narrow spaces.
• Takes a microSD/SDHC card up to 32GB for onboard storage and runs on PoE.

Specifications

Brand: Hanwha

Model: LND-6012R

Product Series: L

Product Type: Dome Camera

Effective Camera Resolution: 2MP

Maximum Video Resolution: 1920 x 1080

Maximum Frame Rate: 30fps

Aspect Ratio: 16:9

Image Sensor Type: CMOS

Lens Type: Fixed Focus

Focal Length: 2.8mm

Maximum Aperture: f/2

Field of View (Vertical): 61.50°

Shortest Shutter Speed: 1/12,000 Second

Longest Shutter Speed: 2 Second

Wide Dynamic Range: Yes

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 65.62'

Video Formats: H.264

Recording Formats: Full HD

Storage Type: Memory Card

Connectivity Technology: Wired

Network (RJ-45): Yes

Remote Management: Yes

Form Factor: Dome

Mount Type: Box Mount

Indoor/Outdoor: Indoor

Color: White

NDAA Compliant: Yes

Height: 3.40″

Diameter: 4.33″

Weight: 0.60lb

Minimum Operating Temperature: 14°F

Maximum Operating Temperature: 131°F

Operating Humidity: 90% RH

Installation notes

This is an indoor camera, so mount it where it is protected from the weather, and run a single Ethernet cable from a PoE switch or injector to the RJ-45 port. Aim it with the IR range in mind and avoid placing it close to glass or reflective surfaces that can bounce the IR light back into the lens at night.
