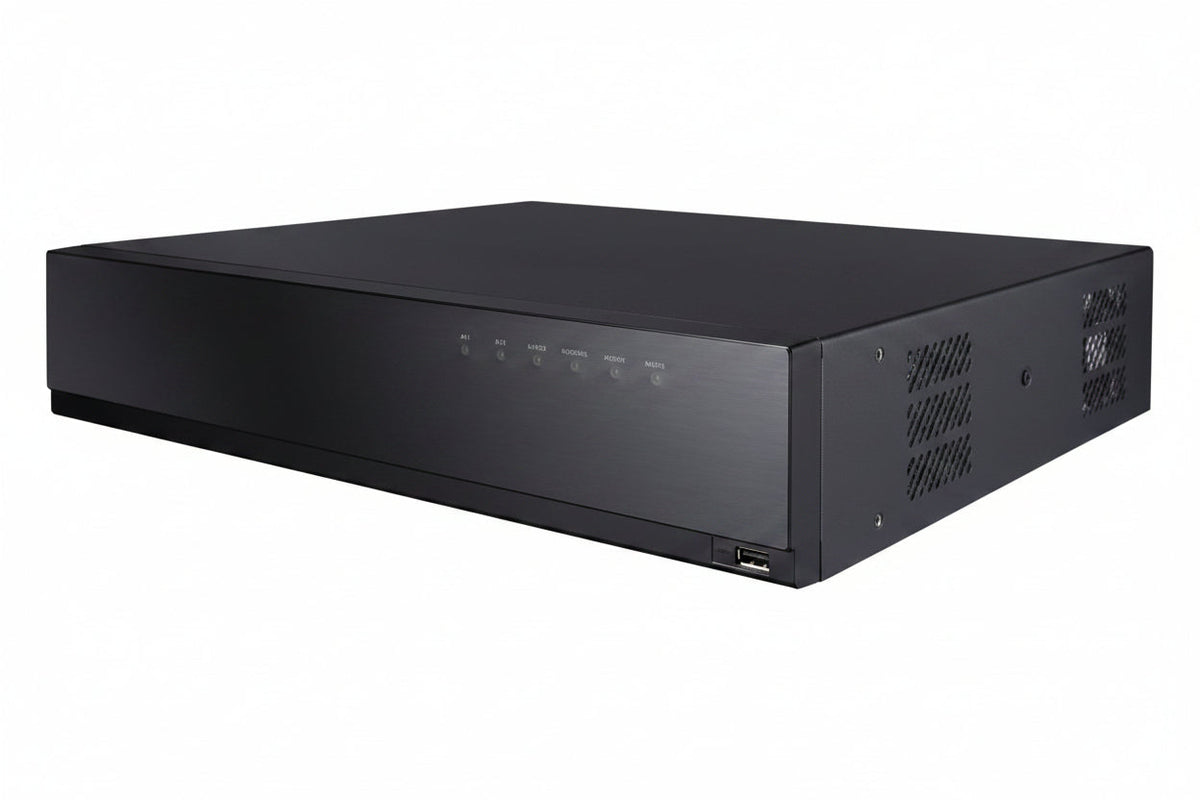

Hanwha HRX-835A-6TB 4K 8-Channel Pentabrid DVR, 6TB

The Hanwha HRX-835A-6TB is an 8-channel Pentabrid DVR that records from AHD, HDTVI, HDCVI, CVBS and IP sources, so it can serve mixed or upgrading camera systems. It suits installers and businesses that want one recorder to handle several camera types, with 8MP support and a 6TB hard drive included. The four SATA bays and dual-monitor output give it room to grow and flexibility at the viewing station.

Key features

• Accepts AHD, HDTVI, HDCVI, CVBS and IP inputs in a single 5-in-1 recorder.
• Supports up to 10 total channels, made up of 8 analog and 2 network, at resolutions up to 8MP.
• Records in H.265, H.264 and MJPEG, with 8fps at 8MP, 12fps at 5MP, 15/12fps at 4MP and 30/25fps at 2MP.
• Offers coaxial control and P2P service with QR code connection.
• Has four SATA HDD slots, each taking up to 6TB, for a 24TB maximum.
• Outputs to two monitors over HDMI and VGA in Expand mode.

Specifications

Brand: Hanwha

Model: HRX-835A-6TB

Product type: Digital Video Recorder

Number of channels: 8

Storage included: 6TB HDD

Video formats: H.264

Maximum frame rate: 8fps

HDMI: Yes

Color: Black

Depth: 15.15″

Weight: 13.20 lb

Environmentally friendly: Yes

Environmental certification: FCC

Installation notes

Place the recorder in a ventilated rack or shelf with clearance around it, and allow for its 15.15″ depth. Confirm each camera's signal type and resolution at the recorder after cabling, and check the coaxial control and monitor outputs during commissioning.
