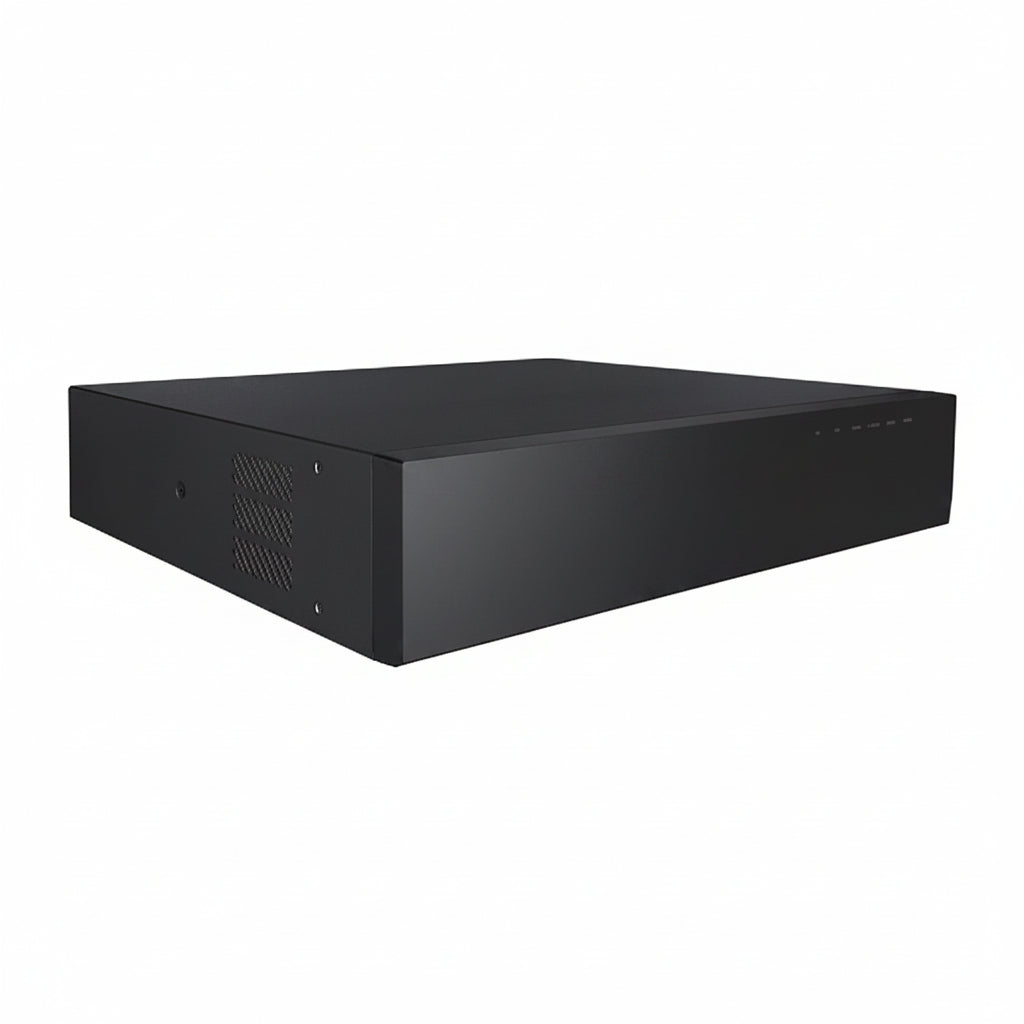

Hanwha HRX-1635-8TB 16-Channel Pentabrid DVR, 8TB HDD

The Hanwha HRX-1635-8TB is a 16-channel Pentabrid DVR that records AHD, HDTVI, HDCVI, CVBS and IP cameras on a single unit. It suits installers and businesses that want to keep existing analog coax cabling while adding a couple of IP cameras, and it ships with an 8TB hard drive. Support for up to 8MP recording, H.265 compression and 4 audio inputs with 16 alarm inputs makes it a flexible recorder for mixed-camera sites.

Key features

• Accepts five input types (AHD, HDTVI, HDCVI, CVBS and IP), so mixed camera systems can share one recorder.
• Handles up to 18 channels in total: 16 analog plus 2 network.
• Records with H.265, H.264 or MJPEG compression, at up to 8MP on analog channels.
• Provides 4 audio inputs, 1 audio output, 16 alarm inputs and 4 relay outputs.
• Supports coaxial control and up to 8 SATA hard drives of 6TB each.
• Outputs video over HDMI and VGA, with a separate spot monitor output.

Specifications

Brand: Hanwha

Model: HRX-1635-8TB

Product Model: HRX-1635

Product Type: Video Surveillance Station

Number of Channels: 16

Hard Drive Capacity: 8TB

Storage Capacity: 8TB

Video Formats: H.264

Recording Formats: 4K

Maximum Resolution: 3264 x 2448

Maximum Frame Rate: 30fps

Video Signal Format: NTSC

Bandwidth: 100Mbps

Connectivity Technology: Wired

Ethernet: Yes

HDMI: Yes

Number of VGA Outputs: 1

Composite Video In: Yes

Composite Video Out: Yes

Remote Management: Yes

Power Consumption: 200.0000W

Width: 17.30″

Depth: 15.10″

Height: 3.50″

Country of Origin: VN

Installation notes

Mount the recorder in a ventilated rack or on a shelf with clearance around it, since a unit holding several hard drives generates heat. Label each coax run and alarm wire at the recorder before commissioning, and confirm each channel's camera type and recording settings once everything is connected.
