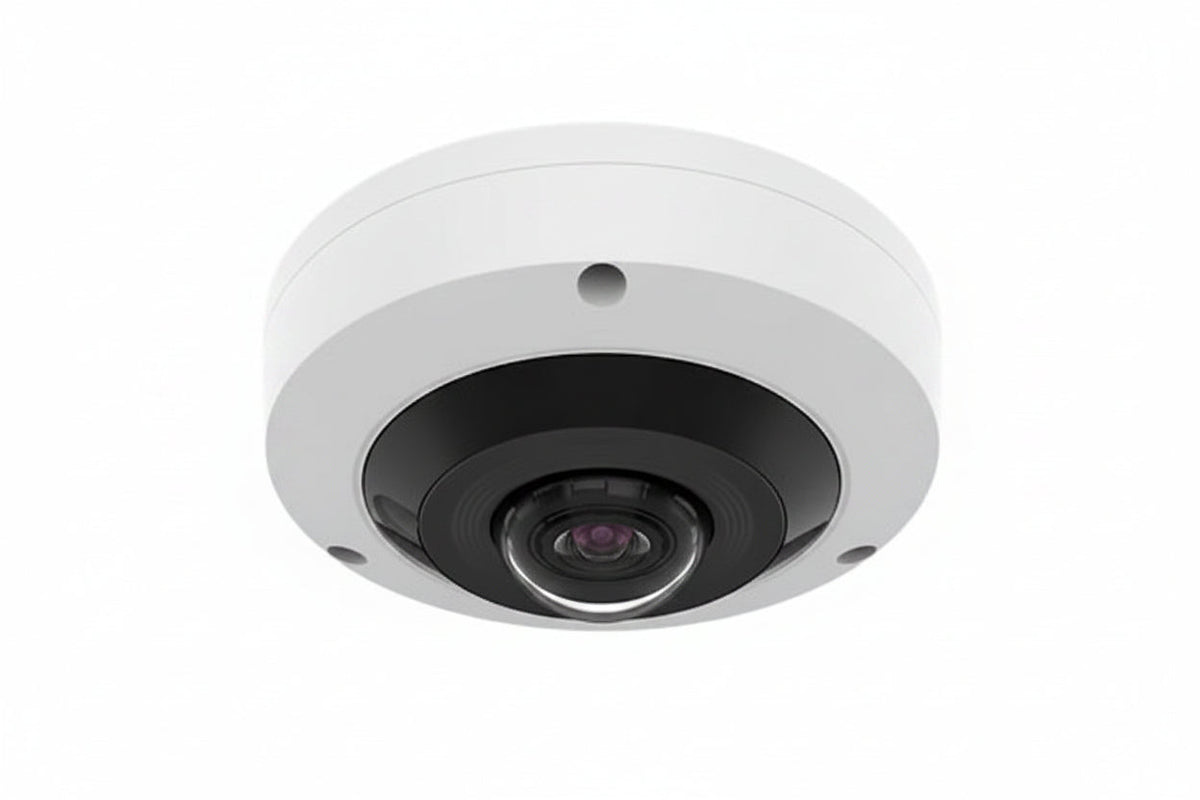

Hanwha HCF-8011RV HD+ Series 5MP IR Wisenet HD+ Outdoor Fisheye Camera, 1.16mm Fixed Lens

The Hanwha HCF-8011RV is a 5MP outdoor fisheye camera from the HD+ series, built for installers and businesses that need to cover a wide area from a single point. It pairs a 1.16mm fixed lens with built-in infrared for night viewing and an aluminum, impact-resistant housing. The long coaxial run of up to 300m and the choice of 24V AC or 12V DC power make it a flexible fit for analog HD retrofit jobs.

Key features

• Delivers color images down to 0.5 lux at F2.25 and 0.005 lux in black and white.
• Switches between day and night with an ICR filter, and adds BLC, WDR and SSDR to handle difficult lighting.
• Built-in IR gives a viewable length of 10m (32.81').
• Carries video up to 300m over 5C2V coaxial cable.
• Runs on either 24V AC or 12V DC power.
• Rated IP66 for weather resistance and IK10 for impact protection.

Specifications

Brand: Hanwha

Model: HCF-8011RV

Series: HD+

Form Factor: Fisheye

Effective Camera Resolution: 5MP

Maximum Resolution: 1280 x 720

Maximum Video Resolution: 1600 x 1200

Maximum Frame Rate: 20fps

Analog Video Signal Format: AHD

Video Format: H.264

Image Sensor Type: CMOS

Lens Type: Fixed

Focal Length: 1.16mm

Maximum Aperture: f/2.25

Shortest Shutter Speed: 1/50000 second

Longest Shutter Speed: 1/30 second

Night Vision: Yes, Infrared (IR)

Night Vision Distance: 32.81'

Wide Dynamic Range: Yes

Noise Reduction: 2D Digital Noise Reduction (2DNR)

Remote Management: Yes

Input Voltage: 12V DC

Connectivity: Wired

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Operating Temperature: -22°F to 131°F

Material: Aluminum

Color: White

Diameter: 5.70″

Weight: 1.59 lb

TAA Compliant: Yes

Country of Origin: KR

Installation notes

Choose a mounting spot with a clear, unobstructed view of the area, since a fisheye lens captures a very wide scene from one point. Confirm the power source matches the camera's supported input and check the coax run and connections before final mounting.
