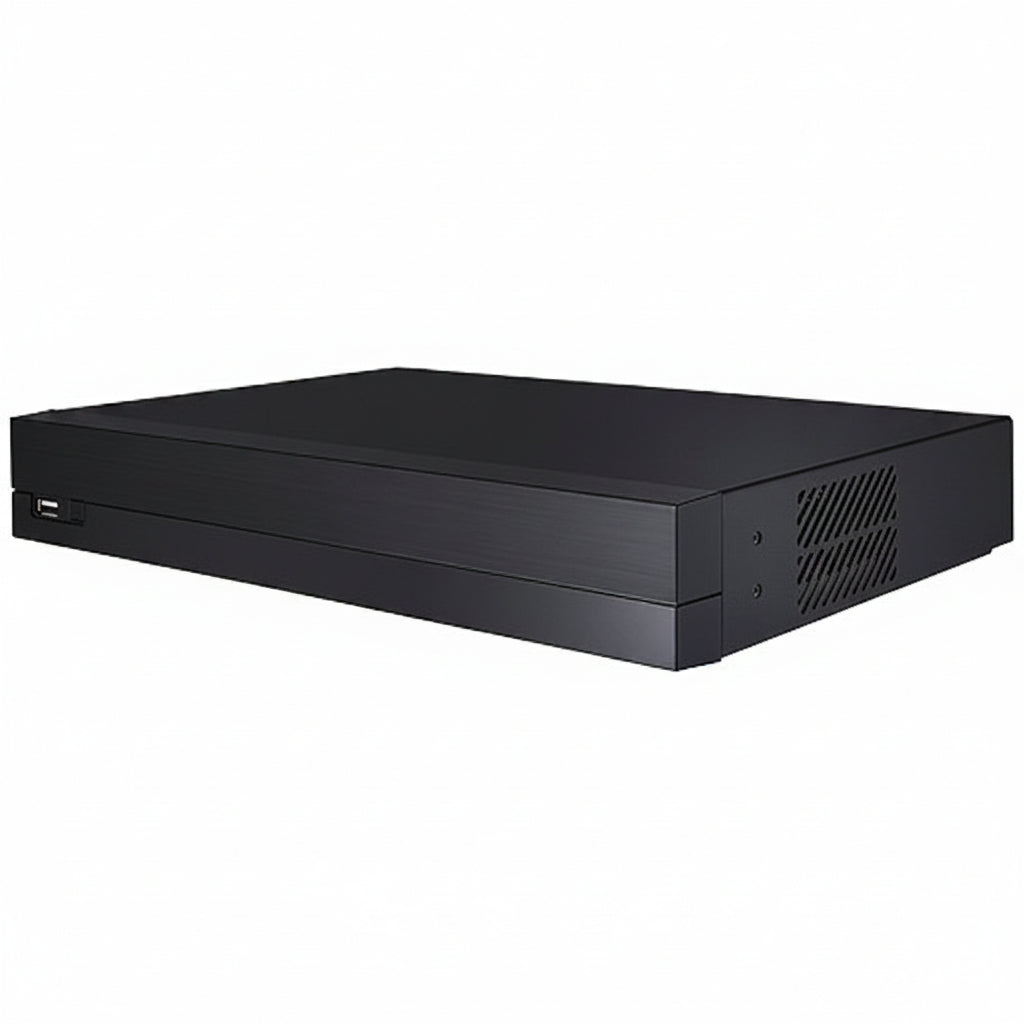

Hanwha ARN-810S Series 8-Channel 8MP Plug and Play NVR, HDD Not Included

The Hanwha ARN-810S-4T is an 8-channel PoE network video recorder that records and manages IP camera video for small to mid-size installs. It suits installers and business or home users who want a plug-and-play setup, with 8 PoE+ ports on a 65W budget so cameras connect straight to the recorder. It supports cameras up to 8MP and offers QR code remote access through Wisenet Viewer and Wisenet Mobile.

Key features

• Records up to 8 channels, with support for 8MP cameras.
• Handles H.265, H.264 and MJPEG codecs, with 60 Mbps of network camera recording.
• Provides 8 PoE+ ports with a 65W budget for plug-and-play camera connection.
• Supports one hard drive of up to 6TB.
• Offers HDMI local monitoring, including 4K HDMI output, along with dual track recording.
• Uses P2P service with a QR code for remote access through Wisenet Viewer and Wisenet Mobile.

Specifications

Brand: Hanwha

Model: ARN-810S-4T

Product Series: A

Product Model: ARN-810S

Product Type: Video Surveillance Station

Number of Channels: 8

Storage Capacity: 4TB

Hard Drive Capacity: 4TB

Bandwidth: 60Mbps

Maximum Resolution: 3264 x 2448

Maximum Frame Rate: 120fps

Recording Formats: 4K

Video Formats: H.264

Connectivity Technology: Wired

Ethernet: Yes

HDMI: Yes

Remote Management: Yes

Power Consumption: 84.0000W

Width: 11.80″

Height: 1.90″

Depth: 8.20″

Country of Origin: VN

Installation notes

Add up the power draw of the connected PoE cameras and confirm the total stays within the recorder's PoE budget before mounting them. Place the unit in a ventilated spot with room around it, and connect the HDMI monitor and cameras before powering on for commissioning.
