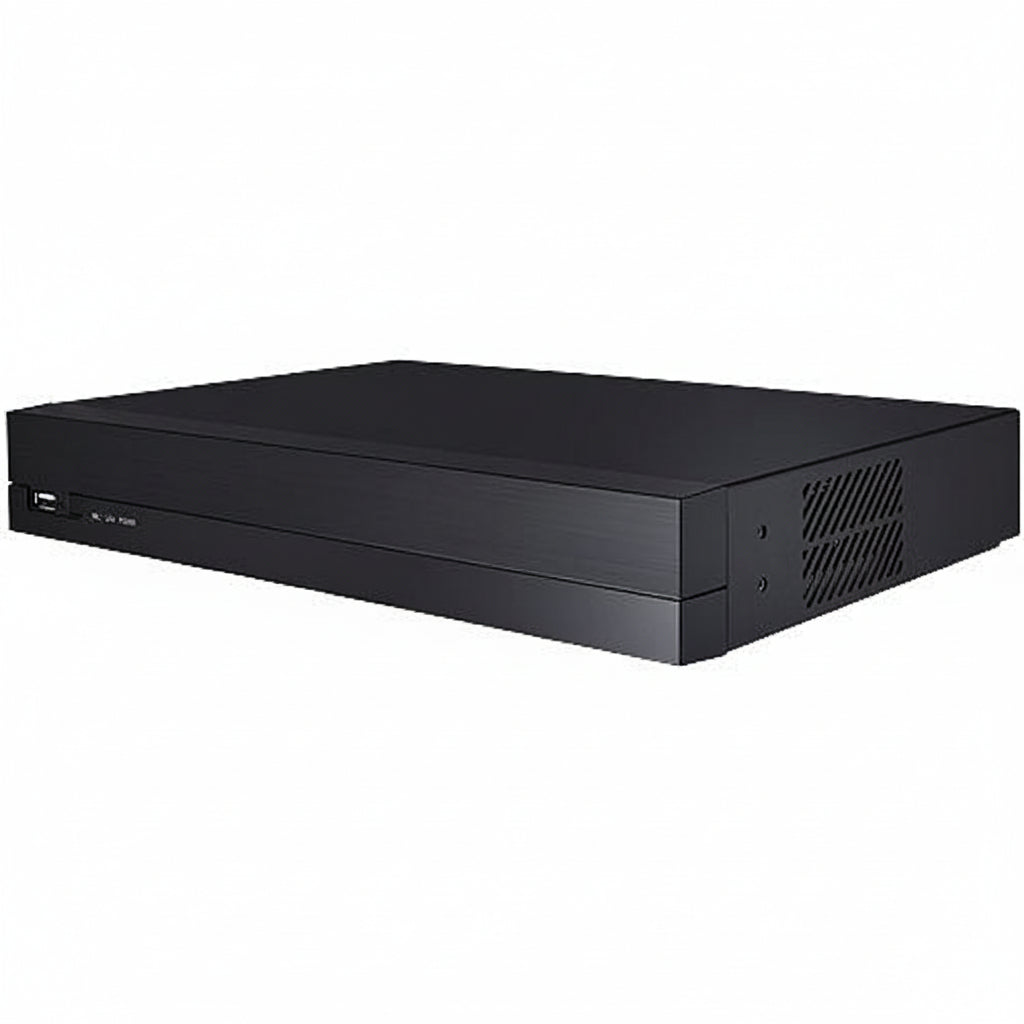

Hanwha ARN-810S A Series 8-Channel PoE NVR, 2TB HDD, Black

The Hanwha ARN-810S A Series (model ARN-810S-2TB) is an 8-channel PoE network video recorder that ships with a 2TB hard drive. It records and powers up to eight cameras from one unit, which suits small business and residential installs that want simple plug-and-play cabling. Its built-in PoE+ ports, 4K HDMI monitor output and QR-code remote connection keep setup straightforward.

Key features

• Supports up to 8 channels with cameras up to 8MP.
• Handles H.265, H.264 and MJPEG codecs.
• Records network camera streams at up to 60 Mbps.
• Eight PoE+ ports with a 65W budget let you connect cameras directly with no separate power supplies.
• Takes one HDD of up to 6TB, so storage can grow beyond the included 2TB.
• P2P service with QR code connection makes remote viewing easy to set up.

Specifications

Brand: Hanwha

Model: ARN-810S-2TB

Product series: A

Number of channels: 8

Effective camera resolution: 8MP

Recording formats: H.264

Video formats: MJPEG

Network camera recording: 60 Mbps

PoE: 8 PoE+ ports, 65W budget

Hard drive capacity: 2TB

Storage capacity: 2TB

Maximum drives: 1 HDD, up to 6TB

Video output: HDMI, 4K HDMI monitor out

Ethernet: Yes

USB ports: 1

Connectivity: Wired

Remote management: Yes

Maximum resolution: 1280 x 720

Maximum frame rate: 120fps

Power consumption: 84W

NDAA compliant: Yes

Color: Black

Dimensions (W x H x D): 11.8″ x 1.9″ x 8.2″

Weight: 2.31 lb

Installation notes

Place the recorder in a ventilated spot with room around it, and run each camera cable directly to a PoE+ port on the unit. Check that the total camera load fits within the PoE budget before commissioning, and confirm the drive is detected before you start recording.
