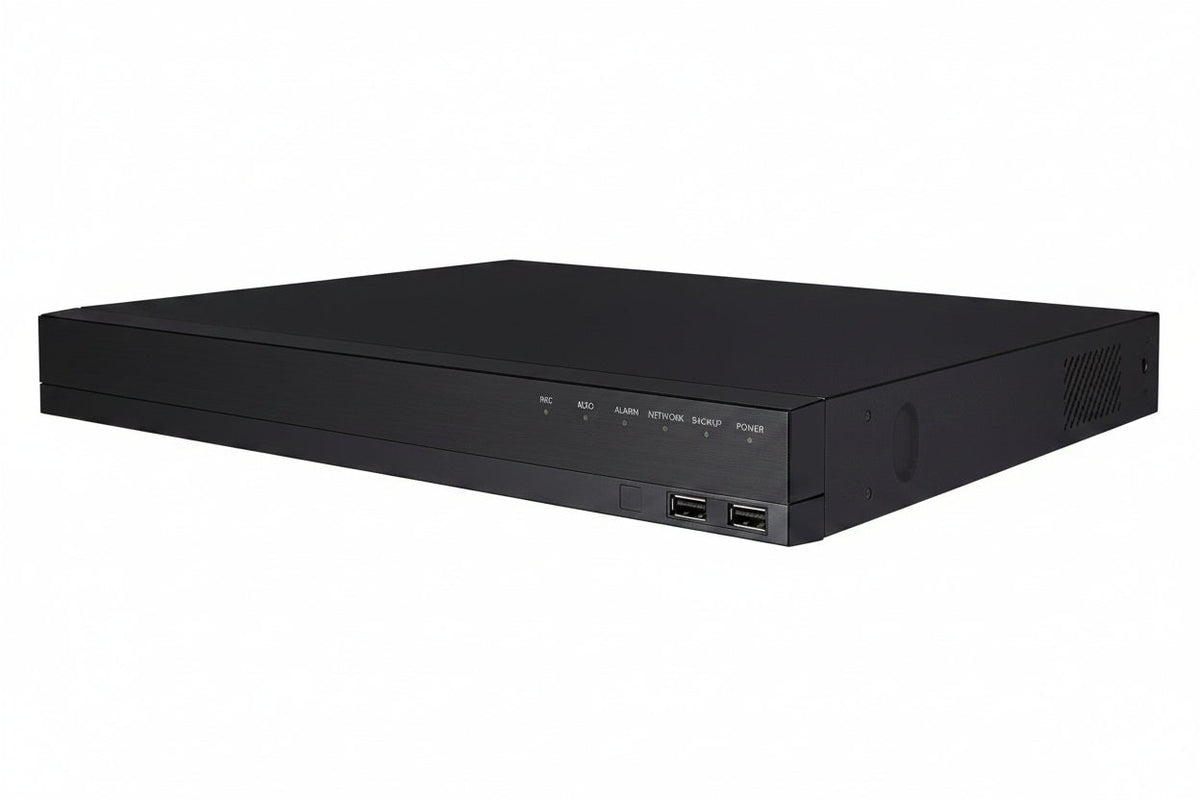

Hanwha ARN-1610S Series 16-Channel PoE NVR, 4TB, Black

The Hanwha ARN-1610S (model ARN-1610S-4TB) is a 16-channel PoE network video recorder that records and manages IP camera footage from a single box. It suits installers and business or home users who want cameras powered and connected directly through the recorder, with 4TB of storage included. Standout points are the 16 plug-and-play PoE ports, support for 8MP cameras, and NDAA compliance.

Key features

• Supports up to 16 channels with cameras up to 8MP.
• Records H.265, H.264 and MJPEG video, with network camera recording at 80Mbps.
• Sixteen PoE ports let cameras plug in and run without separate power.
• Holds up to two hard drives, each up to 6TB.
• Local viewing is available through HDMI or VGA monitor outputs.
• P2P service with QR code connection makes remote access simple.

Specifications

Brand: Hanwha

Model: ARN-1610S-4TB

Product Model: ARN-1610S

Product Type: Video Surveillance Station

Product Series: A

Number of Channels: 16

Effective Camera Resolution: 8MP

Maximum Resolution: 1280 x 720

Recording Formats: 4K

Video Formats: H.264

Maximum Frame Rate: 120fps

Hard Drive Capacity: 4TB

Storage Capacity: 4TB

Connectivity Technology: Wired

Ethernet: Yes

HDMI: Yes

Number of USB Ports: 1

Remote Management: Yes

NDAA Compliant: Yes

Color: Black

Width: 14.6″

Height: 1.7″

Depth: 12.6″

Weight: 6.35 lb

Power Consumption: 188W

Installation notes

Place the recorder on a shelf or in a rack with open airflow around it, and allow room at the rear for network, monitor and power cabling. Since the PoE ports power the cameras directly, keep camera cable runs within standard Ethernet limits and confirm each camera is detected before finalizing the setup.
