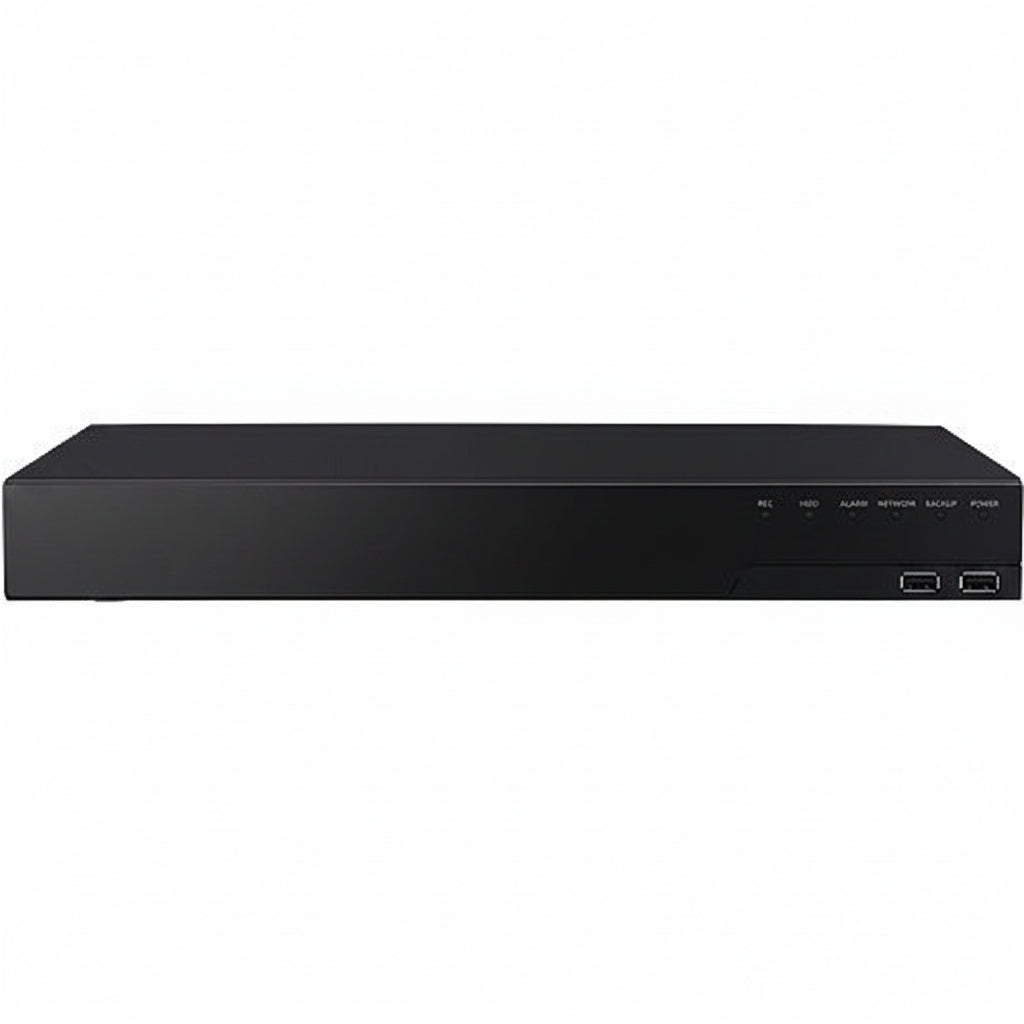

Hanwha ARN-1610S A Series 16-Channel PoE NVR, 80 Mbps, Black

The Hanwha ARN-1610S-4TB is a 16-channel PoE network video recorder that powers and records IP cameras over a single cable run, with a 4TB drive included. It suits installers and businesses building a wired surveillance system who want a tidy, plug-and-play setup. It records up to 80 Mbps from network cameras at up to 8MP, and it is NDAA compliant.

Key features

• Sixteen PoE ports let you connect and power cameras directly, with plug-and-play setup.
• It supports up to 16 channels at 8MP, with H.265, H.264 and MJPEG codecs.
• Network camera recording is rated at 80 Mbps.
• It holds up to two hard drives, each up to 6TB.
• Local viewing is available over HDMI or VGA.
• P2P service with QR code connection makes remote access simple.

Specifications

Brand: Hanwha

Model: ARN-1610S-4TB

Product Series: A

Number of Channels: 16

Effective Camera Resolution: 8MP

Maximum Frame Rate: 120fps

Video Formats: H.264

Hard Drive Capacity: 4TB

Storage Capacity: 4TB

Connectivity Technology: Wired

Ethernet: Yes

HDMI: Yes

Number of USB Ports: 1

Remote Management: Yes

NDAA Compliant: Yes

Power Consumption: 188W

Color: Black

Width: 14.6″

Depth: 12.6″

Height: 1.7″

Weight: 6.35lb

Installation notes

Place the recorder in a ventilated spot with room around it, and run each camera cable straight to its PoE port to keep the layout simple. Connect a local monitor to confirm every camera is recording before you leave the site.
