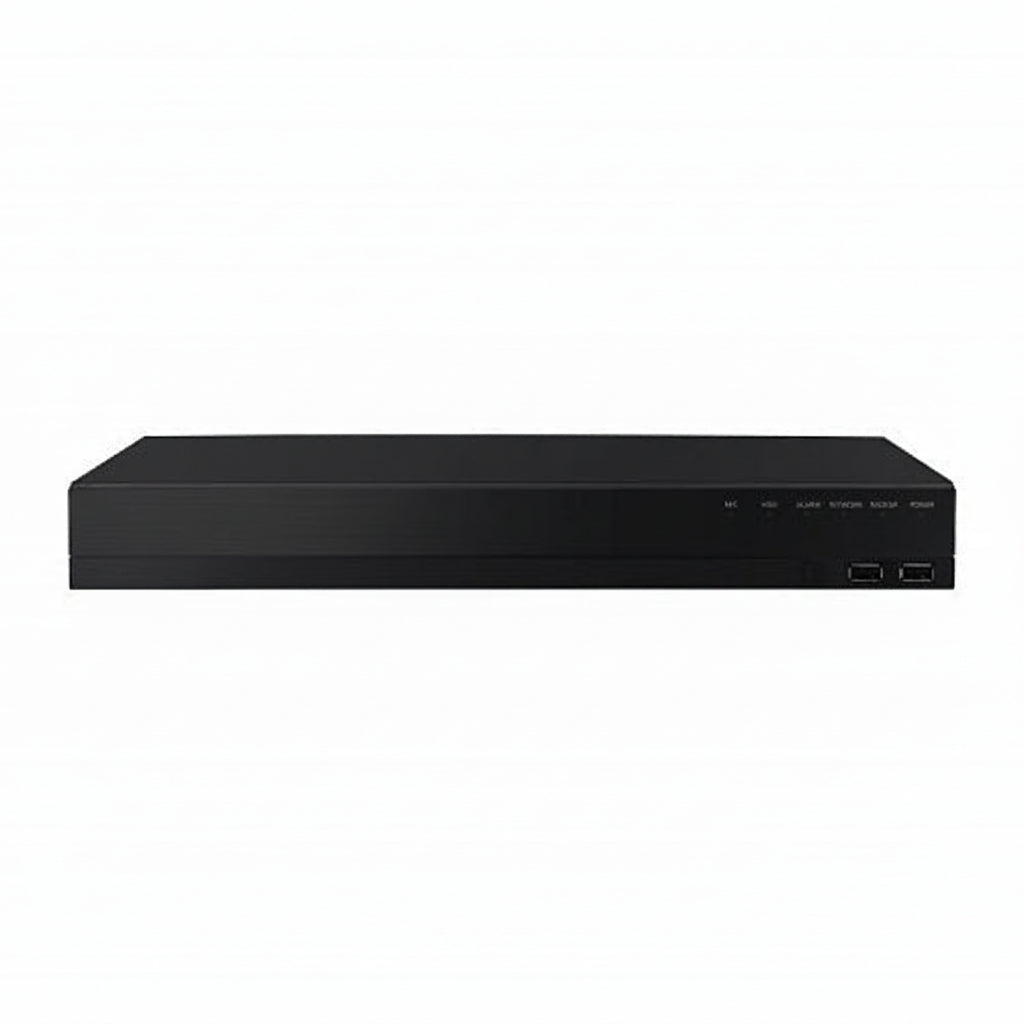

Hanwha ARN-1610S-6TB Wisenet A Series 16-Channel PoE NVR with 6TB Hard Drive

The Hanwha ARN-1610S-6TB is a 16-channel PoE network video recorder from the Wisenet A Series, supplied with a 6TB hard drive. It records up to 16 channels at 8MP and powers cameras directly from its 16 built-in PoE ports, which suits small and mid-sized business and residential systems. QR-code P2P setup for remote viewing and a local HDMI/VGA monitor output round out the package.

Key features

• Records up to 16 channels at 8MP resolution.
• Supports H.265, H.264 and MJPEG codecs.
• Handles 80 Mbps of network camera recording.
• Sixteen PoE ports allow plug-and-play camera connection.
• Takes up to two hard drives, each up to 6TB.
• P2P service with QR-code connection gives remote access through Wisenet Viewer and Wisenet Mobile.

Specifications

Brand: Hanwha

Model: ARN-1610S-6TB

Product Model: ARN-1610S

Product Series: A

Product Type: Video Surveillance Station

Number of Channels: 16

Effective Camera Resolution: 8MP

Maximum Resolution: 3264 x 2448

Maximum Frame Rate: 120fps

Video Formats: MJPEG

Features: Dual Stream Recording

Hard Drive Capacity: 6TB

Storage Capacity: 6TB

Connectivity Technology: Wired

Ethernet: Yes

HDMI: Yes

Remote Management: Yes

Power Consumption: 188W

Color: Black

Width: 14.6″

Height: 1.7″

Depth: 12.6″

Country of Origin: VN

Installation notes

Place the recorder in a ventilated, secure location, such as a rack or equipment shelf, with clearance around the unit for airflow, and allow for the 188W power draw when sizing the supply or UPS. Run each camera cable back to its own PoE port, then connect a monitor over HDMI or VGA to commission the system before setting up remote access.
