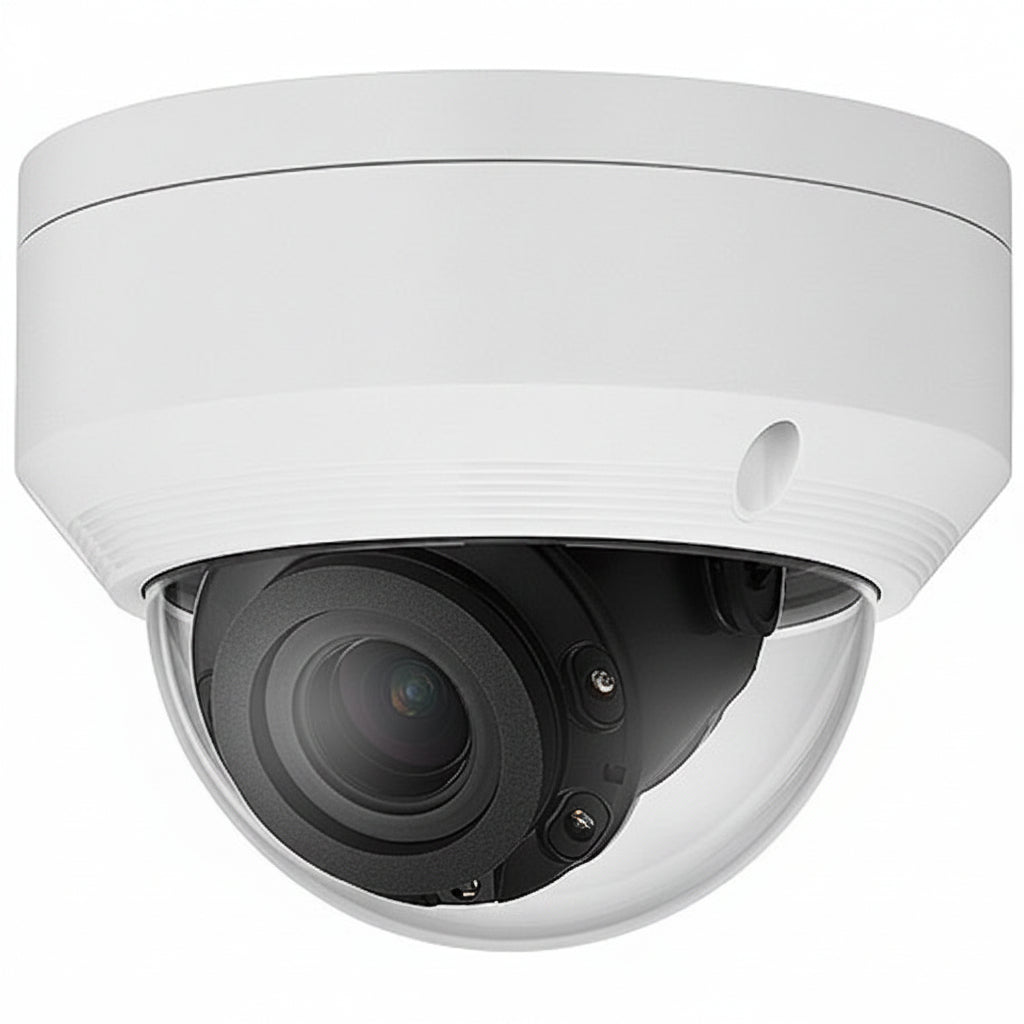

Hanwha ANV-L7082R A-Series 4MP WDR IR Dome IP Camera, 3.3-10.3mm Motorized Varifocal Lens, White

The Hanwha ANV-L7082R is a 4MP outdoor IR vandal dome network camera from the A-Series, in white. It covers entrances, hallways and perimeters with a 3.3-10.3mm motorized varifocal lens, so the field of view can be set from the network after mounting. It suits installers and businesses who need an impact-resistant, NDAA-compliant camera with night vision and onboard card storage.

Key features

• Records 4MP video at up to 30 fps and supports H.265, H.264 and MJPEG with multiple streams.
• The motorized varifocal lens with Simple Focus lets you adjust zoom and focus without touching the lens by hand.
• Built-in IR reaches 30m (98.42'), and Day and Night (ICR) with 120dB WDR helps in low light and high-contrast scenes.
• Analytics include defocus, directional and motion detection, enter/exit and tampering alerts.
• Hallway view (90°/270°), LDC support and WiseStream II suit corridor coverage and bandwidth management.
• An IP66 and IK10 rating, plus a microSD/SDHC/SDXC slot for cards up to 128GB, covers weather, impact and local recording.

Specifications

Brand: Hanwha

Model: ANV-L7082R

Product series: A

Product type: Network Camera (Vandal Dome)

Effective resolution: 4MP

Maximum video resolution: 1600 x 1200

Maximum frame rate: 30fps

Image sensor: CMOS

Lens type: Varifocal, included

Focal length: 3.3-10.3mm (minimum 3.30mm, maximum 10.30mm)

Aperture: f/1.6 maximum, f/3.3 minimum

Vertical field of view: 50.20°

Shutter speed: 1/12000 second (shortest) to 1/5 second (longest)

Wide dynamic range: Yes (120dB)

Night vision: Yes, infrared (IR), 98.43'

Video formats: H.264, H.265, MJPEG

Storage: Memory card, 1 slot, up to 128GB

Connectivity: Wired, RJ-45 network

Remote management: Yes

Indoor/outdoor: Outdoor

Ingress protection: IP66

Impact protection: IK10

Operating temperature: -22°F to 131°F

Operating humidity: 95%

Mount type: Backbox mount

Color: White

Diameter: 5.40″

Width: 4.92″

Height: 3.44″

Weight: 1.21lb

NDAA compliant: Yes

Country of origin: VN

Installation notes

Mount the camera to a solid surface with the backbox, and seal the cable entry so moisture stays out. Choose the viewing angle and set zoom and focus from the network after mounting, then check the image at night to confirm the IR coverage and make sure nothing close to the dome causes reflections.
