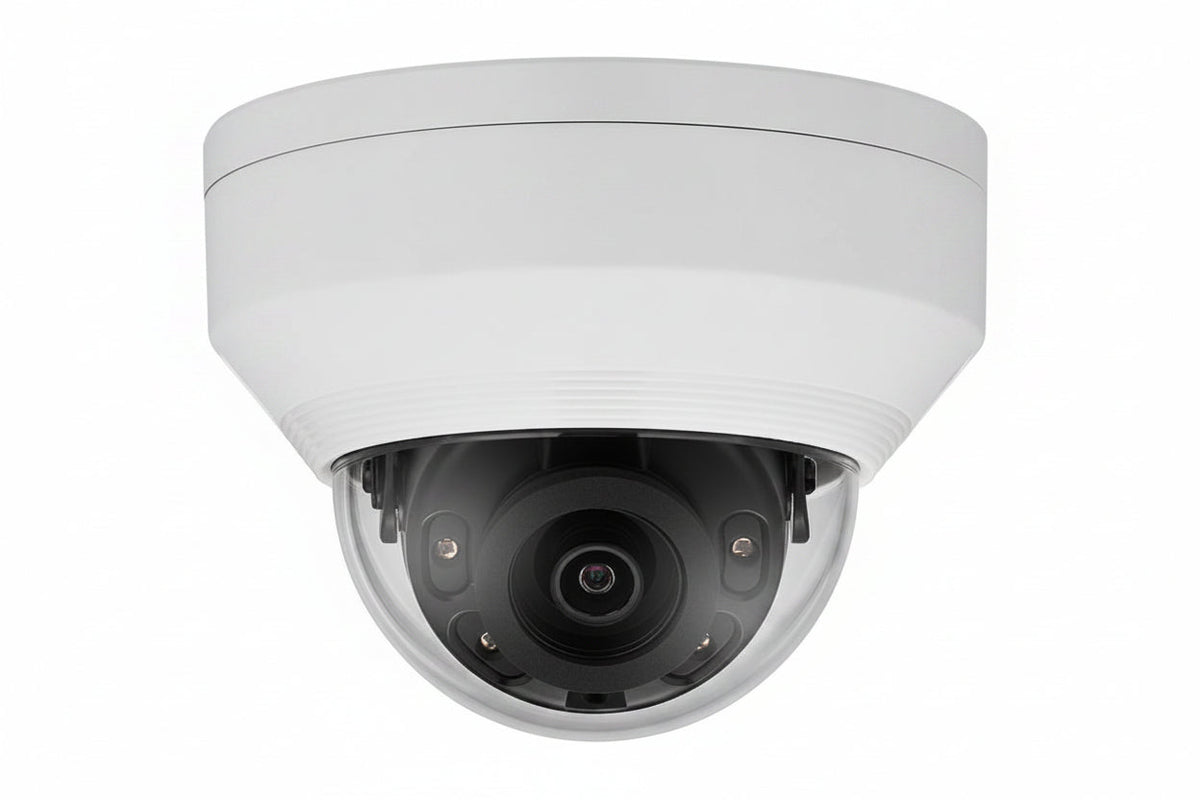

Hanwha ANV-L7012R A-Series 4MP Vandal Dome IP Camera, 3mm Fixed Lens, White

The Hanwha ANV-L7012R is a 4MP outdoor vandal dome IP camera from the A-Series, fitted with a 3mm fixed lens and built-in infrared for night viewing. It suits installers and businesses that need dependable coverage of entrances, hallways and perimeters, and its IP66 and IK10 ratings plus NDAA compliance make it a sensible fit for exposed or compliance-sensitive sites. Onboard analytics and a Micro SD slot let it detect events and record locally without extra hardware.

Key features

• Records 4MP video at up to 30fps using H.265 or H.264, with MJPEG and multiple streams also supported.
• Infrared LEDs give a viewable range of 20m in the dark, and the camera switches between day and night modes using an ICR filter.
• WDR at 120 dB helps keep detail visible in scenes with bright and dark areas together.
• Built-in detection covers defocus, direction, motion, enter/exit and tampering.
• Hallway view (90°/270°), LDC support and WiseStream II are included, and a Micro SD/SDHC/SDXC slot allows local storage.

Specifications

Brand: Hanwha

Model: ANV-L7012R

Product series: A

Product type: Network camera, vandal dome

Color: White

Effective resolution: 4MP

Image sensor: CMOS

Maximum frame rate: 30fps

Lens: 3mm fixed, f/1.6

Horizontal field of view: 107.5°

Vertical field of view: 54.2°

Minimum illumination: Color 0.1 Lux (F1.6, 1/30 sec); B/W 0 Lux (IR LED on)

Night vision: Infrared (IR), 20m (65.62′)

Wide dynamic range: Yes, 120 dB

Shutter speed: 1/12000 to 1/5 second

Storage: Micro SD/SDHC/SDXC memory card

Connectivity: Wired, RJ-45 network

Mount type: Backbox mount

Indoor/outdoor: Outdoor

Ingress protection: IP66

Impact protection: IK10

Operating temperature: -22°F to 131°F

Operating humidity: 95%

Diameter: 4.7″

Weight: 14.46oz

NDAA compliant: Yes

Country of origin: VN

Installation notes

This camera uses a backbox mount, so confirm the mounting surface and backbox are in place before fitting the dome, and seal the cable entry to maintain the weather rating outdoors. Aim the camera so the IR range is not blocked by nearby walls or soffits, and check the image at night during commissioning.
