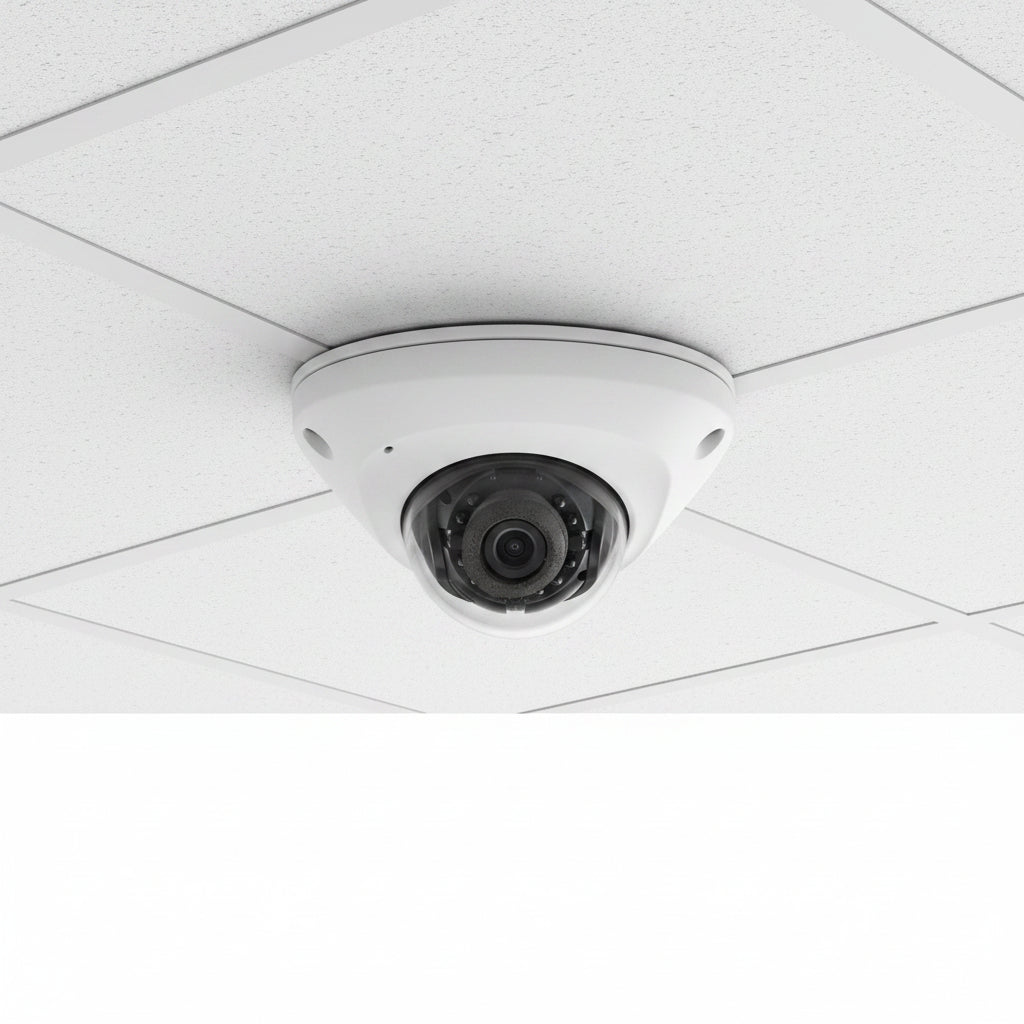

Hanwha ANV-L6023R Series 2MP Vandal Flateye Dome IP Camera, 3.6mm Fixed Lens, White

The Hanwha ANV-L6023R is a 2MP outdoor Flateye dome IP camera with a fixed 3.6mm lens and built-in infrared. It suits installers and businesses that need a vandal-resistant camera for hallways and similar narrow spaces, with onboard microSD storage. The IK10 impact rating, IP66 protection, and NDAA compliance are what set it apart.

Key features

• Records 2MP (1920 x 1080) video at 30 fps in H.265 or H.264, with MJPEG and multiple streaming also supported.
• The 3.6mm lens gives a 94.8° horizontal field of view, and Hallway View is supported.
• Day and night operation with an ICR filter and 120dB WDR helps in mixed lighting.
• Analytics include defocus, directional, and motion detection, plus enter/exit and tampering alerts.
• A microSD/SDHC slot (up to 32GB) provides local storage, and the camera is powered over PoE.
• Infrared reaches a viewable length of 15m, and the housing carries IP66, IK10, and NEMA4X support.

Specifications

Brand: Hanwha

Model: ANV-L6023R

Product type: Flateye Camera

Effective resolution: 2MP

Maximum video resolution: 1920 x 1080

Aspect ratio: 16:9

Maximum frame rate: 30fps

Image sensor: CMOS

Lens type: Fixed focus

Focal length: 3.6mm

Maximum aperture: f/2

Horizontal field of view: 94.8°

Vertical field of view: 49.30°

Shutter speed: 1/5 second to 1/12,000 second

Wide dynamic range: Yes

Night vision: Yes, infrared (IR)

Night vision distance: 49.21'

Video format: H.264

Storage: Memory card

Network: RJ-45, wired

Remote management: Yes

Form factor: Dome

Mount type: Wall mount

Indoor/outdoor: Outdoor

Ingress protection: IP66

Impact protection: IK10

Operating temperature: -22°F to 131°F

Operating humidity: 95% RH

Color: White

Weight: 0.65lb

NDAA compliant: Yes

Country of origin: VN

Installation notes

Plan the mounting spot and aim before drilling, since the lens is fixed and the field of view cannot be adjusted by zooming. Run a network cable to a PoE source, seal the cable entry against moisture, and confirm the image and microSD recording during commissioning.
