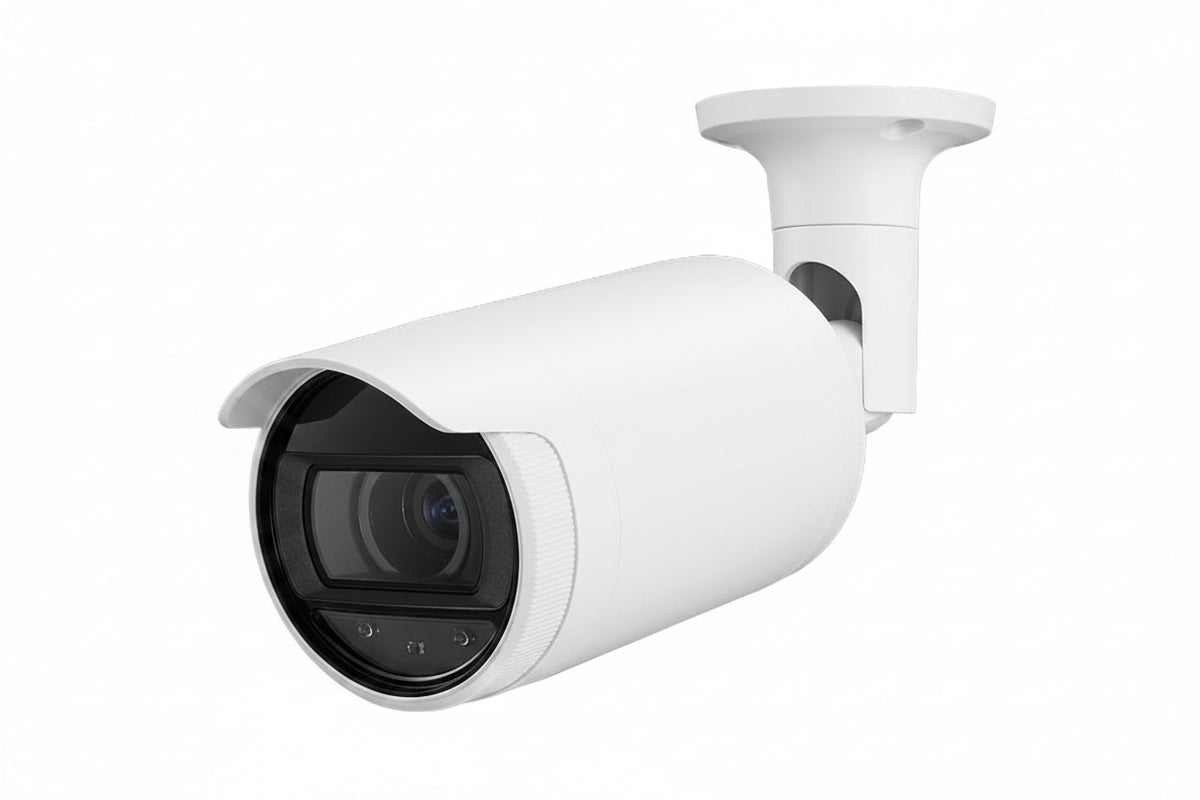

Hanwha ANO-L7082R A Series 4MP IR Bullet Camera, 3.3-10.3mm Varifocal Lens, IP66, White

The Hanwha ANO-L7082R is a 4MP infrared bullet network camera from the A Series, built for outdoor and low-light surveillance. It pairs a 3.3-10.3mm motorized varifocal lens with 30 m (98.42') of IR range and 120dB WDR, so it suits installers and businesses who need to frame a scene precisely and still get usable video at night or in high-contrast lighting. Onboard analytics, WiseStream II and a microSD slot add flexibility, and the camera is NDAA compliant.

Key features

• Records at 4MP resolution at up to 30 fps, with H.265, H.264 and MJPEG compression and multiple streaming.
• The motorized varifocal lens lets you adjust the field of view without changing lenses.
• Infrared LEDs give 0 Lux black-and-white night viewing out to 30 m (98.42'), and the camera switches between day and night with an ICR.
• Detection tools include defocus, directional, motion, enter/exit and tampering.
• Hallway view (90°/270°), LDC support and WiseStream II help with tall, narrow scenes and bandwidth use.
• A microSD/SDHC/SDXC slot (up to 128GB) allows onboard storage, and the IP66 housing is built for outdoor use.

Specifications

Brand: Hanwha

Model: ANO-L7082R

Product series: A

Product type: Network camera, bullet form factor

Effective camera resolution: 4MP

Maximum video resolution: 1600 x 1200

Maximum frame rate: 30fps

Aspect ratio: 16:9

Image sensor type: CMOS

Lens type: Varifocal, lens included

Focal length: 3.30mm to 10.30mm

Aperture: f/1.6 to f/3.3

Field of view (vertical): 50.20°

Minimum illumination: Color 0.1 Lux (F1.6, 1/30 sec); B/W 0 Lux (IR LED on)

Shutter speed: 1/12000 second to 1/5 second

Wide dynamic range: Yes (120dB)

Night vision: Infrared (IR), 98.43'

Video formats: H.265, H.264, MJPEG

Storage: Memory card, micro SD/SDHC/SDXC up to 128GB

Connectivity: Wired, network (RJ-45)

Mount type: Backbox mount

Ingress protection rating: IP66

Durability: Waterproof

Operating temperature: -22°F to 131°F

Operating humidity: 95%

Diameter: 3.10″

Weight: 13.76oz

Color: White

Remote management: Yes

NDAA compliant: Yes

Country of origin: VN

Installation notes

This camera uses a backbox mount, so plan the backbox and cable entry before mounting and seal any penetrations to keep the IP66 rating meaningful. Aim the camera and set the zoom and focus with the motorized lens once it is on the network, and check night-time framing so nearby surfaces do not reflect the IR illumination back into the lens.
