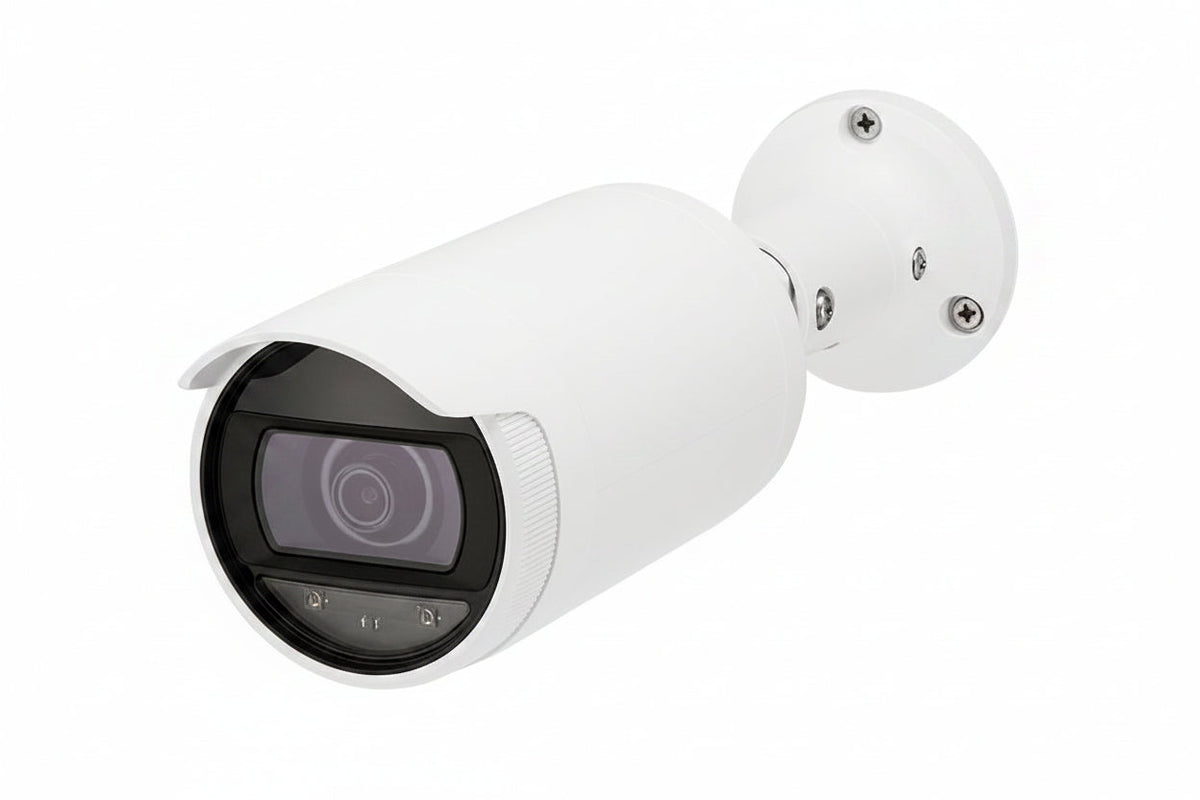

Hanwha ANO-L7022R A-Series 4MP Bullet Camera, 4mm Lens, White

The Hanwha ANO-L7022R is a 4MP outdoor IR bullet network camera from the A-Series, built for general-purpose video surveillance at entrances, perimeters and hallways. It pairs a fixed 4mm lens with 78.2° horizontal field of view, 25m of IR range and 120 dB WDR for scenes with mixed lighting. IP66 and IK10 ratings, plus a microSD slot for on-camera recording, make it a practical pick for installers and businesses covering exposed locations.

Key features

• Records 4MP video at up to 30fps using H.265 or H.264, with MJPEG and multiple streams also supported.
• Switches between color and black-and-white day/night modes, with IR LEDs for night viewing out to 25m.
• Offers defocus, directional, motion, enter/exit and tampering detection.
• Supports hallway view (90°/270°), lens distortion correction (LDC) and WiseStream II.
• Stores footage locally on a microSD/SDHC/SDXC card up to 128GB.
• Rated IP66 for dust and water resistance.

Specifications

Model: ANO-L7022R

Brand: Hanwha

Product series: A

Product type: Bullet Camera

Color: White

Effective resolution: 4MP

Maximum video resolution: 2560 x 1440

Maximum frame rate: 30fps

Aspect ratio: 16:9

Image sensor: CMOS

Lens type: Fixed focus

Focal length: 4mm

Maximum aperture: f/1.6

Horizontal field of view: 78.2°

Vertical field of view: 42.90°

Minimum illumination: Color 0.1Lux (F1.6, 1/30sec), B/W 0Lux (IR LED on)

Shutter speed: 1/12,000 second to 1/5 second

Wide dynamic range: Yes (120 dB)

Night vision: Infrared (IR), 82.02′ (25m)

Video formats: H.265, H.264, MJPEG

Storage: Memory card (microSD/SDHC/SDXC, max. 128GB)

Network: RJ-45, wired

Remote management: Yes

Mount type: Backbox mount

Indoor/outdoor: Outdoor

Ingress protection: IP66

Impact protection: IK10

Operating temperature: -22°F to 131°F

Operating humidity: 95% RH

Diameter: 3.07″

Weight: 0.86lb

Country of origin: VN

Installation notes

Aim the camera before final tightening and check the image at night, since IR reflection from nearby walls, soffits or glass can wash out the scene. Seal the cable entry and any connections to keep the IP66 rating intact, and format the microSD card in the camera if you plan to use onboard recording.
