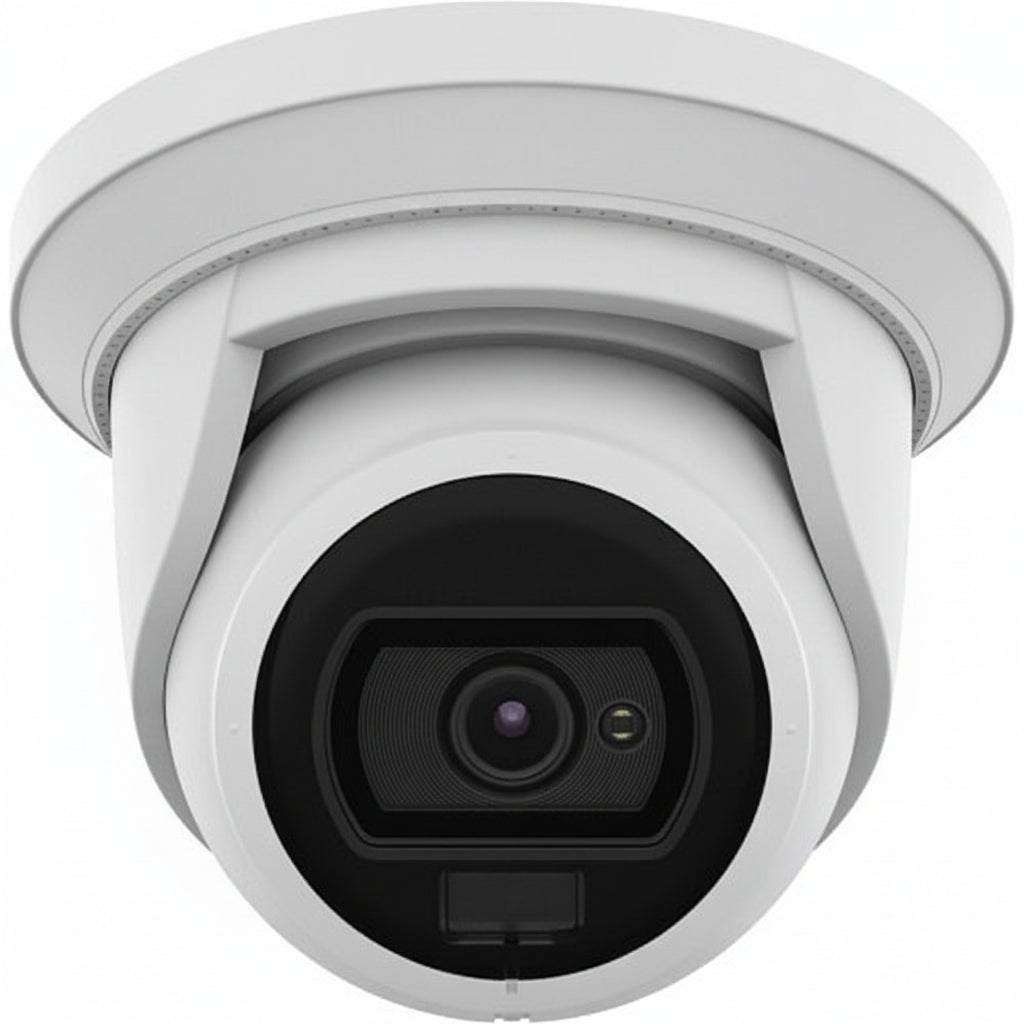

Hanwha ANE-L7012L Wisenet A Series 4MP Super-Compact White Light Flateye Camera, 3mm Lens, IP66, IK10

The Hanwha ANE-L7012L is a 4MP Wisenet A Series Flateye camera in a white, turret-style housing with a built-in 3mm fixed-focus lens. It handles remote surveillance over a wired network connection and suits installers and businesses that need an impact-resistant, weather-rated camera for outdoor or exposed locations. Its IP66 and IK10 ratings, f/1.2 aperture and wide dynamic range are what stand out.

Key features

• Suited to remote surveillance over a wired network connection.
• The 3mm lens gives sharp output that helps identify and locate objects.
• The fixed lens compensates for changing light by adjusting exposure time or using gain.
• It runs on PoE, so power and data can share one network connection.
• It works with a Video Management System for centralized handling.
• IP66 ingress protection and an IK10 impact rating suit it to demanding sites.

Specifications

Brand: Hanwha

Model: ANE-L7012L

Product Series: Wisenet A

Product Type: Flateye Camera

Color: White

Form Factor: Turret

Effective Camera Resolution: 4MP

Maximum Video Resolution: 2560 x 1440

Maximum Frame Rate: 30fps

Image Sensor Type: CMOS

Video Formats: MJPEG

Lens Type: Fixed Focus

Lens Included: Yes

Focal Length: 3mm

Maximum Aperture: f/1.2

Field of View (Horizontal): 97.0°

Field of View (Vertical): 53.00°

Built-in Lens Field of View: H 98.3° / V 54.2°

Minimum Illumination: 0.0500 lux

Shutter Speed: 1/12,000 second to 1/5 second

Wide Dynamic Range: Yes

Connectivity Technology: Wired

Power Source: PoE

Storage Type: SD Card

Remote Management: Yes

Durability: Impact Resistant

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Operating Temperature: -22°F to 131°F

Operating Humidity: 0-95% RH

Diameter: 4.92″

Weight: 1.37 lb

Country of Origin: VN

Installation notes

Because the lens is fixed, aim and position the camera before final mounting so the 3mm field of view covers the target area. Run a single network cable from a PoE source, and seal the cable entry to keep the weather-rated housing protected.
