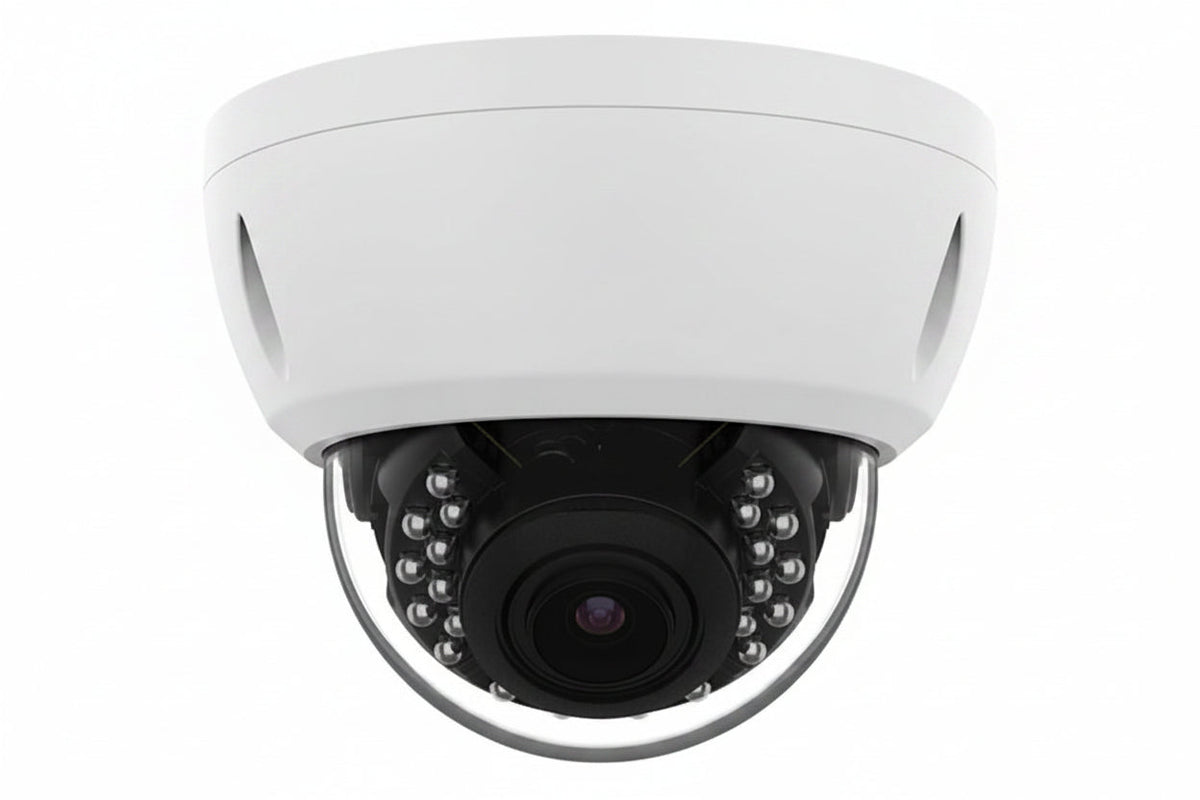

Hanwha ACV-8080R A-Series 5MP IR Vandal Dome Camera, 3.5-10.5mm Lens

The Hanwha ACV-8080R is a 5MP outdoor vandal dome network camera from the A-Series, built for remote surveillance. It has a 3.5-10.5mm varifocal lens with 3x optical zoom and infrared night vision, and it suits installers and businesses that need a tough, ceiling-mounted camera that can be aimed and framed on site. The IK10 impact rating and IP66 ingress rating make it a good fit for exposed locations.

Key features

• The varifocal lens with 3x optical zoom lets you adjust the field of view to suit the scene.
• Built-in infrared night vision captures footage without any external light source.
• Digital Wide Dynamic Range (D-WDR) helps with scenes that mix bright and dark areas.
• Remote management support suits remote surveillance needs.
• The ceiling mount design and 12V DC power input keep the setup simple.
• Wired connectivity delivers the video feed over a cabled connection.

Specifications

Brand: Hanwha

Model: ACV-8080R

Product Series: A

Product Type: Network Camera

Form Factor: Dome

Effective Camera Resolution: 5MP

Maximum Video Resolution: 1600 x 1200

Maximum Resolution: 1280 x 720

Maximum Frame Rate: 30fps

Analog Video Signal Format: AHD

Lens Type: Varifocal

Lens Included: Yes

Focal Length: 4.3-10.5mm

Minimum Focal Length: 3.50mm

Maximum Focal Length: 10.50mm

Optical Zoom: 3.0x

Night Vision: Yes

Night Vision Type: Infrared (IR)

Night Vision Distance: 65.62'

Features: Day/Night

Indoor/Outdoor: Outdoor

Ingress Protection Rating: IP66

Impact Protection Rating: IK10

Durability: Impact Resistant

Mount Type: Ceiling Mount

Input Voltage: 12V DC

Connectivity Technology: Wired

Remote Management: Yes

Color: White

Country of Origin: KR

Installation notes

Mount the camera on a solid surface and seal any cable entry points so the outdoor ratings are not undermined. Set the varifocal lens while viewing the live image, and check the picture at night to confirm the IR output is not washing out on nearby surfaces.
