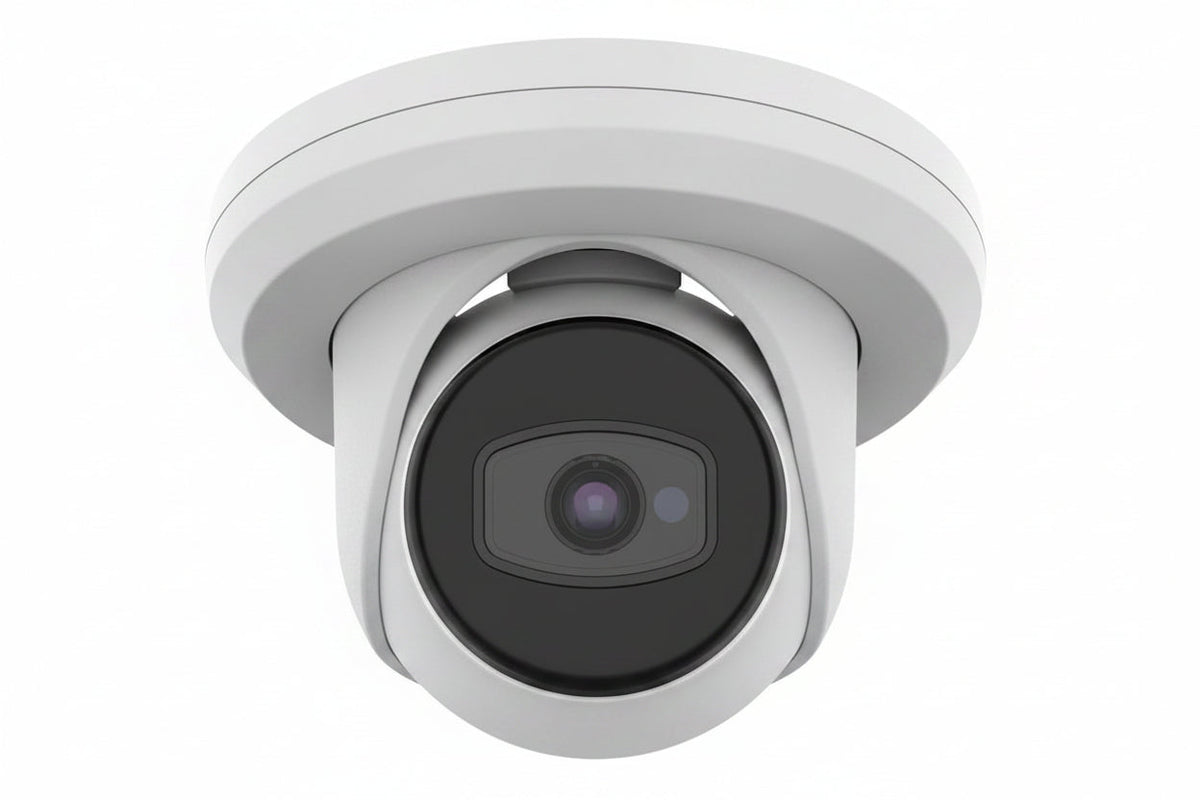

Hanwha ACE-8020R Wisenet Series 5MP Turret Camera with Day and Night Sensor and IP67, IK10 Protection, 3.6mm Fixed Focal Lens, White

The Hanwha ACE-8020R is a 5MP Wisenet turret camera in a white, flat-eye housing that records over wired AHD analog HD. It suits installers and businesses who need day and night coverage outdoors, where weather and impact resistance matter. The IP67 and IK10 ratings, along with infrared night vision and a fixed 3.6mm lens, are what stand out.

Key features

• Delivers up to 5MP resolution at up to 20 fps.
• Switches between day and night operation.
• Infrared illumination reaches 20m in the dark.
• Uses a fixed 3.6mm focal length lens.
• Rated IP67 for ingress protection and IK10 for impact resistance.

Specifications

Brand: Hanwha

Model: ACE-8020R

Product Type: Flateye Camera

Product Series: A

Color: White

Analog Video Signal Format: AHD

Connectivity: Wired

Effective Camera Resolution: 5MP

Maximum Video Resolution: 2592 x 1944

Image Sensor Type: CMOS

Lens Type: Fixed Focus

Focal Length: 3.6mm

Maximum Aperture: f/1.6

Field of View: H 94° / V 54°

Shutter Speed: 1/30 second to 1/50,000 second

Night Vision: Yes, Infrared (IR)

Night Vision Distance: 65.62 ft (20m)

Ingress Protection Rating: IP67

Impact Protection Rating: IK10

Mount Type: Backbox Mount

Input Voltage: 12V DC

Operating Temperature: -22°F to 131°F

Operating Humidity: 0-90% RH

Diameter: 4.72″

Weight: 0.90 lb

Remote Management: Yes

Country of Origin: KR

Installation notes

This camera mounts to a backbox, so confirm the mounting surface and cable entry suit the backbox before drilling. It runs on 12V DC over a wired connection, so check the supply and cable run before final aiming, and set the view with the 3.6mm fixed lens in mind.
